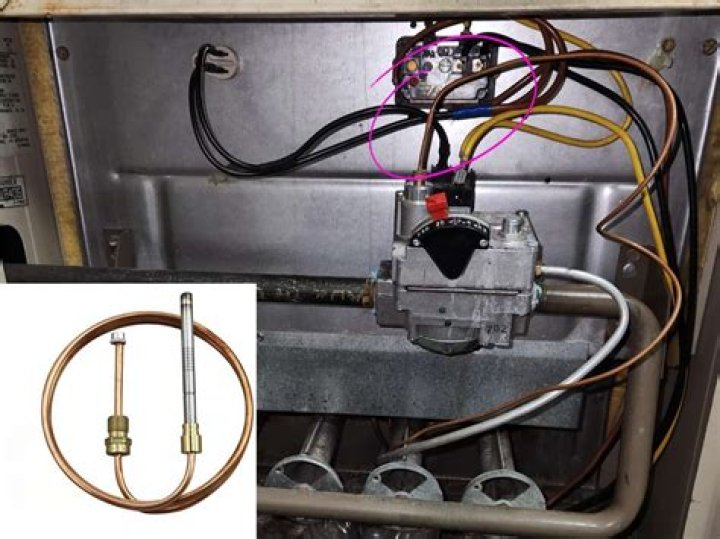

Locate the copper-tubed thermocouple that is attached to the regulator valve. The tube trails into the oven body and is attached to the regulator valve by a small nut. Unscrew the nut with a small adjustable wrench. Pull the copper tube out from the regulator valve.

Is there a thermocouple on a gas stove?

The thermocouple on a gas oven is used to sense temperature changes. It acts as a safety device when you are trying to use your gas, preventing your oven from flooding burners with too much gas and creating potential combustion problems. Thermocouples are parts of ignition systems and pilot lights.

How do you replace a thermocouple on a gas stove?

  1. Open the Access Cover. Remove the furnace’s access cover. …
  2. Remove the Old Thermocouple. Using an open-end wrench, unscrew the nut that holds the thermocouple end fitting into the gas control valve. …
  3. Install the New Thermocouple. …
  4. Connect the Gas. …
  5. Turn On the Gas and Power.

How do you clean a thermocouple on a gas stove?

The best way to clean your thermocouple is to use either a piece of steel wool or the coarse side of a sponge to gently clean off any soot or other remnants. You can use a pencil eraser to clean between the threads of the screw that connects the thermocouple to the control valve of your system.

Where is the thermocouple in the oven?

An oven thermocouple is a small probe that terminates directly over the opening of the pilot assembly. A tube protecting two wires leads from the probe to the top of a safety valve, mounted on the gas line between the oven thermostat and the pilot assembly.

How do you know if you have a bad thermocouple?

If you can’t get the flame to light at all, and you’re sure the gas is on, there’s probably an obstruction in the pilot tube. If the flame lights and goes out when you release the gas control knob after holding it in for the recommended 20 to 30 seconds, that’s the sign of a thermocouple malfunction.

Are all gas thermocouples the same?

From an operational perspective the thermocouples for a water heater are all pretty much the same. However, there are two variables, the length and the fittings used to install them, see below. A failing thermocouple will not send the correct electrical impulse and the gas valve will not release any gas.

How much does it cost to replace thermocouple?

It costs $150 to $250 to replace a thermocouple. It checks to make sure the pilot light is on. It will shut the gas off if it’s not.

Does cleaning a thermocouple help?

Yes, you can clean a thermocouple, but the task must be done with a light touch. Remove the thermocouple from the process assembly, using a steel wool or emery cloth, lightly clean the tip removing any build up. Cleaning a thermocouple is not a fix for an issue, such as inaccurate readings.

Can I replace a thermocouple myself?

The No. 1 cause of pilot lights that won’t stay lit is a worn-out thermocouple. It’s easy to replace and a new one costs $5 to $10. Rather than trying to unfasten the thermocouple inside the water heater’s burning chamber, it’s easier to remove the whole burner and thermocouple assembly.

Article first time published on

Why does my gas stove not stay lit?

The most common cause of this is dirty or blocked burners, which is the part that you can easily take off to clean. All the small holes on the burner should be clean and clear, if not then even a partial blockage can lead to the thermocouple not getting enough heat and, the burner won’t stay lit.

Can you fix thermocouple?

Thermocouples are designed to detect a pilot light’s loss of heat and close the gas valve to prevent a gas leak. Replacing a thermocouple is a relatively easy fix that can take less than two hours.

How do you remove a thermocouple from an oven?

Determine which type you have by looking at the base of the clip. Use a flashlight to fully illuminate the area. If no screws are present, pull the thermocouple head up and out. If screws are present, unscrew the screws with a small screwdriver, then pull both the clip and the thermocouple head out of the oven.

Are all oven thermocouples the same?

Amazon.com: Oven Thermocouple : Appliances. You can find your product’s model number on a plate affixed to the product or in the owner’s manual. Even though parts may look the same, there are often variances in similar parts and it is important to buy parts that fit your specific model.

What causes a thermocouple to go bad?

Changes in temperature can cause regular expansion and contraction in metal, which will cause thermocouples to weaken over time. After enough time, metal fatigue can cause a thermocouple to break. … If thermocouples start to give out unusual readings, it may be suffering from metal fatigue.

What does a thermocouple do in an oven?

The thermocouple is a special safety device that is designed to detect whether or not your kitchen oven’s pilot light is lit. It is a metal rod that is positioned very near the flame of the oven’s pilot light.

Can I bypass a thermocouple?

Can You Bypass Thermocouples on Patio Heaters? Constant heat supply ensures that your patio heater pilot light is lit at all times. If your unit is receiving no heat, this won’t be so. To temporarily sort the situation, you can bypass thermocouples until you have funds to replace them.

Do Thermopiles go bad?

Like the other component parts in your furnace, the thermocouple can wear down over time, producing lower voltage than it should when heated. And the worst part is that you can have a bad thermocouple without even knowing. Therefore, inspecting and testing your thermocouple should be part of your furnace maintenance.

How do I know if my thermocouple is bad on my gas fireplace?

The Fix: Pilot Light to Gas Fireplace Won’t Stay Lit So you’ve checked your pilot light and even reset it, but still, it wont stay lit. This can be an indication that your fireplace thermocouple is either bad or worn out.

What does it mean if the pilot light keeps going out?

A faulty, misaligned, dirty, or damaged thermocouple is often the culprit behind your pilot light going out. The thermocouple is an automatic safety shutoff device that prevents the gas valve from opening if the pilot light is out.

What do thermocouples do?

A thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature.
