Where is the fuel pump on a 7.3 Powerstroke Diesel

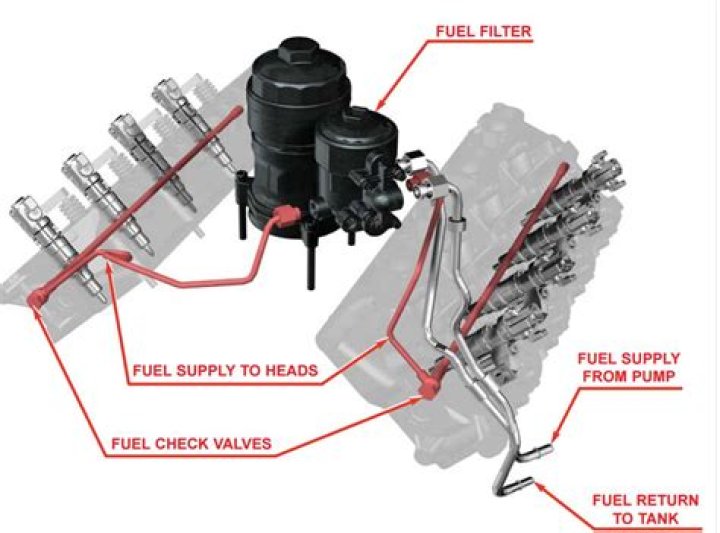

The fuel pump on all 7.3L Power Strokes is located in the engine valley just in front of the turbocharger.

Where is the diesel fuel pump located?

Modern gas engines will have a fuel pump located inside the gas tank. To replace the fuel pump, an access port is usually fitted on the trunk floor or under the rear seat. Diesel-fueled engines will likely have two fuel pumps fitted: a lift pump fitted inside the fuel tank and a high-pressure pump fitted at the engine.

Where is the fuel lift pump?

On most late-model diesel vehicles, the lift pump (if the system has one) is a small electric motor-driven device mounted either in the fuel tank or on the fuel rail.

What are the symptoms of a bad lift pump on a diesel?

The engine stalls. …
The engine overheats. …
You’re hearing weird noises.

How do you turn up the fuel pump on a 7.3 Powerstroke?

Disconnect the battery from the engine. …
Locate the injection pump at the front of the engine. …
Align the engine so the adjustment screw can be accessed. …
Insert an Allen head wrench into the top of the adjustment screw and turn the screw one quarter turn clockwise.

Where is the fuel pump reset button?

The fuel pump shut-off switch is located behind an access panel on the right side of the luggage compartment. The fuel pump shut-off switch has a red reset button on top of it.

What problems does the 7.3 Powerstroke have?

Some of the most common 7.3 Powerstroke engine issues include: Turbocharger Up-Pipe Leaks Have Become Significantly Common. The Diesel Fuel Filter Can End Up Becoming Clogged. Failure Of The Injector Pressure Regulator Is Something To Worry About.

How can I check my fuel pump?

Listen for the fuel pump: Put your ear near the fuel tank and have an assistant turn the ignition key to the “on” position. The fuel pump should make an audible noise if it’s working properly. Whack the fuel tank: Have an assistant crank the engine while you hit the fuel tank with a rubber mallet.

How do I know if my fuel pump fuse is blown?

Check Engine Light (CEL) Illuminated. …
High Mileage. …
Long Starting Time. …
Engine Performance Issues – Stalling, Idling, Acceleration, Not Starting. …
Car dies while driving. …
Silent Fuel Pump Noise. …
Park the car in safe and level ground.

What happens when a lift pump goes out?

If the electric lift pump doesn’t come on, or doesn’t pump fuel into the filter bowl when you click the key to the “start” and release it to the “run” position, you can bleed the system to get fuel to the VP44 and get the engine to run again by pressurizing the fuel tank with air pressure, or diagnosing the electric …

Article first time published on

What causes a lift pump to fail?

Fuel pump failures can be caused by electrical faults, old age (wear) or fuel contaminants (dirt, moisture or bad gas). Fuel pump failures often occur without warning. Fuel pump failures can be caused by electrical faults, old age (wear) or fuel contaminants (dirt, moisture or bad gas).

What does lift pump to diesel?

What They Do. The job of a lift pump is to supply low pressure fuel (from the tank) to the injection pump on the engine. Most lift pumps, aftermarket or OEM, provide between 8-to-15 psi worth of supply pressure (aside from the 7.3L, 6.0L and 6.7L Power Stroke engines, which call for 45-to-65 psi).

Is a lift pump and fuel pump the same thing?

Modern fuel pumps allow automobiles to operate at higher speeds and improve fuel economy in cooperation with a fuel injection system. Lift pumps add to that system by helping raise the level of fuel into the engine block by creating suction and managing air flow.

Do all diesels have a lift pump?

Virtually every diesel has a lift pump of some sort, from the old mechanical injection systems, to Ford’s HEUI system, to newer common-rail rigs. Even engines like GM’s Duramax actually use a factory lift pump built inside the engine’s high-pressure CP3 pump to draw fuel from the tank.

Does a diesel need a lift pump?

In any instance where you hope to push your vehicle beyond the stock limits of its power, a lift pump is advised. After all, the injection pump and injectors are the most important components of a diesel engine. With a lift pump, you can supply your engine with bubble-free and purer fuel.

How do I know if my 7.3 IPR valve is bad?

A key indicator of a bad IPR valve is low injection pressure. Symptoms of a bad 7.3 Powerstroke IPR can range from running very rough to a no start situation. The symptoms can sometimes feel like you have multiple bad injectors, among other things. You can easily and inexpensively resolve this problem.

How many miles will a Ford 7.3 diesel last?

Robust, iron parts, conservative power and low engine speed are the key ingredients for any diesel engine lasting forever—and if a 7.3L has gone unmodified yet been well maintained its entire life, 400,000 to 500,000 miles is virtually guaranteed.

Can you bulletproof a 7.3 Powerstroke?

The 7.3L Powerstroke is considered by many to be indestructible! Even as bulletproof as 7.3L can be, lack of proper maintenance and stupid mistakes can be the undoing of this of this endurance diesel engine platform.

How cold will a 7.3 start?

A healthy 7.3 was designed to start unassisted down to -30C and I’ve personally started mine down even lower. The glowplugs stay on long after the Wait to Start light has gone off. In winter temperatures they will stay on up to 2 minutes.

Where is the fuel pump control module?

The module is typically installed on or very close to the fuel pump, and in the early years of the component’s use, this practice led to a design fault. Manufacturers, including Ford, initially placed the module inside the vehicle immediately above the fuel pump, typically just beneath the floor pan.

Can a vehicle run without a fuel pump?

Without a fuel pump, the engine wouldn’t get a fuel delivery, which is proven when a fuel pump isn’t working. This will either cause your car to stall where it sits or you’ll have poor fuel mileage, an indication that possible fuel pump repair or replacement is necessary.

How do I know if my fuel pump control module is bad?

Engine won’t start. Your engine won’t run without fuel. …
Difficulty starting. …
Stalling. …
Poor performance. …
Check engine light. …
Abnormal noise. …
Restricted fuel filter. …
Dirt and debris.

What are the signs you need a new fuel pump?

Engine Stuttering. One of the clearest indications that your vehicle’s fuel pump isn’t working as it should is an engine jolts and stutters while you drive at a steady speed. …
Engine Surges. …
Reduced Fuel Efficiency. …
High-Pitched Noises. …
Engine Won’t Start.

How do you test a diesel fuel pump?

– Use a fuel pressure gauge: Attaching a fuel pressure gauge to the pulse hose coming out of your fuel pump will help you show if your fuel pump is putting out the right pressure. Any reading below your manufacturer’s specifications means you probably have a defective fuel pump diaphragm or check valve.

How do you fix a fuel pump without replacing it?

Use Fuel Pressure Gauge. This can be one of the best alternative solutions when you are concerned with the various ways to deal with a bad fuel pump to start your car. …
Applying Some External Pressure. …
Maintaining The Engine’s Heat.

Do diesel trucks have fuel pumps?

On modern high-speed diesel engines, a fuel transfer pump is normally used. This pump, driven by the engine, supplies fuel automatically to the diesel injection system. The pump often has a hand primer lever for bleeding air from the system.

Can you have too big of a fuel pump?

Too big of a cam for your combination will cause a loss of low end torque and make drivability suffer. Such is the case with fuel pumps, to some degree. … This causes fuel pressure to build up to the level that the regulator was designed to maintain. Eventually, all unused fuel is returned to the tank.

How much pressure does a diesel injector pump put out?

*A major problem for fuel injection systems is not getting a dribble at the end of the injection. Even a small extra drip would throw off the combustion cycle. *In today’s diesel engines, fuel leaves the injector at 30,000 psi.

Will a gas fuel pump work for diesel?

No. The pressure isn’t correct for diesel use. Pressure on a gasoline/petrol pump will be 2–5 bars (approx 30–75 PSI). Most modern automotive diesels use a dual pump system.

What is a facet fuel pump?

The solid state fuel pumps from Facet are a compact design for use with carburettor equipped engines or as a supply pump to a fuel swirl pot. … Ideal for road cars with engines sizes up to 1600cc. FAST ROAD – A 12 volt negative earth pump with a flow rate of 26 gallons per hour and a delivery pressure of 4-7 Psi.
