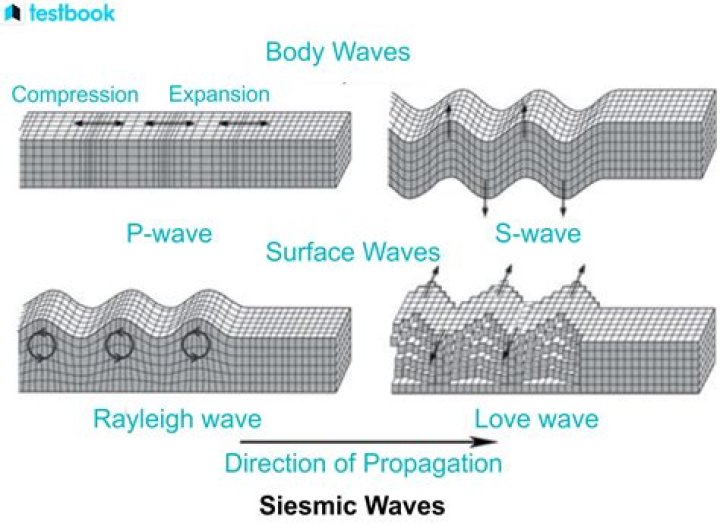

Seismic P waves are also called compressional or longitudinal waves, they compress and expand (oscillate) the ground back and forth in the direction of travel, like sound waves that move back and forth as the waves travel from source to receiver.
What is the motion of S waves?
S waves produce vertical and horizontal motion in the ground surface. Particle motion consists of alternating transverse motion. Particle motion is perpendicular to the direction of propagation (transverse). Transverse particle motion shown here is vertical but can be in any direction.
What type of wave is P waves?
A P wave (primary wave or pressure wave) is one of the two main types of elastic body waves, called seismic waves in seismology. P waves travel faster than other seismic waves and hence are the first signal from an earthquake to arrive at any affected location or at a seismograph.
Do P waves move parallel or perpendicular?
The P wave propagates at ~6 km/sec in rock with particle motions that are parallel to the direction of propagation. The S wave is slower at 4 km/sec and propagates with particle motions that are perpendicular to the direction of propagation.Do P waves have vertical movement?
The different particle motion style is because each seismic wave has its characteristic movement: P waves are compressive and travel upward through the body of the earth, so have a strong vertical component.
What is secondary wave motion?
The S-wave (secondary or shear wave) follows more slowly, with a swaying, rolling motion that shakes the ground back and forth perpendicular to the direction of the wave.
What is the movement of secondary waves P waves?
P waves can travel through solids, liquids, and even gases. S waves shake the ground in a shearing, or crosswise, motion that is perpendicular to the direction of travel. These are the shake waves that move the ground up and down or from side to side.
Are P waves transverse or longitudinal?
The P seismic waves travel as elastic motions at the highest speeds. They are longitudinal waves that can be transmitted by both solid and liquid materials in the Earth’s interior.Where do P waves travel through?
In a P wave, the rock particles are alternately squished together and pulled apart (called compressions and dilatations), so P waves are also called compressional waves. These waves can travel through solids, liquids, and gases. P waves can travel through the liquid outer core. An S wave is a different beast.
Where do P waves travel the fastest?Sound waves are P-waves moving through the air. Because the earth’s mantle becomes more rigid and compressible as the depth below the asthenosphere increases, P-waves travel faster as they go deeper in the mantle. The density of the mantle also increases with depth below the asthenosphere.
Article first time published onHow do you describe P waves?
A P wave, or compressional wave, is a seismic body wave that shakes the ground back and forth in the same direction and the opposite direction as the direction the wave is moving.
Why is it called P wave?
The P wave indicates atrial depolarization. The P wave occurs when the sinus node, also known as the sinoatrial node, creates an action potential that depolarizes the atria.
What does P in AP WAVE stands for?
Compressional waves are also called P-Waves, (P stands for “primary”) because they are always the first to arrive. … The difference in arrival time between these two types of seismic waves can be used as a rough estimate of the distance to the earthquake focus.
Do P waves move horizontally?
The P wave, or primary wave, is the fastest of the three waves and the first detected by seismographs. They are able to move through both liquid and solid rock. … S waves are the more dangerous type of waves because they are larger than P waves and produce vertical and horizontal motion in the ground surface.
Are P waves sound waves?
In P or compressional waves, the vibration of the rock is in the direction of propagation. P waves travel fastest and are the first to arrive from the earthquake. … For example, sound waves are P waves at a high enough frequency to hear with your ear.
Which wave can move horizontally?
There are two types of surface waves: Love and Rayleigh waves. Love waves move back and forth horizontally. Rayleigh waves cause both vertical and horizontal ground motion. These can be the most destructive waves as they roll along, causing the ground to rise and fall as they pass.
Why do P waves move faster than S waves?
P-waves and S-waves are body waves that propagate through the planet. P-waves travel 60% faster than S-waves on average because the interior of the Earth does not react the same way to both of them. … The energy is thus less easily transmitted through the medium, and S-waves are slower.
What is the difference between P waves and S waves?
P waves are recorded earlier than S waves, because they travel at a higher velocity. … P waves can travel through liquid and solids and gases, while S waves only travel through solids. Scientists use this information to help them determine the structure of Earth.
What happens to P waves and S waves as they travel inside the Earth?
The speed of P waves and S waves increases as they travel deeper into the Earth’s mantle . They travel through the Earth in curved paths, but they change direction suddenly when they pass through the boundary between substances in different states.
What is Rayleigh wave motion?
A Rayleigh wave is a seismic surface wave causing the ground to shake in an elliptical motion, with no transverse, or perpendicular, motion.
Why are transverse waves called secondary waves?
The name secondary wave comes from the fact that they are the second type of wave to be detected by an earthquake seismograph, after the compressional primary wave, or P wave, because S waves travel more slowly in solids.
How do seismic waves move?
There are several different kinds of seismic waves, and they all move in different ways. The two main types of waves are body waves and surface waves. Body waves can travel through the Earth’s inner layers, but surface waves can only move along the surface of the planet like ripples on water.
In which location did the P-waves arrive earliest?
“An earthquake was recorded in San Diego. The seismograph record shows that P-waves first arrived at 10:02-09 PST (read this is “10:02 and 9 seconds, AM, Pacific Standard Time”), and S-waves arrived at 10:03-04 PST.
Do P waves have the smallest amplitude?
The p wave has a much smaller amplitude and lower frequencies than S waves or surface waves so they do much less damage.
Where do P waves travel slowest?
P-waves travel through solids, liquids, and gases. S-waves are slower than P-waves.
Can You Feel P waves?
The waves also travel through the Earth at different speeds. The fastest wave, called the “P” (primary) wave, arrives first and it usually registers a sharp jolt. … “It feels more abrupt, but it attenuates very quickly, so if you are far away you often won’t feel the P wave.”
Why do P waves slow down in a liquid?
Seismic waves travel more quickly through denser materials and therefore generally travel more quickly with depth. … Molten areas within the Earth slow down P waves and stop S waves because their shearing motion cannot be transmitted through a liquid.
What is P wave velocity?
Compressional or P-wave velocity (primary wave) measurements are a measure of the velocity of sound waves through Earth materials with distance vs. … P-wave velocity varies with the lithology, porosity, and bulk density of the material; state of stress, such as lithostatic pressure; and fabric or degree of fracturing.
What does P wave morphology mean?
The P wave morphology can reveal right or left atrial hypertrophy or atrial arrhythmias and is best determined in leads II and V1 during sinus rhythm. Characteristics of a normal p wave:[1] The maximal height of the P wave is 2.5 mm in leads II and / or III. The p wave is positive in II and AVF, and biphasic in V1.
What do you see in P waves before QRS?
P waves are the key to determining whether a patient is in sinus rhythm or not. If P waves are not clearly visible in the chest leads, look for them in the other leads. The presence of P waves immediately before every QRS complex indicates sinus rhythm.
When P wave is absent?
A lack of visible P waves preceding QRS complexes suggests a lack of sinus beats; this may occur with sinus dysfunction or in the presence of fibrillation or flutter waves. The P wave may also be hidden within the QRS complex.
