The most common way of joining copper pipe is by soldering (it’s called ‘sweating’ mostly in the U.S., probably because the pipe ‘sweats’ as it heats up). … Brazing is basically the same process, put performed at a higher temperature (if the soldering metal melts above 840 degrees, the process is called brazing).
What is sweating metal?
Sweating metals together refers to soldering with a torch or in an oven. Two metals, which can be dissimilar, are joined by a solder made of an alloy that has a lower melting temperature than the joined metals.
What is the difference between brazing and sweating copper?
The only difference between brazing and soldering is the temperature at which each process takes place. Soldering takes place at a temperature below 840°F (450°C), and brazing occurs at a temperature above 840°F (450°C).
Why is it called sweating pipes?
The walls of copper pipe, however, are too thin and soft to be threaded, so a different sort of fitting is used, called a sweat fitting. It’s called that because the process of joining the various elements using solder involves heating them with a propane torch until they seem to sweat.Is sweating and soldering the same thing?
“Sweating” and “soldering” are synonymous terms used to describe the process of using heat and solder to join copper pipe and fittings to one another. You can tell your neighbor you’re heading downstairs to “solder” a joint—but “sweating” makes you sound much more worldly and DIY hip.
What is a sweat connector?
Soldered fittings, also called “sweat fittings,” are used to join copper pipes such as those commonly encountered in some in-wall tub and shower applications. … The heat draws the solder into the gap between the fitting and pipe to form a water tight seal.
What is brazing filler rod made of?
The “welding” of cast iron is usually a brazing operation, with a filler rod made chiefly of nickel being used although true welding with cast iron rods is also available.
Do you need to clean copper before brazing?
Copper needs a good cleaning before soldering / brazing to remove the oxide layer that forms on it. This layer of oxidation prevents the solder or brazing brass from “wetting” – forming a bond with the copper.Is my pipe sweating or leaking?
The answer to whether your pipes are sweating or leaking boils down to this: If controlling indoor humidity levels eliminates the problems you are dealing with sweating pipes, if not, you have a leak that should be identified and remediated to avoid property damage and potential health risks.

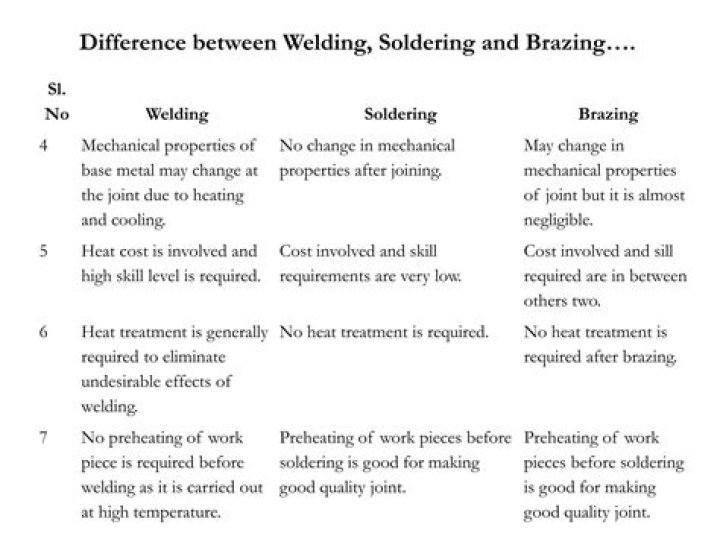

What is brazing VS soldering?The American Welding Society (AWS) defines brazing as such a process which involves a filler metal which has a liquidus above 450°C (842°F). Soldering, on the other hand, involves filler metals with a liquidus of 450°C or below.
Article first time published onCan you braze with a propane torch?
Brazing permanently joins two metals using a torch. You can use a propane torch to braze most metals you want to join. Propane torches are widely available in your local hardware stores, plumbing supply houses as well as at metalsmith and jewelry supply companies.
Is silver solder stronger than brazing?
Brazing rods look like straightened metal coat hangers, and like solder they become stronger as the percentage of silver they contain increases. The braze is what is melted by the torch to join two metals. For joining copper lines we usually use brazing rods that are made out of a copper-phosphorous combination.
Which is the best material to use on HVAC pipe brazing?
When brazing copper the best choice is always sil-phos. Only use silver braze on the brass and steel joints. This compound is very expensive so it is not commonly used when sil-phos can be used.
Where is sweat soldering used?
Sweat soldering is a simple and fuss free way of joining two metal surfaces together, one on top of the other. It is great for flat surfaces and ideal for seams, where neat solder application would otherwise be tricky.
Why are sweat fittings not threaded?
Sweat fittings have a nonthreaded joint with a diameter slightly larger than the pipe. They slip onto the pipe, then when hot solder is applied, the solder seeps into the gap and fuses the fitting to the pipe. Compression fittings, on the other hand, have a threaded end with an attached nut.
What's better compression fittings VS soldering?
Compression fittings are bulkier and can be considered less aesthetically pleasing compared to the soldered joint. Compression fittings are not nearly as robust as soldered fittings making them much more sensitive to powerful stresses.
Which material you should not braze?
Metals You Shouldn’t Dip Braze Heating metals, like silver or gold, to such high heat requires a lot of precision. It’s more common for these metals to be soldered rather than brazed. Gold and silver can handle the lower heat better, and soldering can still give a good bond, even if it’s not as strong.
What is the most commonly used filler metal in brazing?
Silver, copper and aluminum alloys are commonly-used filler metals; silver is frequently chosen because it has a relatively low melting point. Copper braze has a higher melting point but is generally more economical. Depending on the application, the alloy may be in the form of a stick, paste or preform.
What is the name of filler metal in brazing?
In brazing, the filler metal generally used is Copper + Zinc alloy.
What is a sweat valve?
An anti-sweat valve is a component that mixes the hot and cold water, keeping the water tank from sweating.
What does sweat mean in plumbing?
“Sweating pipes” is one term homeowners may hear when maintaining their pipes. Sweating a pipe refers to soldering a pipe or the joint. Sweating seals a new joint or mends a fault. When sweating a pipe, it is important to do the job correctly so that a soldered pipe can last for years and years.
Do PVC pipes sweat?
Pipes do not literally sweat, although it appears that way. … Like a cold bottle of soda on a hot day, when humid air comes in contact with a chilled pipe or component the air loses its capacity to hold water vapor, as a result excess water forms into liquid water droplets on or near the cold surface.
How do you know if you have a leak or condensation?
Your roof most likely isn’t leaking if you can’t directly track down a leak or identify any exterior damage. That means that the water stain on your ceiling is caused by condensation. Condensation appears when there’s too much moisture in the air for a specific temperature.
Why do basement water pipes sweat?
The cold water pipes attract the moisture in the warm air causing condensation to form on the outside of the water supply lines. Enough condensation can form on the pipes and they can drip and form puddles on the floor. The process is the same as a glass of cold water sweating on a hot and humid summer day.
What are the 4 stages of brazing?
- Step 1: Ensure good fit and proper clearances. …
- Step 2: Clean the metals. …
- Step 3: Flux the parts. …
- Step 4: Assemble for brazing. …
- Step 5: Braze the assembly. …
- Step 6: Clean the brazed joint.
Why is a flux needed for brazing?
A fluxing agent (or a controlled atmosphere as found in furnace brazing) is required for all brazing and soldering applications. The purpose of the flux is to remove oxides from the base material and to prevent oxidation during the heating process, thus promoting the free flow of the brazing filler metal.
What are the steps in brazing?
- GOOD FIT AND PROPER CLEARANCE. The best clearance between the two metal parts being brazed is a close one – usually . …
- CLEANING THE METALS. …
- FLUXING THE PARTS. …
- ASSEMBLE FOR BRAZING. …
- BRAZING THE ASSEMBLY. …
- CLEANING THE BRAZED JOINT.
Is welding stronger than brazing?
Brazing soundly beats welding when joining dissimilar metals. As long as the filler material is metallurgically compatible with both base metals and melts at a lower temperature, brazing can create strong joints with barely any alteration of the base metals’ properties.
What is brazing temperature?
Brazing, when performed correctly, is a joining process that produces a permanent bond between two or more materials by heating them to a temperature above 450°C (840°F), but lower than the melting-temperature of any of the materials being joined.
What are the disadvantages of brazing?
- Producing lower strength joints compared to welding.
- Producing joints that are not as well suited to high-temperature applications as welds.
- Fluxes may contain toxic components.
What gas is used for brazing?
While acetylene gas is always required as the fuel for gas welding, braze welding can be performed with the other fuel gases such as propane, natural gas, propylene, etc., as well as with acetylene.
