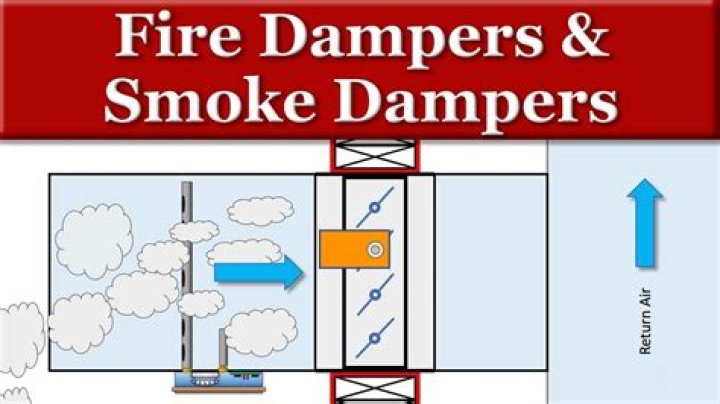

A fire damper closes once the duct temperature reaches a high enough level to melt a fusible link. A smoke damper closes upon the detection of smoke. … It is UL leakage-rated to stop smoke in its tracks, which is a main difference from fire dampers.
Where do you need fire smoke dampers?
Generally, fire dampers are required where air ducts penetrate walls that are rated for 2-hours or more. They are needed in all air transfer openings (non-ducted) in rated walls, regardless of the rating. And they are required at some, but not all penetrations of rated floor assemblies and shaft enclosures.
What are the types of fire dampers?
- Curtain fire dampers which include a folded curtain held at the top by a thermal element.
- Intumescent fire dampers which contain elements that expand when heated.
- Single and multi-blade fire dampers which pivot when released.
What is the difference between motorized damper and smoke damper?
Both Fire and Smoke Damper (FSD) Both a heat detector and a smoke detector are used to close the damper. Motor Shut-down – If the damper is automatically reset with a motor, the motor loses power and shuts the damper when either the duct smoke detector or when the duct heat detector is activated with smoke or heat.How many types of dampers are there in HVAC?
There are two common types of HVAC dampers: manual and automatic. Each system brings unique benefits to HVAC applications.
Are fire dampers required in 30 minute walls?
As an alternative to this, a fire rated ceiling having a minimum fire resistance of 30 minutes (including light fittings) may be used (Figure 15 ii). When ducts serve a hazard room, then fire dampers are required. (Figure 15 iii).
How does a smoke damper operate?
Fire dampers respond to heat, when the temperature reaches a set point the damper slams shut. Smoke dampers respond to the detection of smoke, and close automatically. They can also be activated remotely. They resist the passage of smoke, toxic gases and air through a fire barrier.
Do fire dampers need to be monitored?
Dampers must be installed per International Building Code (IBC) and National Fire Pro- tection Association (NFPA) Standard 1053. Code requires that all combination fire/smoke dampers be inspected and tested prior to occupancy and then tested again, one year later.Are smoke dampers normally open or closed?
During normal operation the pressure under the floor is maintained by modulating the damper mounted in the shaft wall. If a fire occurs and the temperature at the damper reaches 165°F (74°C), then the damper closes. If smoke is present in duct (or space area), then damper closes.
What is the purpose of motorized damper?What is the purpose of a motorized damper? Essentially, the damper regulates the flow of air inside the air handling equipment, influencing your overall health in the long term. A functioning motorized damper allows for temperature within a room to be controlled by you, regulating the flow of air in your home.
Article first time published onDo fire smoke dampers require power?
Motorized actuators are normally used for the operation of smoke dampers. The designer must consider the case where there is loss of normal power to the damper actuator. Either emergency power should be provided or smoke dampers should be arranged for fail-safe closure upon failure of power to the actuator.
What is a dynamic fire damper?
Dynamic Fire Damper: A fire damper that is listed and approved for applications where the HVAC system blower may continue to run during an alarm. Dynamic fire dampers are rated to close with and/or against moving air measured in feet-per-minute (fpm) velocity.
What are the three types of fire dampers?
Different Types of Fire Dampers Fire dampers usually come in few different styles; a dynamic fire damper, a static fire damper, and a smoke damper. It’s important to know the differences between these dampers, and what they do to protect your home.
What are the different types of dampers?
- Butterfly Flat Dish Damper. Butterfly dish dampers are mainly designed for high efficiency with less maintenance. …
- Blade Dampers. …
- Guillotine Dampers. …
- Louver Dampers. …
- Inlet Vane Dampers. …
- 3 comments.
What is a device that meets both the fire damper and smoke damper requirements?
According to NFPA 80, a combination fire/smoke damper is: A device that meets both the fire damper and smoke damper requirements.
Are HVAC dampers necessary?
When you add zones to your HVAC system, your HVAC technicians need to install dampers to maintain the air volume in different zones in your location. These dampers stay inside your ducts and respond to calls for air in different zones, opening and closing as required.
How much does a HVAC damper cost?
The cost for a new motorized damper can range anywhere from $100 to $200. The installation process will take a contractor around two hours and will bring between $150 and $250 in labor costs.
What controls a smoke damper?
Smoke dampers close by an electric or pneumatic actuator, or a spring actuator, and can be either manually reset or driven open on a reset signal to the electric or pneumatic actuator. … Fire dampers and smoke dampers are an integral and essential part of a building’s passive fire protection system.
Do fire dampers stop smoke?
Whilst fire dampers function to help stop the passage of fire, smoke dampers work in a similar way to preserve the integrity of physical smoke barriers e.g. floors and walls. … They close upon the detection of smoke and prevent the circulation of smoke and air through the duct or ventilation opening.
How much does a fire damper cost?
The average cost of fire damper testing and inspections is between $40-$150 per fire damper.
Does a 2 hour fire rated wall require a fire damper?
If the air duct is an air transfer opening (meaning it is not fully ducted) at the fire-rated barrier, then the duct needs a fire damper where other openings are required to be protected as well. However, two-hour fire-rated barriers do require fire dampers in fully ducted HVAC systems.
Does a 1 hour rated wall need a fire damper?
1. Fire dampers are not required in ducted HVAC systems provided the wall is 1-hour fire resistance rated or less, occupancy is not Group H, and the building is equipped throughout with an automatic sprinkler system.
Do fire dampers need to be insulated?
All fire and fire/smoke dampers must be installed in a sleeve at the factory. … The damper must be ordered with a sleeve and wrapped in insulation as per NCA’s UL listing.
How do combination fire smoke dampers work?
They operate using a heat sensitive device that, when activated, melts and causes the damper components to close. A smoke damper can also be installed within the duct, and is activated by a signal from a smoke detector within the damper. … A combination fire/smoke damper will close upon detection of EITHER fire or smoke.
What UL 555?
® BACKGROUND INFORMATION. The UL 555 Fire Damper test standard originated in 1966 to ensure fire dampers would function properly in fire conditions. The original standard has been revised several times to address new discoveries in fire protection and developing technology since 1966.
Do smoke dampers need to be tested?
If the damper is not operable, repairs must begin without delay. Following any repairs, the damper must be tested for proper operation. Periodic inspections, testing and maintenance of a combination fire/smoke damper must also meet the inspection, testing and maintenance requirements contained in Chapter 6 of NFPA 105.
How do you test fire dampers?
To test if a fire damper is working efficiently, one of the team will release the fire damper manually to ensure it closes fully. In cases of fire the high heat should release the fusible link and close the fire damper to prevent the fire spreading.
How are Motorized dampers controlled?
Dampers are operated manually or automatic (motor driven). … Automatic Dampers are used to constantly regulate airflow and are operated by electric or pneumatic (Air Pressure) motors – each controlled by a thermostat or building automation system.
What is a jiffy damper?
The “JD” Series Jiffy Damper offers added economy in those applications where a supporting solid tail bearing is not required on the damper. … The Duro Dyne JD Damper utilizes one Rapit Spring End Bearing.
What is an electric damper?
A damper is a valve or plate that stops or regulates the flow of air inside a duct, chimney, VAV box, air handler, or other air-handling equipment. A damper may be used to cut off central air conditioning (heating or cooling) to an unused room, or to regulate it for room-by-room temperature and climate control.
What is the required minimum rating of a fire damper installed in more than 3 hour fire resistance rated assemblies?
TYPE OF PENETRATIONMINIMUM DAMPER RATING (hours)Less than 3-hour fire-resistance-rated assemblies1.5
