What is the code height for electrical outlets

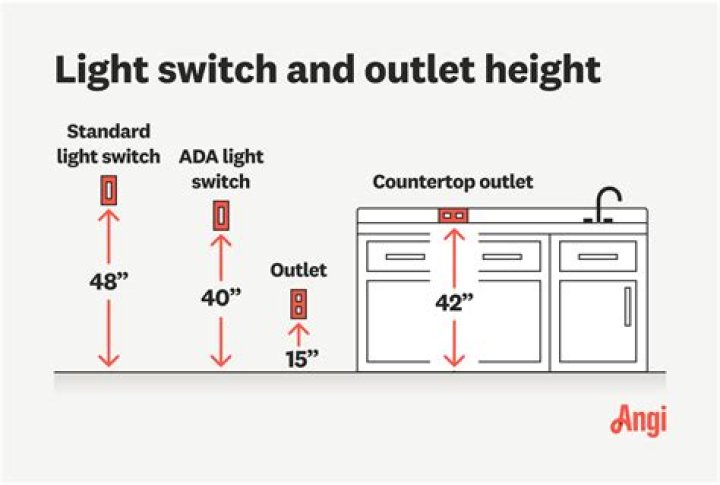

The standard height for wall outlet boxes is about 12 inches from the top of the floor covering to the bottom of the receptacle box (or 16 inches to the top of the box).

What is code for installing electrical outlets?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line.

Should ground prong be up or down?

With the ground in the upper position, the ground prong on the plug could pull out with the hot and neutral still energized, thus creating a possible electrocution hazard. Ground should be at bottom that way if the plug is accidentally pulled; the last prong to disconnect will be the ground.

What is code height for electrical switches?

Many builders position switch boxes so the bottom of the box is 48 inches above the floor. To satisfy the accessibility requirements of the Fair Housing Act, however, the switch itself should be no more than 48 inches from the floor.

Should the ground be up or down on an outlet?

The outlet should be oriented with the ground pin up because this pin is longer and the plastic around the plug is meatier, so it will help to keep the plug inserted in the outlet.

How many receptacles can be on a 15 amp circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

How high should receptacles be in a garage?

Garage electrical outlet location: In the garage electrical outlets should be 18″ or more above floor level.

What is the maximum height a stove receptacle can be installed?

NEC Code 210.52(c)(5) – Range Appliance Application: Receptacles are to be mounted no more than 20 inches above the kitchen counter top. Installation Note: Typically the 220volt range receptacle is mounted near the floor, just above the baseboard.

Which way should outlets face?

The electrical code allows outlets to be installed with the ground plug hole facing up, down or sideways. It’s up to you, there is no standard electric outlet orientation. So that means there really is no such thing as upside down outlets.

Do I need 20 amp outlets?

Large consumers, especially kitchen appliances, such as microwaves, blenders and toasters, need a dedicated 20 amp circuit, to ensure a constant energy flow, which means they cannot share the circuit with other devices.

Article first time published on

Why are outlets red in hospitals?

The red outlets (sometimes referred to as sockets) in hospitals and medical facilities indicate that they are on emergency backup power. The bright red color helps nurses, doctors, and hospital staff quickly and clearly identify where to plug in critical equipment during an emergency situation.

Why do plugs have 2 holes on the end?

These bumps fit into the holes so that the outlet can grip the plug’s prongs more firmly. This detenting prevents the plug from slipping out of the socket due to the weight of the plug and cord. It also improves the contact between the plug and the outlet.

How high above the finished floor in the living room are receptacles located?

A common height for a wall outlet is between 12 to 18 inches AFF (above finish floor). In rare instances, outlets are still installed in baseboards and in the floor with proper box/covers.

How far off the ground should outdoor electrical outlets be?

Homes must have at least one outdoor receptacle at the front and rear of the house. They must be readily accessible from the ground and positioned no more than 6 1/2 feet above grade (ground level).

Should electrical boxes be flush with drywall?

When you install an electrical box, make sure it is flush with the surface of this drywall strip; this will ensure the boxes are at the proper depth when the walls are finished.

Can you run lights and outlets on the same circuit?

Yes, you can. The average home uses an indoor distribution board that houses the breakers of the majority of circuits in the home. A circuit controlled by a 15A circuit breaker (which a lot of contractors use for general lighting) can also accommodate outlets.

Can bedroom lights and outlets be on the same circuit?

Yes, if you want, you can use separate circuits for your outlets and lights. In this process usually, a 15 amp circuit is used for lighting. For the outlets, you can use a 20 amp one. You can use 12 gauge wires for your lights on both the 20 and 15 amp circuits.

How many outlets can you put on a 14 2 wire?

You can use 14-2 wire to 12 outlets that are protected by a 15 Amp breaker.

Why do electricians put outlets upside down?

Electricians may position the outlet in an upside-down position so that you can quickly identify the switch-controlled receptacle. Since it stands out visually to most people right away – it provides convenience to the occupants to easily remember which outlet is switch controlled.

Why do electric plugs have holes in the blades?

How far should an outlet be from a corner?

The National Electrical Code requires that you have an electrical outlet within 6 feet of the corner of the wall and at least 12 feet from the same wall.

How high off the floor should a dryer outlet be?

While it depends on local building codes, electrical connections for washers and dryers usually need to be placed less than 6 feet from the unit and 34-36 inches high.

What is the code for dryer outlet?

The National Electrical Code currently requires 4-prong dryer outlets in all new home construction. Existing homes may still use 3-prong outlets. The switch to a 4-prong outlet was due to a flaw in the 3-prong outlet design. In a 3-prong outlet, the ground and neutral wires are contained in the same prong.

Can 15 amp outlets be used on 20 amp circuit?

15 Amp Circuits The wire has a rating that allows it to carry up to 20 amps. In most home installations, several 15-amp receptacles connect to a 20-amp circuit breaker. This allows multiple devices to connect to a single 20-amp circuit as long as the total circuit load does not exceed 20 amps.

Can I use 14 gauge wire on a 20 amp circuit?

14 AWG must be protected at 15A, according to NEC 240.4(D)(3). 14 AWG can’t be used on a circuit with a 20A breaker. The screw terminals are the better choice if you want to put 15 Amp receptacle on a 20 Amp circuit with 12 gauge wire. You can use the side terminals.

Can I use 12 gauge wire on a 15 amp circuit?

Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.

What does the green dot on a receptacle mean?

The green dots indicate that the UPS outlets and plug are certified as hospital-grade and may be used within patient-care vicinities.

What do orange plugs mean?

According to an information article by Scott Spyrka @spyrkaelectric.com, the orange outlets are isolated ground receptacles that can provide electricity directly from a grounding point, meaning they maintain power even if the circuit breaker is tripped or power is interrupted elsewhere.

What is a blue receptacle?

Blue outlets have an alarm indicating the loss of ground protection.

Are two prong outlets up to code?

According to the National Electric Code, two-prong outlets are allowed in homes as long as they are properly working. If you choose to replace your two prong outlet, you do not have to upgrade to a newer model. If the two-prong outlet is properly functioning and tested, you may keep it in your home.

Can any wire be used as a ground wire?

The main types of grounding wire most used includes bare copper and gauged copper wire. … As a base, the wire contained within acts as a ground. Contractors for outdoor applications prefer this type of copper wire, as it is protected from the elements. Another commonly used type of grounding wires is gauged copper wire.
