Rise time is defined as the time with which airway pressure builds toward a preset maximum value. A rapid rise time value will allow instantaneous delivery of flow at the start of the breath, resulting in an immediate rise in pressure to the pre-set level.
What is normal rise time on ventilator?
It is set in percent of the breath cycle (from 0% to 20% of the breath cycle time) or in seconds (0-0.4 seconds). The default settings are usually 0.15 seconds or 5%. In summary, the consequences of a prolonged respiratory rise time are: Decreased inspiratory flow rate.
What is rise time on Bipap?
Ti – Inspiratory Time is the length of time it takes for a “breath” to be delivered. The Rise – is a function of how quickly the BIPAP machine will go from the EPAP pressure to the IPAP pressure during inspiration.
What is the difference between rise time and inspiratory time?
An inspiratory pause is a period during inspiration during which flow ceases. Inspiratory rise time is the rate at which the ventilator achieves the pressure control variable.What does I time mean on a ventilator?
RR/F – Respiratory Rate/Frequency – Set frequency of ventilator delivered breaths per minute. I-Time – Inspiratory Time, expressed in seconds, is the amount of time spent in inspiration during the total respiratory cycle.
What is IE ratio in ventilator?
The I:E ratio denotes the proportions of each breath cycle devoted to the inspiratory and expiratory phases. The duration of each phase will depend on this ratio in conjunction with the overall respiratory rate. … Increasing the I:E ratio to 1:3 will result in 1.5 seconds of inspiration and 4.5 seconds of expiration.
What is slope on ventilator?
“Slope” adjusts how quickly the higher pressure level is reached. The Pinsp is maintained for the duration Ti (this time control is not used in PC-PSV). PC-CMV can often achieve greater tidal volumes at a lower PIP as compared to VC-CMV.
Who uses BiPAP?
Bilevel positive airway pressure (BiPAP) is a type of noninvasive ventilation. It is used when you have a condition that makes it hard to breathe like sleep apnea, COPD, asthma, heart conditions and other ailments.What is the rise time of a signal?
Rise time is the time taken for a signal to cross a specified lower voltage threshold followed by a specified upper voltage threshold. This is an important parameter in both digital and analog systems. In digital systems it describes how long a signal spends in the intermediate state between two valid logic levels.

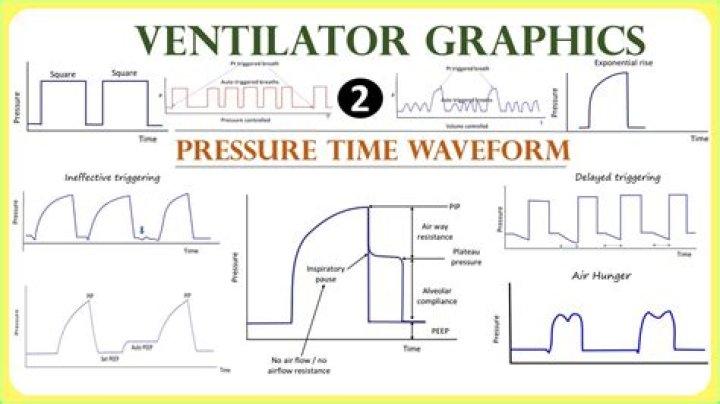

How do I change the rise time on my BiPAP?BiPAP waveforms can be altered with the rise time by changing the angle of the pressure delivery. A faster rise time, setting 1, can result in a square waveform, where a slower rise time, setting 5, will be more sinusoidal.
Article first time published onWhat is a V60 ventilator?
The Respironics V60 ventilator is a microprocessor-controlled, bilevel positive airway pressure (BiPAP) ventilatory assist system that provides noninvasive positive pressure ventilation (NPPV) and invasive ventilatory support for spontaneously breathing adult and pediatric patients.
What are normal ventilator settings?
Ventilator settings Sensitivity adjusts the level of negative pressure required to trigger the ventilator. A typical setting is –2 cm H2O. Too high a setting (eg, more negative than –2 cm H2O) causes weak patients to be unable to trigger a breath.
How long can a person be on a ventilator in an ICU?
Some people may need to be on a ventilator for a few hours, while others may require one, two, or three weeks. If a person needs to be on a ventilator for a longer period of time, a tracheostomy may be required.
What is normal peak pressure on ventilator?
Peak pressure is graphed as a summation of both initial airway resistance and lung compliance. In general, an acceptable maximum Ppeak is 40 cmH2O.
What is P ramp on ventilator?
The ‘ramp’ option is a comfort setting initially made available on CPAP devices. This option exists in pressure-cycled ventilators, allowing a progressive increase of expiratory positive airway pressure (EPAP) only.
What is ICU ventilator?
Ventilators help a patient breathe by assisting the lungs to inhale and exhale air. These machines are used to treat patients suffering from conditions including pneumonia, brain injury and stroke.
How many types of ventilator modes are there?
There are five conventional modes: volume assist/control; pressure assist/control; pressure support ventilation; volume synchronized intermittent mandatory ventilation (SIMV); and pressure SIMV.
How do you increase oxygen in a ventilator?
Increasing the inspiratory to expiratory ratio (eg, inverse ratio ventilation) — In some patients, increasing the inspiratory:expiratory (I:E) ratio by prolonging inspiratory time may improve oxygenation by allowing regions of the lung that require more time to open and participate in gas exchange [34-37].
What is the normal inspiratory time?
Positive end expiratory pressure (PEEP): 4 cm of H2O OR 5-6 cm if FiO2 > 0.90. FiO2: 0.4 to 1.0, depending on the clinical situation. Inspiratory time: 0.3-0.5 sec.
What is the highest PEEP level?
Under controlled conditions, higher levels of PEEP are well tolerated. PEEP of 29 appears to be the highest tolerated PEEP in our patient. We noted an initial rise in blood flow across all cardiac valves followed by a gradual decline.
How is I time calculated?
Then take the average of those times for the expiratory time. For example, take 2.5 seconds as the expiratory time. Subtract expiratory time from the value from Step 2. This yields an inspiratory time of 4 – 2.5, or 1.5 seconds.
Which is longer inspiration or expiration?
Expiration Time Expiration even though is physiologically longer than inspiration, on auscultation over lung fields it will be shorter. The air moves away from alveoli towards central airway during expiration, hence you can hear only early third of expiration.
What is trigger in ventilator?
Triggering refers to the signal that causes inspiration. A ventilator breath may be time triggered or patient triggered. During patient-triggered breaths, the ventilator may detect patient effort using a variety of inputs. These include pressure, volume, flow, impedance, and motion.
What is tidal volume on ventilator?
Tidal volume is the volume of air delivered to the lungs with each breath by the mechanical ventilator. Historically, initial tidal volumes were set at 10 to 15 mL/kg of actual body weight for patients with neuromuscular diseases.
What is expiratory time?
Objective: In mechanically ventilated patients, the expiratory time constant provides information about the respiratory mechanics and the actual time needed for complete expiration. As an easy method to determine the time constant, the ratio of exhaled tidal volume to peak expiratory flow has been proposed.
What does SIMV stand for?
Introduction. Synchronized intermittent mandatory ventilation (SIMV) is a type of volume control mode of ventilation. With this mode, the ventilator will deliver a mandatory (set) number of breaths with a set volume while at the same time allowing spontaneous breaths.
Why is rise time greater than fall time?
The rise time at the output depends primarily on how fast the P channel device can turn on, and the fall time is determined primarily by how fast the N channel device can turn on.
What is rise time and bandwidth?
Rise time is usually specified as the transition time for a signal to go from the 10% to the 90% level of the steady maximum value (see Figure 1). However, bandwidth describes the range of frequencies over which the majority of the energy of a signal is contained. … Frequency-domain response of an impulse input.
Is BiPAP machine a ventilator?
It is commonly known as “BiPap” or “BPap.” It is a type of ventilator—a device that helps with breathing. During normal breathing, your lungs expand when you breathe in.
Is BiPAP good for Covid?
NIV includes Continuous Positive Airway Pressure (CPAP) and Bi-Level Positive Airway Pressure (BiPAP). CPAP is the method of choice with the use of BiPAP for those with complex respiratory conditions who contract COVID-19.
Does BiPAP give you oxygen?
It pushes pressurized air into your lungs. That opens them and lets you get the oxygen you need, which can lower your chances of things like a heart attack. A BiPAP machine is about the size of a lunchbox. A face mask, nasal mask, or nasal plugs are attached to the machine by a tube.
