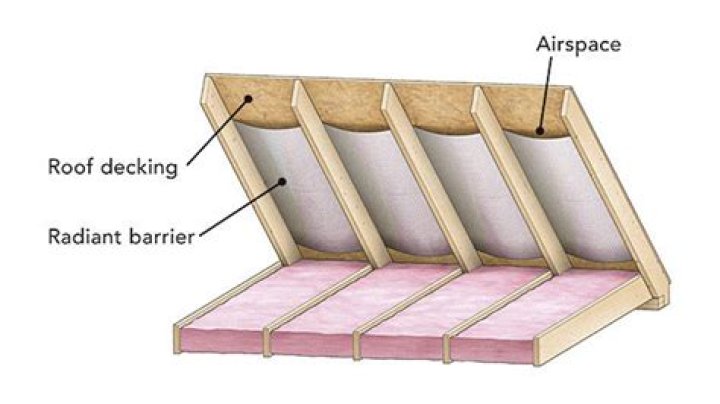

Radiant barrier sheathing panels are engineered wood panels with a thin layer of highly-reflective aluminum facing that reduces radiant heat gain into the attic. The result is a cooler attic, which can equate to lower utility bills, improved energy efficiency and a more comfortable indoor environment.

Is radiant barrier sheathing worth it?

Radiant barrier decking has been shown to save homeowners 5% to 10% on utility bills. No significant savings have been shown in colder climates; however, other benefits still make radiant barriers worthwhile. According to Energy.gov, some studies have shown 5% to 10% energy savings in warm weather climates.

Is radiant barrier OSB waterproof?

A radiant barrier helps block radiant heat, lowering energy costs and making the home more comfortable. OSB is manufactured from waterproof heat-cured adhesives and rectangular shaped wood strands that are arranged in cross-oriented layers, similar to plywood.

What is radiant barrier plywood used for?

Radiant Barrier Plywood – Do It Yourself and Save This radiant barrier plywood is generally used for new roofing applications with the reflective siding facing into the attic space. Felt and shingles are then applied over the top of the roof decking as usual.

Is radiant barrier the same as insulation?

Insulation is there to simply slow down the loss or gain of heat in your house. In other words, it works to keep the temperature of your house the same. … A radiant barrier, on the other hand, actually blocks and reflects heat back to where it came from, rather than just slowing down the process.

Is radiant barrier worth it in Florida?

Radiant barriers are most effective in blocking summer radiant heat gain and saving air-conditioning costs. Although the radiant barrier may be somewhat effective in retaining heat within a cold-climate home, it may also block winter radiant heat gain in the attic.

Does radiant barrier affect WIFI?

Does Radiant Barrier affect WIFI or Cell Signals? In general, metal can affect the transmission of radio waves, which is what both cell phones and Wi-Fi systems use for communicating information. … With Wi-Fi signals, unless the radiant barrier is between you and the router, there is unlikely to be any impact.

Do radiant barriers cause condensation?

In colder weather, radiant barriers can sometimes develop condensation. This issue is most prevalent in climates where the temperature regularly falls below zero degrees fahrenheit. However, it’s a potential issue anywhere that freezing temperatures are a possibility.

Can I use radiant barrier sheathing for walls?

Thermostat radiant barrier sheathing can also be used on gables and walls to reduce solar heat gain through these areas. This is especially true for southern exposure exterior surfaces that can absorb heat from prolonged exposure to the sun.

Does radiant barrier work on walls?

A radiant barrier works in walls, too. With a ventilated airspace behind the cladding, as in a rainscreen, if the next layer on the other side of that airspace is a radiant barrier, it could reduce the heat flow.

Article first time published on

Which way should radiant barrier face?

Research by the Florida Solar Energy Center (FSEC) found that radiant barriers work best when installed with foil-face down (towards the building interior) and applied under the roof sheathing.

What is OSB radiant barrier?

Oriented strand board (OSB), with a thin layer of low emitting aluminum foil attached to one side, is a common type of thermal-radiant-barrier sheathing. Foil-backed OSB is applied mostly in attics; however, it is also used in wall systems.

What is roofing sheathing?

Roof decking (or roof sheathing) is the wooden boards that make up the foundation of your entire roof system. I like to say foundation because it’s what your shingles and the rest of your roofing components are installed on. Roof decking is one of the most important pieces of your roof system.

Does radiant barrier attract lightning?

It has specifically been suggested that the use of radiant barriers in roof structures can ‘attract lightning‘ and further, a structure with a radiant barrier system will be more likely to be struck by lightning than an identical structure without it.

Is radiant barrier worth it in California?

There’s no question that radiant barriers cut down on cooling costs during the hottest months. The Department of Energy has suggested that in sunny regions, installing radiant barriers reduces cooling costs by 5% to 10%. In the hottest areas, those energy savings can be even greater.

How long does radiant barrier last?

How Long Does Radiant Barrier Last? According to leading estimates, thousands of homes and properties have had radiant barrier installed for more than ten years without any significant issues.

How much does it cost to have radiant barrier installed?

The cost to install radiant barrier insulation runs from $740 to $2,840 or $1,700 on average. Materials for this project run as low as $0.10 per square foot, up to $0.95. Professional installers typically charge $30 to $80 per hour for this job.

What is CDX plywood?

CDX Plywood is used primarily by contractors to build exterior walls and roofs. CDX plywood has one side veneer grade “C” and one side veneer grade “D”. The two are bonded together with glue which can withstand a little moisture. The APA would recognize CDX Grade Plywood as C-D Exposure 1 plywood.

Can I install radiant barrier under shingles?

You can install the radiant barrier foil below the raised shingles either on top or below the battens. … The easiest and best way is to run the foil out over the roofing felt, tack it down and then install the battens followed by shingles or metal roofing.

Do you need insulation with radiant barrier?

Radiant barriers reflect radiant heat. Then, the heat transfer method switches from radiant heat to conductive heat to move through the attic insulation and into your home. This is why you need both types of insulation.

Does radiant barrier need ventilation?

Having good attic ventilation helps to reduce the air temperature in your attic, but having a radiant barrier helps reduce the surface temperatures in your attic. This is why radiant barrier combined with proper ventilation works to make your home more comfortable and energy efficient.

Does radiant barrier help with humidity?

The radiant efficiency of radiant barriers, however, is unaffected by humidity. In addition, by moderating attic temperatures, radiant barriers also reduce formation of condensation.

Should I install a radiant barrier?

A professional should install the radiant barrier. It is generally installed during construction of a new home. However, if you are re-roofing your home, or you have an unfinished attic with open rafters, you can retrofit the attic with radiant barrier. … It’s important to allow the material to droop between the rafters.

How much does radiant barrier Reduce temperature in attic?

However, according to studies done by the U.S. Department Of Energy, it is generally accepted that installing radiant barrier in the attic will reduce heat gain through the ceiling by 40% typically leading up to a 17% reduction on heating and cooling utility bills.

Can radiant barrier be painted?

Let’s get some facts straight: there is no such thing as radiant barrier paint. The term “radiant barrier” is supposed to describe products that reflect over 90% of radiant energy, and these paint products simply cannot do that. … Meanwhile, the radiant barrier foil will reflect 97% of the radiant heat transfer.

What side of insulation faces out?

Hi Kim, Regardless of whether fiberglass insulation is installed in a wall, attic, or crawlspace; the paper facing should always face toward the inside of the home. That’s because the paper contains a layer of asphalt adhesive which prevents water vapor from passing through it.

Does radiant barrier help in winter?

How do radiant barriers work in winter? Radiant barriers, however, also help prevent winter heat loss. … In the winter, most of the heat that escapes through your ceiling and roof is radiant heat. A properly installed radiant barrier can reflect that heat back into your home before it escapes out of the home.

Does the foil side of foam insulation go in or out?

The foil insulation goes on top of the moisture barrier, followed by the roof covering. If you use bubble foil or rigid foam insulation, it also goes on top of the moisture barrier. Remember that there has to be an air space between the foil and the roofing.

What is the R value of radiant barrier?

Radiant barrier on its own has NO R-value; R-value is attributed to materials slowing conductive heat. AtticFoil™ works to block radiant heat (97%) coming in to the attic by stapling it to the rafters, but it has no R-value.

Is radiant barrier toxic?

There are a few sprayable paint coatings available that are sold as radiant barriers but they all contain volatile solvents which are not only hazardous to the installer but also to the homeowner as the toxic fumes penetrate down through the ceilings and into the interior.

What is solar Board OSB used for?

Solarbord is a radiant barrier sheathing product for roofs and exterior walls that consists of heat-reflecting foil laminated to OSB. Reduces radiant heat transfer through the roof by up to 97%. Reduces attic temperatures by up to 30ºF. Increases the efficiency of attic duct work.
