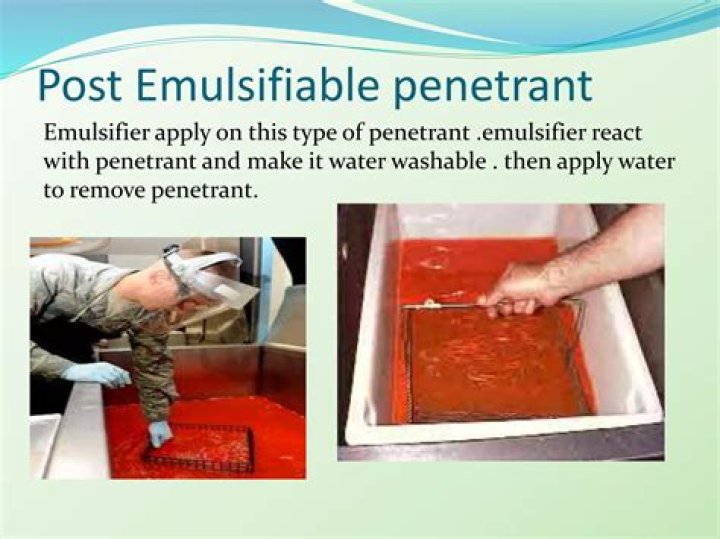

Post emulsifiable penetrants require a separate emulsifier or remover to break the penetrant down so the excess penetrant can be rinsed off with water, while the penetrant in the indication stays put. … Hydrophilic emulsifiers are water-based and supplied as a concentrate that must be diluted with water prior to use.

Which method of penetrant removal is post emulsifier hydrophilic?

Method D fluorescent penetrant inspection utilizes Hydrophilic Emulsifier to remove the surface penetrant. Hydrophilic Emulsifier is supplied as a concentrate by the manufacturer, and the hydrophilic emulsifier is diluted with water prior to use.

How do you get rid of extra penetrant?

The excess penetrant may be removed from the object surface with a simple water rinse. These materials have the property of forming relatively viscous gels upon contact with water, which results in the formation of gel-like plugs in surface openings.

What is the use of penetrant?

Dye penetrant inspection (DP), also called liquid penetrate inspection (LPI) or penetrant testing (PT), is a widely applied and low-cost inspection method used to check surface-breaking defects in all non-porous materials (metals, plastics, or ceramics).

What is emulsification time?

Emulsification time is the crucial parameter in the optimization process of the SMEDDS and microemulsion formulation development. If the formulation is microemulsion, then this emulsification time must be less than 1 min.

What is the function of emulsifier?

emulsifier, in foods, any of numerous chemical additives that encourage the suspension of one liquid in another, as in the mixture of oil and water in margarine, shortening, ice cream, and salad dressing.

When performing a post emulsifiable penetrant test the test piece does not rinse acceptable clean during normal processing what should be done?

Q.When performing a post emulsifiable penetrant test, the test piece does not rinse acceptable clean during normal processing. What should be done?A.Return the test piece to the emulsifier and repeat the stepB.Increase water temperature and pressure

How do you carry out a dye penetrant test?

  1. Penetrant. Apply the penetrant to the test area. Allow the penetrant to dwell for 10-30 minutes. …
  2. Developer. Apply the developer to the test area. Allow the developer to dwell for 10-60 minutes.
  3. Inspect. Examine the part for any bright, clear indications.

What is the disadvantage of liquid penetrant test?

Liquid penetrant testing has the following disadvantages: Extensive, time-taking pre-cleaning critical—surface contaminants can mask defects. Sensitive to surface-breaking defects only. Direct connection to the surface under test necessary.

What is PT weld inspection?

Liquid Penetrant Testing (PT) is used to detect casting, forging and welding surface defects such as hairline cracks, surface porosity, leaks in new products, and fatigue cracks on in-service components.

Article first time published on

Which level of penetrant is the most sensitive?

  • Level ½ – Very low sensitivity.
  • Level 1 – Low sensitivity.
  • Level 2 – Medium sensitivity.
  • Level 3 – High sensitivity.
  • Level 4 – Ultrahigh sensitivity.

What is a disadvantage of solvent removable penetrant?

Q.What is a disadvantage of the solvent removable penetrant process?A.It is the least sensitive of the penetrant processesB.It is not well suited for use on rough surfacesC.It is highly portableD.No water is required for its use

Which of the following pre cleaning processes is not recommended?

5. Which of the following is not a method of pre-cleaning? Explanation: The application of pre-cleaning is one of the steps of inspection of dye penetrant test. Solvent, alkaline, vapour degreasing and media blasting are a few types of pre-cleaning process, but not acid blasting.

Which method is post emulsified?

Post emulsifiable penetrants (Methods B, C, and D) require either solvent removers (Method C) or emulsifiers (Methods B and D) to remove the excess penetrant from the part surface. Unlike water washable penetrants (Method A), post emulsifiable penetrants will not rinse from part surfaces with water alone.

What is emulsify in digestion?

Emulsification is a process in which large lipid globules are broken down into several small lipid globules. These small globules are widely distributed in the chyme rather than forming large aggregates. Lipids are hydrophobic substances. Bile contains bile salts, which have hydrophobic and hydrophilic sides.

What is emulsification process?

Emulsification is the process of dispersing two or more immiscible liquids together to form a semistable mixture. In food applications, these two liquids generally consist of an organic (oil) phase and an aqueous (water) phase that is stabilized by the addition of a food-grade emulsifier (surfactant).

What industry and military specifications control a Penetrants?

Aerospace Material Specification (AMS) 2644, Inspection Material, Penetrant, is now the primary specification used in the USA to control penetrant materials.

What is the disadvantage of LPI Mcq?

Explanation: LPI is a fast, non-expensive and reliable test. It is limited by the depth of the defect. So disadvantage of Liquid penetrant testing is depth restriction. … Explanation: Penetrant is applied on the surface so surface defects only can be detected.

Which penetrant method is the easiest to use?

Since visible dye penetrants do not require a darkened area for the use of an ultraviolet light, visible systems are more easy to use in the field. Solvent removable penetrants, when properly applied, can have the highest sensitivity and are very convenient to use.

What is an emulsifier example?

Emulsifier Definition Surfactants or surface active agents are one type of emulsifiers. Detergents are an example of a surfactant. Other examples of emulsifiers include lecithin, mustard, soy lecithin, sodium phosphates, diacetyl tartaric acid ester of monoglyceride (DATEM), and sodium stearoyl lactylate.

Is emulsifier good for health?

A recent study suggests emulsifiers – detergent-like food additives found in a variety of processed foods – have the potential to damage the intestinal barrier, leading to inflammation and increasing our risk of chronic disease.

What is a emulsifying agent?

An emulsifying agent (emulsifier) is a surface-active ingredient which adsorbs at the newly formed oil–water interface during emulsion preparation, and it protects the newly formed droplets against immediate recoalescence.

What are the limitations of fluorescent penetrant inspection?

  • The method requires thorough cleaning of the inspected items. …
  • Test materials can be damaged if compatibility is not ensured. …
  • Penetrant stains clothes and skin and must be treated with care.
  • The method is limited to surface defects.
  • Training is required for the inspector.

What kind of defects can be detected under LPT?

  • Manufacturing defects open to the surface (such as cracks)
  • Lack of fusion.
  • Porosity (gas pockets)
  • Cold shuts, inclusions.
  • Hot tears.
  • Gas holes.

Why the developer is used in LPT?

The role of the developer is to pull the trapped penetrant material out of defects and spread it out on the surface of the part so it can be seen by an inspector. … This is why indications are brighter than the penetrant itself under UV light.

How many types of penetrant are there?

three basic types of penetrant: Colour contrast. Fluorescent. Dual purpose (fluorescent / colour contrast)

How can I tell if my Weld is cracked?

One of the many Non Destructive Testing (NDT) techniques used for the inspection of welding is surface crack detection. We shall briefly examine the two most common methods of surface crack detection, Liquid Penetrant Testing (PT), sometimes referred to as Dye Penetrant Inspection, and Magnetic Particle Testing (MT).

How can we identify defects with the help of dye penetrant testing?

Developer should form a semi-transparent, even coating on the surface. The developer draws penetrant from defects out onto the surface to form a visible indication, commonly known as bleed-out. Any areas that bleed-out can indicate the location, orientation and possible types of defects on the surface.

What is UT and MT testing?

Test Capabilities. Many methods are available for testing welds—magnetic particle test (MT), liquid penetrant test (PT), radiography test (RT), and the ultrasonic test (UT). … MT relies on a magnetic field and steel particles; a discontinuity in the weld allows the magnetic flux to leak, attracting the particles.

What is DPT piping?

Dye Penetration Test (DPT) is one of the simplest and oldest Non-Destructive Inspection methods. Also, known as the Liquid penetration test, the Dye penetrant test is widely used to detect surface…

What is DPT in welding?

Dye Penetrant Test (DPT) is one of the most inexpensive non-destructive test (NDT) methods, used to check the surface irregularities of any component. This test method is popular by many names, which are as follows; Liquid Penetrant Inspection (LPI) … Penetrant Test or Penetrant Testing (PT)
