Extension happens when an object increases in length, and compression happens when it decreases in length. The extension of an elastic object, such as a spring, is described by Hooke’s law: force = spring constant × extension.

What is the extension of a spring?

An object, such as a spring, stores elastic potential energy when stretched or squashed. When an object, such as a spring, is stretched, the increased length is called its extension.

How do you define the stretch of a spring?

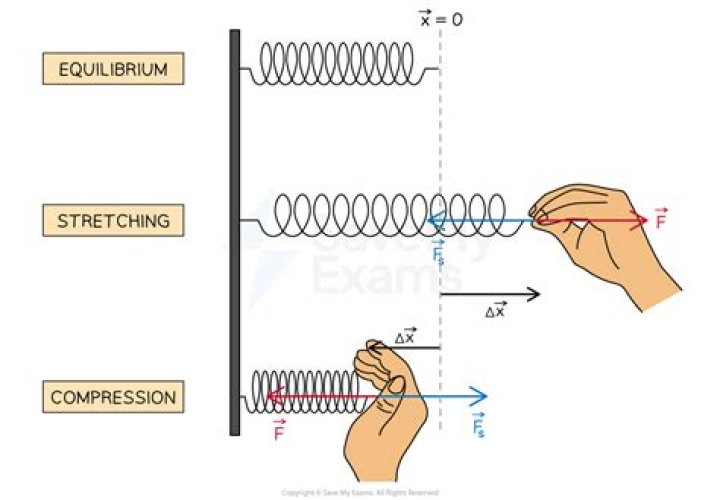

In order to compress or stretch a spring, you have to do work. You must exert a force on the spring equal in magnitude to the force the spring exerts on you, but opposite in direction. The force you exert is in the direction of the displacement x from its equilibrium position, Fext = kx.

How do you find the extension of a spring in physics?

  1. For each result, calculate the extension: extension = length – unloaded length.
  2. Plot a line graph with extension on the vertical (y) axis, and force on the horizontal (x) axis. …
  3. Identify the range of force over which the extension of the spring is directly proportional to the weight hanging from it.

Why do springs extend?

Extension springs absorb and store energy as well as create a resistance to a pulling force. These springs are normally attached at both ends to other components and when these components move apart, the spring tries to bring them back together again.

What is the name for energy stored by a stretched spring?

Work is done when a spring is extended or compressed . Elastic potential energy is stored in the spring. Provided inelastic deformation has not happened, the work done is equal to the elastic potential energy stored.

What happens when a spring is stretched too far?

If too much force is applied, one may stretch or compress a spring beyond a certain point that its deformation will occur. On subsequent release of the stress, the spring will return to a permanently deformed shape which will be different from its original shape.

How do you calculate an extension in physics?

  1. If you measure how a spring stretches (extends its length) as you apply increasing force and plot extension (e) against force (F);
  2. F = ke.
  3. F = tension acting on the spring.
  4. e is extension = (l-lo); l is the stretched length and lo is original length, and.
  5. k is the gradient of the graph above.

What is meant by extension in physics?

Extension happens when an object increases in length, and compression happens when it decreases in length. The extension of an elastic object, such as a spring, is described by Hooke’s law: force exerted by a spring = extension × spring constant.

How is Extension calculated using Hooke's Law?

Hooke’s Law states that the force needed to compress or extend a spring is directly proportional to the distance you stretch it. As an equation, Hooke’s Law can be represented as F = kx, where F is the force we apply, k is the spring constant, and x is the extension of the material (typically in meters).

Article first time published on

What is the relationship between the force and the extension of a spring?

For a given spring and other elastic objects, the extension is directly proportional to the force applied. For example, if the force is doubled, the extension doubles. This works until the limit of proportionality is exceeded.

What is the maximum extension of the spring?

The maximum extension should be 2F/k . F/k is the extension in the spring in the equilibrium position . Maximum extension should be double of that . Work energy theorem also gives maximum extension to be 2F/k .

Which law relates the force and extension of a stretched spring?

Hooke’s Law is a principle of physics that states that the that the force needed to extend or compress a spring by some distance is proportional to that distance.

Does stretching a spring make it stronger?

In the case of an extension or torsion spring, there are less coils working together to provide that extension or torque so, again, you spring will be stronger, but it will be under more stress.

Can coil springs be stretched?

Yes, a coil spring can be stretched and then shortened increasing it’s rate and maintaining stock ride height, at least for a little while. In order to stretch the coil the steel would have to be stretch beyond it’s yield point. … You can also find more information on our Cutting Coil Springs page.

How do you calculate how far a spring will stretch?

  1. F=kx.
  2. F=mg=0.04×9.81=0.3924N.
  3. ∴ 0.3924=30×x.
  4. x=0.392430=0.01308m.
  5. 0.20+0.01308=0.21308m.
  6. =21.3cm.

What happens when a spring is compressed?

When you compress a spring, the potential energy is stored in the mechanical bonds between atoms, which you can think of as little springs. The spring as a whole can’t decompress – until it breaks – but little chunks can decompress as they come off. Most of the stored energy goes into decompressing each small part.

What is Hooke's law of elasticity?

Hooke’s law, law of elasticity discovered by the English scientist Robert Hooke in 1660, which states that, for relatively small deformations of an object, the displacement or size of the deformation is directly proportional to the deforming force or load.

How does doubling the stretch of a spring affect the spring force?

If the stretch of a spring is doubled, the force it exerts is also doubled.

What is K physics?

Boltzmann constant, (symbol k), a fundamental constant of physics occurring in nearly every statistical formulation of both classical and quantum physics. … The molar gas constant R is defined as Avogadro’s number times the Boltzmann constant.

Does a stretched spring have potential energy?

As soon as the spring is stretched or compressed, there is positive potential energy stored in the spring.

What happens to the store of elastic potential energy of the resistance band when the band is stretched?

The more an elastic band stretches, the more elastic potential energy exists. Elastic energy is energy stored in objects when they are under temporary strain, such as being stretched or squashed. The energy is released when the object returns to its original shape.

What is the extension of meaning?

an act or instance of extending, lengthening, stretching out, or enlarging the scope of something. the state of being extended, lengthened, or stretched out. that by which something is extended or enlarged; an addition: a four-room extension to a house.

What is extension example?

The definition of an extension is an addition such as to a building, an extra phone line connected to the main line or an extra amount of time given to someone to pay a debt. An example of an extension is adding a second story to a single story house. An example of an extension is line two on a business line.

What does elastic limit mean?

elastic limit, maximum stress or force per unit area within a solid material that can arise before the onset of permanent deformation. When stresses up to the elastic limit are removed, the material resumes its original size and shape. Stresses beyond the elastic limit cause a material to yield or flow.

How do you choose a spring extension?

Measure the space provided for the spring to fit into, also measure the distance between the mounting pieces where the extension spring shall be hooked too consider the length inside hooks. It is best for the extension spring to be pre-loaded so try to make the length inside hooks a little bit smaller for these cases.

How can a student measure the extension of a spring?

  1. Set up the apparatus as in the diagram.
  2. Add a 10 g mass to the holder and record the spring length.
  3. Add another 10 g mass and record the new spring length.
  4. Take away the previous spring length from the new length to calculate the extension (the difference).
  5. Repeat by adding 10 g masses until 100 g is reached.

What is the relationship between work done and elastic potential energy in stretching a spring?

Work is done when a spring is extended or compressed . Elastic potential energy is stored in the spring. Provided inelastic deformation has not happened, the work done is equal to the elastic potential energy stored.

How do you calculate spring?

Determining Spring Force Meaning, if the material returns to the dimension it had before the load or stress was applied, its deformation is reversible, non-permanent, and it ‘springs back. ‘ The spring force formula is expressed through the equation: F = – kx.

How do you calculate spring constant from force and extension?

As per the Hooke’s Law, if spring is stretched, the force exerted is proportional to the increase in length from the equilibrium length. The formula to calculate the spring constant is as follows: k= -F/x, where k is the spring constant. F is the force and x is the change in spring’s length.

What is Hooke's law for stress and strain?

Hooke’s law states that the strain of the material is proportional to the applied stress within the elastic limit of that material. When the elastic materials are stretched, the atoms and molecules deform until stress is applied, and when the stress is removed, they return to their initial state.
