LIST IN STABILITY. HEEL – A heel is a “temporary” inclination of a ship, caused by outside forces such as winds, waves, or during a ship’s turn.

What is heeling moment of a ship?

Abstract. Heeling moments can be caused by wind, by the centrifugal force in turning, by crowding of passengers on one side, by towing, or by the tension in the cable that links two vessels during operations at sea. Dividing a heeling moment by the displacement force we obtain a heeling arm.

What is angle of heel?

marine. A steady angle of heel created by an external force, such as wind or waves.

What is trim and heel?

An offset or deviation from normal on this axis is referred to as trim or out of trim. Roll. The tilting rotation of a vessel about its longitudinal/X (front-back or bow-stern) axis. An offset or deviation from normal on this axis is referred to as list or heel.

Why do ships turn heels?

For equilibrium, there must be an equal and opposite force, called the centrifugal force. … The underwater form of the ship and centrifugal force on it cause the ship to heel to starboard. These two forces produce a couple which tends to heel the ship away from the centre of the turn.

What is trim and list of ship?

Listing vs Rolling vs Trimming “Listing” is a nautical term to describe when a vessel takes on water and tilts to one side. A ship can list either to port (left) or starboard (right). By contrast, a ship is said to be “trimming” when she tips forward or backward.

What is the difference between heel and list?

A vessel is said to be heeled when it is inclined by an external force, e.g. from waves or the wind. The term “loll” describes the state of a vessel which is unstable when upright and which floats at an angle from the upright to one side or the other.

What are the three types of ship stability?

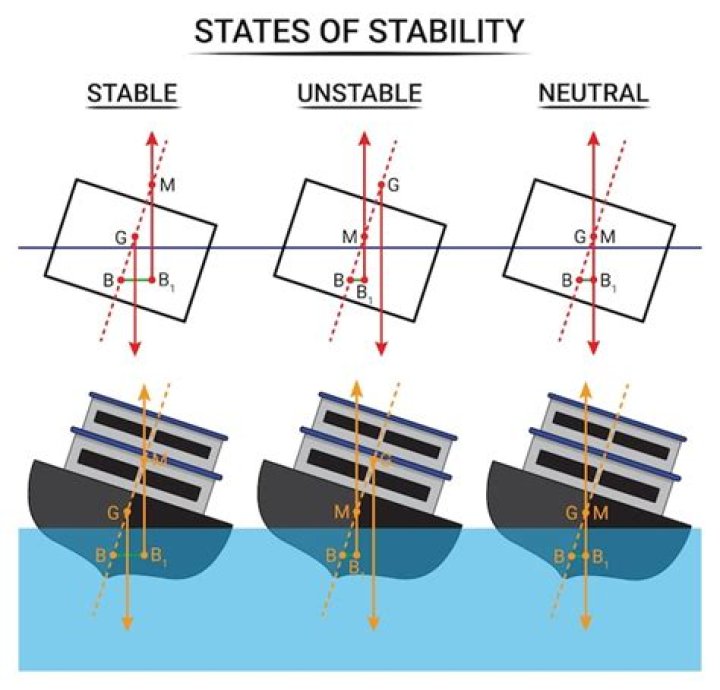

  • Stable Equilibrium: Study the figure below. …
  • Neutral Equilibrium: …
  • Unstable Equilibrium:

What are the 3 basic motion of the ship?

  • Yawing (Vertical rotation – Z-axis)
  • Rolling (Longitudinal rotation – X-axis)
  • Pitching (Transverse rotation – Y-axis)
What is draft in ship?

A boat’s draft is simply the distance between the waterline and the deepest point of the boat. Expressed another way, boat draft is the minimum amount of water required to float the boat without touching the bottom. … With the drive up, the lowest point on the boat will be the keel—the actual bottom of the boat.

Article first time published on

What is the heel?

1a : the back of the human foot below the ankle and behind the arch. b : the part of the hind limb of other vertebrates that is similar in structure to the human heel nipping at the cow’s heels.

What is initial stability of a ship?

Initial stability or primary stability is the resistance of a boat to small changes in the difference between the vertical forces applied on its two sides. … For purposes of stability, it is advantageous to keep the centre of gravity as low as possible in small boats, so occupants are generally seated.

What is heel sailing?

Heeling is the boat “tipping” to one side or the other; it is caused primarily by the force of the wind on the sails; although it can be caused by weight such as crew or excess cargo. In our class, we will be referring to heeling as a result of the force of wind on the sails.

What is static stability of ship?

What is static stability? It is defined as the ability of a ship to regain its upright equilibrium position, after the removal of external factor which caused the vessel to heal at an angle. It gives the stability information of a vessel under the condition that the outside water is static.

What is damage stability of ship?

marine. Stability of a flooded ship. When water runs into a ship following an accident, different scenarios can take place. The ship may sink due to flooding of so many compartments that there is not enough buoyancy to keep the vessel afloat.

What makes a ship unstable?

As a result of the weight shift within the ship, the center of gravity of the ship now shifts from ‘G’ to ‘G1’. … It is this reduction in the metacentric height, or rise in the CG of the ship due to free surface effect, that reduces the stability of the ship or may even render it unstable.

What is ship heel?

HEEL – A heel is a “temporary” inclination of a ship, caused by outside forces such as winds, waves, or during a ship’s turn.

What is ship Stability list?

marine. A steady angle of heel created by forces within the ship. For example, when the ship is inclined due to her asymmetric construction, or by shifting a weight transversely within the ship. The list reduces of ship’s stability.

What is tonnage in shipping?

Tonnage is a measure of the cargo-carrying capacity of a ship, and is commonly used to assess fees on commercial shipping. … The term derives from the taxation paid on tuns or casks of wine. In modern maritime usage, “tonnage” specifically refers to a calculation of the volume or cargo volume of a ship.

What is MCT 1cm?

The MCT 1 cm, or MCTC, is the moment required to change trim by 1 cm, and may be calculated using the formula: MCT 1 cm = W × GM L 1 00L. where. W = the vessel’s displacement in tonnes GM L = the longitudinal metacentric height in meters L = the vessel’s length in meters.

What is angle of loll in ship?

Angle of loll is the state of a ship that is unstable when upright (i.e. has a negative metacentric height) and therefore takes on an angle of heel to either port or starboard. … When this occurs, the vessel goes to neutral equilibrium, and the angle of heel at which it happens is called angle of loll.

What is rolling and pitching?

Rolling is a rotation around a longitudinal axis, pitching is a rotation around the transverse axis and yawing is a rotation around the vertical axis.

What is surge and sway?

SURGE – Moving forwards and backwards along the longitudinal horizontal axis is called SURGING. SWAY – Moving left and right along the lateral horizontal axis is called SWAYING. HEAVE – Moving up and down along the vertical axis is called HEAVING.

How do ships reduce pitching?

The simplest anti-pitching imaginable is the hydrofoil section. This anti-pitching consists of a pair of hydrofoil section attached to the hull surface at the bow part of the ship. The fins should be fitted as low as possible to avoid emergence out of water.

What is TCG in ship stability?

More away the COG is from the centerline, the larger will the ship be listed. Sometimes this distance is also referred as TCG (transverse center of gravity)

What is transverse stability?

Transverse Stability is the ability of the vessel to return to vertical when she has been heeled. The heeling could be because of an external force including the action of the sea and swell. It is always necessary to maintain stability even when a vessel has altered distribution of weights within the ship.

What is longitudinal gravity center?

[‚län·jə′tüd·ən·əl ′sen·tər əv ′grav·əd·ē] (naval architecture) That point at which the combined weight of all the items that constitute a ship’s weight are considered to be concentrated; usually stated as either aft or forward of the middle perpendicular or the midship frame.

What is waterline in ship?

A ship’s waterline is the line where its hull meets the surface of the water. … It is positioned amidships on both sides of a vessel’s hull and indicates the draft of the ship and the legal limit to which a ship may be loaded for specific geographical areas and seasons of the year.

What is depth of ship?

shipbuilding measurements In ship: Naval architecture. The depth is measured at the middle of the length, from the top of the keel to the top of the deck beam at the side of the uppermost continuous deck.

What is Quarter mean draft?

To minimise these errors we finalise the draft of the vessel by having mean of means draft. This is also called Quarter mean draft. Mean of means is considered to be the accurate draft of the vessel at the midship. This is the draft we need to enter in the trim and stability booklet.
