1. DRY EXPANSION EVAPORATORS Basic principle and working. Introduction • In an evaporator, the refrigerant boils or evaporates and in doing so absorbs heat from the substance being refrigerated. • The name evaporator refers to the evaporation process occurring in the heat exchanger.
What is the difference between dry expansion evaporator and flooded evaporator?
The main difference between dry and flooded evaporators is that the flooded evaporator is full of liquid refrigerant. … The dry evaporator design is the most common: the liquid refrigerant enters and flows through the evaporator and is slowly boiled off (evaporated), leaving the evaporator as a vapor.
What is a direct expansion evaporator?
A direct expansion system enables the most compactly designed refrigerant system. A direct expansion system eliminates the use of a secondary coolant loop and uses the refrigerant to directly cool the desired payload via a cold plate. … In a DX system, the evaporator absorbs heat directly from the payload.
What is dry type evaporator?
An evaporator is called dry type when a portion of the evaporator is used for superheating the refrigerant vapour after its evaporation. … The refrigerant from expansion valve is fed to these tubes. The liquid refrigerant evaporates inside the tubes and cools the air whose density increases.What is difference between flooded type and DX type evaporator?
An important difference between a flooded evaporator and a direct expansion (DX) evaporator is that the flooded evaporator operates in conjunction with a low-pressure receiver. … Unlike in a direct expansion (DX) evaporator, the refrigerant is not fully evaporated and superheated at the flooded evaporator outlet.
Which evaporator is known as extended surface evaporator?
Finned Evaporator Since the fins greatly increase the contact area of heat transfer surface, finned evaporators are also called as extended surface evaporators. They are generally used for applications, where the refrigeration temperature is above 0C.
What are the symptoms of a flooded evaporator?
A telltale sign that a compressor’s crankcase is being flooded with refrigerant will be a cold, frosted, or sweaty crankcase. You may also see foaming oil in the sight glass with a low oil level. Higher-than-normal current draws also will be present.
What are the types of evaporator used in refrigerator?
- slim evaporators ;
- cubic evaporators;
- two-flow evaporators ;
- floor-mounted evaporators.
What are the types of evaporator?
- Natural/forced circulation evaporator.
- Falling film evaporator.
- Rising film (Long Tube Vertical) evaporator.
- Climbing and falling-film plate evaporator.
- Multiple-effect evaporators.
- Agitated thin film evaporators.
- Problems.
- Marine use.
DX is short for Direct Expansion which means that the refrigerant expands (produces the cooling effect) in a coil that is in direct contact with the conditioned air that will be delivered to the space. … Chillers and DX units are the two main type of equipment used for air conditioning.
Article first time published onWhat is a DX evaporator?
Evaporator coils, commonly referred to as DX (direct expansion) coils, are used to cool and/or remove moisture from air streams. A liquid-vapor mixture of refrigerant enters the coil and cools the air as it evaporates, eventually leaving the coil as a gas.
What is a flooded chiller?
The flooded evaporator is a device which is used to control and maintain the required level of liquid refrigerant in evaporator and this evaporator is used to store the liquid refrigerant with the help of a drum. Flooded evaporator helps to run the refrigeration system cleanly by maintaining the constant liquid level.
Why is it called direct expansion?
Direct Expansion means that the refrigerant expands to produce the cooling effect in a coil that is in direct contact with the conditioned air that will be delivered to the space.

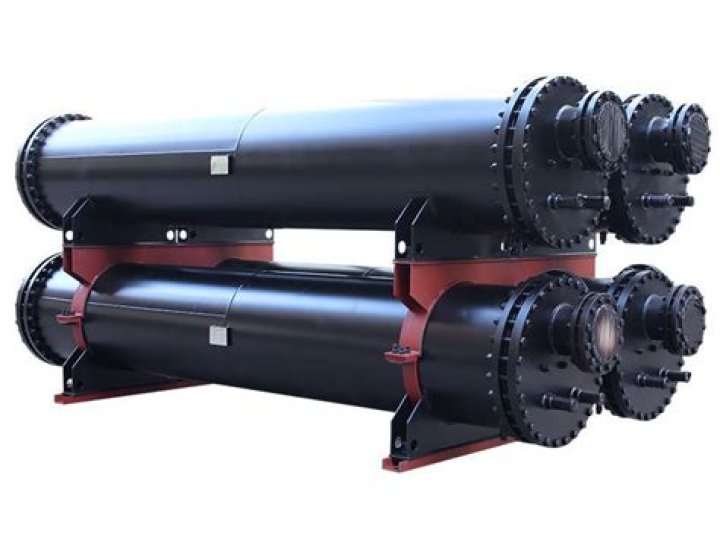

What is shell and tube evaporator?
The main function of Shell & Tube Type Evaporator is to act as a heat exchanger in a vessel form. This is mainly done to cool closed circuit for re-circulating fluid flow. … The refrigerants passed through the expansion device that passed into tubes and evaporates to produce a cooling effect.
What is the correct superheat for a flooded evaporator?
When ambient air temp (Outside air temp) is 75-85 degrees the superheat should be 12-15 degrees, if the ambient temperature is 85 degrees or over the superheat should be 8-12 degrees. 5. If superheat is low then flooding the evaporator. Note: Do not adjust charge yet.
What is the flooded evaporator?
Flooded evaporators: Typically used in large applications, they come in several types and technologies but essentially, a flooded evaporator is a container for liquid refrigerant. It becomes cold because of evaporation of the refrigerant as it boils off and exits.
What causes the evaporator to flood?
Compressor floodback is a common cause of HVAC/R system failure. Floodback occurs when uncontrolled liquid refrigerant enters the compressor during system operation. In an HVAC/R system, the refrigerant exits the evaporator and enters the compressor in a vapor state.
What are some typical problems on the liquid side of a liquid cooling evaporator?
Moisture from the air freezes onto the evaporator coils (the cooling coils in the freezer) and forms an insulating barrier to heat transfer. Airflow also decreases as the passages narrow due to ice buildup. Each evaporator has a defrost cycle to melt frost/ice that has built up on the evaporator coils.
How can flooded starts be prevented?
How can flooded starts be prevented? install a crankcase heater or pump-down solenoiD.
Which is the most common type of evaporators?
Basket types can also be used when the liquor may result in scale. Long-tube vertical evaporators — The three types of long-tube vertical evaporators are the most popular evaporators used today. More evaporation is accomplished in these units than in all other types combined.
Which type of evaporator is generally used to cool drinking water?
Which type of evaporator is generally used to cool drinking water? Explanation: The shell and coil evaporators are the dry expansion evaporators used to chill water. The shell may be sealed or open. If the shell is sealed, then it is used for cooling drinking water.
Which is the simplest type of evaporator?
Bare tube Evaporator: These are constructed of either steel pipe or copper tubing. These are the simplest type of evaporators.
What are the four 4 classifications of evaporator?
Evaporators may be classified into falling film evaporators (in which evaporation takes place from the film interface with no nucleate boiling at the wall), nucleate boiling evaporators (in which wall nucleate boiling occurs over part or all of the heat transfer surface), flash evaporators and direct contact …
How many types of expansion are there?
In refrigeration and air conditioning applications, there are two main types of expansion valves: thermostatic expansion valves (TXVs), and automatic, or constant-pressure, expansion valves (AXVs).
What does the evaporator do in a refrigerator?
The evaporator is located inside a refrigerator and is the part that makes the items in the refrigerator cold. As the refrigerant turns from a liquid into a gas through evaporation, it cools the area around it, producing the proper environment for storing food.
What is refrigeration evaporator?
Evaporator: This is the part of the refrigeration system that is doing the actual cooling. Because its function is to absorb heat into the refrigeration system (from where you don’t want it), the evaporator is placed in the area to be cooled. … The refrigerant vaporizes from the heat it absorbs heat in the evaporator.
What is the difference between an evaporator and a condenser?
The evaporator coil is the part of an air-conditioning system that removes heat and moisture from indoor air to cool it. The condenser coil takes that heat and releases it outside.
What is a VRV system?
VRV is a technology that alternates the refrigerant volume in a system to match a building’s precise requirements. Only a minimum amount of energy is required for a system to maintain set temperatures, and ensure that it automatically shuts off when no occupants are detected in a room.
What is VRF system?
Also referred to as a VRF system, variable refrigerant flow is a technology that circulates only the minimum amount of refrigerant needed during a single heating or cooling period. This mechanism introduced the opportunity for end users to individually control several air conditioning zones at one time.
What is a VAV terminal unit?
A VAV terminal unit, often called a VAV box, is the zone-level flow control device. It is basically a calibrated air damper with an automatic actuator. The VAV terminal unit is connected to either a local or a central control system.
What is a high side float?
The HT100, HT200, and HT300 High Side Floats (Float Drain Regulators) are typically used to drain condensers to chillers, recirculators, controlled pressure receivers, or flooded evaporators; to drain hot gas supply mains; or to drain liquid condensate from heat reclaim coils.
