DCB. The Data Control Block (DCB) parameter details the physical characteristics of a dataset. This parameter is required for datasets that are newly created in the job step. LRECL is the length of each record held within the dataset. RECFM is the record format of the dataset.

What type of information does the DCB contain?

DCB values from cataloged data sets The system copies the DSORG, RECFM, OPTCD, BLKSIZE, LRECL, KEYLEN, and RKP values from the label. If any of these values are coded in subparameters following the dsname, the system uses the coded values.

What is PARM parameter in JCL?

PARM parameter is an optional keyword parameter in JCL. PARM parameter is a way to pass a data from JCL to the program but the maximum amount of data which we can send to the program using the PARM Parameter is 100 character.

What is DSN in JCL?

DSN, which is an accepted abbreviation for the parameter DSNAME, which identifies the real name of a data set. DISP, which identifies the data set HLQ. PAYDS as a new data set; that is, one the system is to create when this job is submitted for processing.

What is Blocksize in JCL?

Block size (BLKSIZE) specifies the maximum length, in bytes, of a physical block of storage in MVS. If BLKSIZE(0) is specified, the system will determine the optimal block size based on the maximum record length (LRECL) and the physical characteristics of the disk, or approximately half of a physical track.

What is Referback JCL?

A backward reference is a reference to an earlier statement in the job or in a cataloged or in-stream procedure called by a job step. This is a way to reduce or simplify the coding in JCL. The information that is referred back should be in the same JOB.

What is space parameter in JCL?

SPACE Parameter in JCL is an Optional Keyword parameter that indicates the OS, the amount of memory allocation needed for a dataset while creating it and indicates the allocation units that the requested memory to be provided in. … Instruct the system on the specific tracks that needs to be allocated to a data set.

What is volume in JCL?

VOLUME parameter used to identify the volume(s) on which the dataset resides or will reside. The volume request for new datasets can be private volume, retention of the volume, volume by serial number or the volume that other datasets uses. VOLUME is optional parameter.

What is DCB Cobol?

DCB. The Data Control Block (DCB) parameter details the physical characteristics of a dataset. This parameter is required for datasets that are newly created in the job step. LRECL is the length of each record held within the dataset. RECFM is the record format of the dataset.

What is dataset in Cobol?

z/OS concepts. z/OS® manages data by means of data sets. The term data set refers to a file that contains one or more records. The record is the basic unit of information used by a program running on z/OS. Any named group of records is called a data set.

Article first time published on

What is Dsname in JCL?

In JCL DSNAME is an optional Keyword parameter which contains the name of the Data Set. DSNAME is also written as DSN which stands for Data Source Name or Data Set Name.

What is DD dummy in JCL?

DD statement IN1 defines a dummy data set. The DCB parameter supplies data control block information not supplied in the program. Without it, the step might be abnormally terminated.

What is Steplib and Joblib in JCL?

JOBLIB and STEPLIB in JCL both are used to specify the load libraries so that that the programs that are being used in that JCL/JOB are searched in these libraries. … If it does not find it in there, then it searches in the SYSTEM LOAD LIBRARIES. So STEPLIB overrides the JOBLIB.

How pass data from COBOL to JCL?

You can pass the data from COBOL to JCL using RETURN-CODE. This is a global variable which can be accessed by JCL and COBOL. But this is used to hold return code of program. MOVE 04 TO RETURN-CODE.

What is Msglevel parameter in JCL?

MSGLEVEL is an optional Keyword parameter so if you do not define this parameter, then the MVS operating system will by define this MSGLEVEL by default. Use MSGLEVEL to inform the JCL about the messages that we need to print and to specify the device in the MSGCLASS parameter.

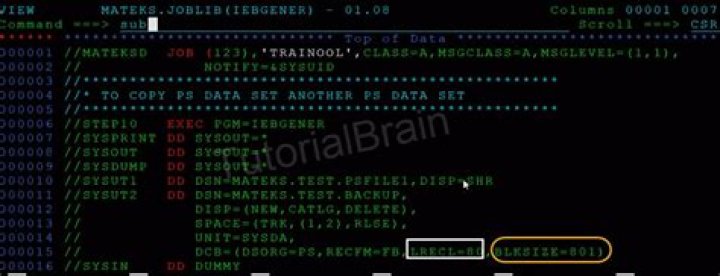

What is Iebgener utility in JCL?

JCL – IEBGENER Utility The IEBGENER utility is a copy program. One of its many uses is to copy a sequential data set, a member of a partitioned data set (PDS) or PDSE. IEBGENER also can filter data, change a data set’s logical record length (LRECL) and block size (BLKSIZE), and generate records.

What are VSAM files?

VSAM or Virtual Storage Access Method is a file storage access method used in MVS, ZOS, and OS/390 operating systems. It was introduced by IBM in 1970’s. It’s a high-performance access method to organize data as files in mainframes. VSAM is used by programming languages in mainframes to store and retrieve data.

How many bytes is a record?

Each record is 512 bytes. We can fit the first on one block, but the second record will need to span blocks one and two. After placing the first record, we have 992-512=480 free bytes in the first record.

What is PDS in mainframe?

A partitioned data set (PDS) is a data set containing multiple members, each of which holds a separate sub-data set, similar to a directory in other types of file systems.

How do you give a space parameter in JCL?

The Most common way to defining SPACE Parameter: blksize, The above SPACE Parameter has two positional sub-parameters. 1) Unit of measurement type – Most used values is TRK, CYL or BLKSIZE. The RECLGTH(i.e. the value of record length) is also used in few cases.

What is the maximum space parameter in JCL?

When defining VIO data sets, be aware that a SPACE parameter in the JCL or the SPACE value defined for a data class will override the system default space value. The size of a data set is limited to 65,535 tracks per volume except for the following types of data sets: Hierarchical File System (HFS)

What is backward reference?

A backward reference is a reference to an earlier statement in the job or in a cataloged or in-stream procedure called by a job step.

How do I accept Sysin data in Cobol?

  1. We can use the ACCEPT Statement to accept the value from the JCL or a system defined value.
  2. ACCEPT IDENTIFIER FROM [Mnemonic-name]
  3. ACCEPT EMPLOYEE-DETAILS. …
  4. SYSIN Parameter is used in JCL(JOB CONTROL LANGUAGE) to pass the data from JCL to COBOL Program. …
  5. a) //SYSIN DD * values…

How is GDG defined?

Generation Data Groups (GDGs) are group of datasets related to each other by a common name. The common name is referred as GDG base and each dataset associated with the base is called a GDG version. For example, MYDATA.

What is disposition in JCL?

JCL DISP (Disposition) parameter is a Keyword parameter which is used to describe the status of a data set used in JCL to the OS. It indicates the OS on what should be done with the dataset after JOB/STEP termination.

What is unit cart in JCL?

UNIT parameter used to ask the system to place the dataset on a specific device or a group of devices or the same device as another dataset. … The UNIT parameter can also tell the system how many devices to assign and request that the system defer mounting the volume until the data set is opened.

What is class parameter JCL?

What is the CLASS Parameter? JCL CLASS Parameter is a Keyword Parameter and CLASS Parameter defines an input CLASS in of a schedule JOB. It is used to tell the operating system about the nature of the job which we are submitting.

What is linkage section in Cobol?

LINKAGE SECTION defines the data items to receive the data from called program to the current program by using CALL. LINKAGE SECTION also defines the data items to receive the data from JCL through PARM operand. … The data items should match the PIC clause declaration in both calling and called programs.

How do you make PDS?

The steps for creating a PDS are the same as creating a sequential data set, except you specify space for the directory. After selecting the DATASET option (option 2) from the Utility Selection Menu, type A on the OPTION line and specify three data set qualifiers in the three ISPF LIBRARY fields.

What is PDS member?

A PDS is stored only on a direct access storage device. It is divided into sequentially organized members, each described by one or more directory entries. Each member has a unique name, 1 to 8 characters long, stored in a directory that is part of the data set.

What is Sysprint in JCL?

SYSPRINT is the usual way you obtain printed output from a z/OS program. Typically its is coded in JCL as. //SYSPRINT DD SYSOUT=A. The effect of this statement is to have JES2 (or JES3) provide some temporary disk space on the “SPOOL” device to hold the printed information.
