CVD is a technique where a solid material is deposited from a vapor by some chemical reaction occurring on or in the vicinity of a normally heated substrate surface (Fig. 4). CVD is an example of vapor-solid reaction. The process is often used in the semiconductor industry to produce thin films.

What is the purpose of CVD?

CVD is commonly used to deposit conformal films and augment substrate surfaces in ways that more traditional surface modification techniques are not capable of. CVD is extremely useful in the process of atomic layer deposition at depositing extremely thin layers of material.

Which materials are used external CVD method?

Materials used in CVD coating systems range from silicon compounds to carbon, to fluorocarbons or organofluorine, and nitrides like titanium nitride.

What is CVD in nanotechnology?

Chemical vapor deposition (CVD) is a chemical process used to produce high-purity, high-performance solid materials. The process is often used in the semiconductor industry to produce thin films. … CVD is used in the production of microchips, integrated circuits, sensors, and protective coatings.

How does a CVD machine work?

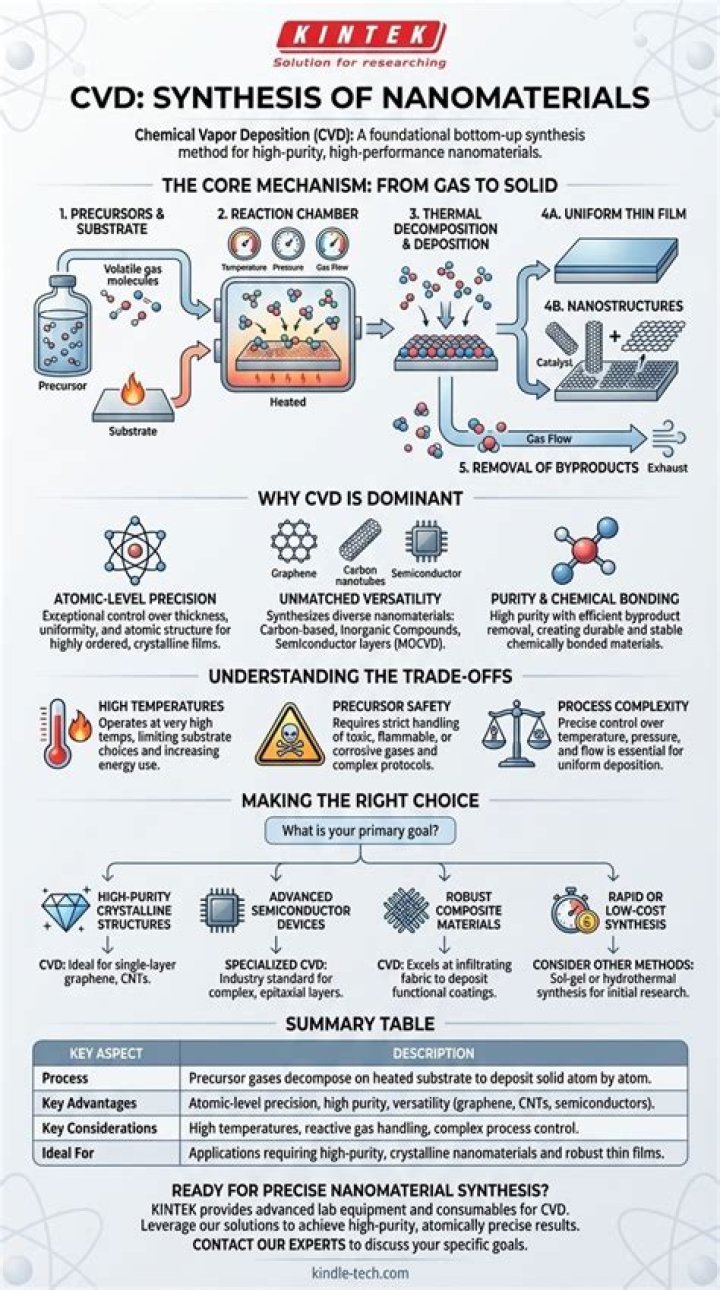

How Does CVD Work? Precursor gases (often diluted in carrier gases) are delivered into the reaction chamber at approximately ambient temperatures. As they pass over or come into contact with a heated substrate, they react or decompose forming a solid phase which and are deposited onto the substrate.

What is CVD coated?

Chemical vapour deposition (CVD) is a coating process that uses thermally induced chemical reactions at the surface of a heated substrate, with reagents supplied in gaseous form. These reactions may involve the substrate material itself, but often do not.

Who invented CVD?

This technology was invented by the Head of the Chemistry Department of Harvard University, Professor Roy Gordon, in the 1970s and perfected by his team during the 1980s.

What is CVD Graphene?

CVD graphene is created in two steps, the precursor pyrolysis of a material to form carbon, and the formation of the carbon structure of graphene using the disassociated carbon atoms. … One example of these effects is the way the carbon atoms dissolve into certain substrates such as Nickel during the cooling phase.

What is the difference between CVD and PVD?

PVD, or physical vapor deposition, is a line-of-sight coating process which allows for thin coatings and sharp edges. CVD, on the other hand, stands for chemical vapor deposition and is thicker to protect against heat. … Utilizing the correct tool coating protects the tools and materials for best results of the process.

What are the advantages of CVD?

Other advantages include that CVD uses source materials that flow into the process chamber from external reservoirs that can be refilled without contamination of the growth environment, it does not require very high vacuum levels, it can generally process substrates in larger batches than evaporation, and is more …

Article first time published on

Which of the following material Cannot be deposited by CVD method?

AInsulators can be deposited by CVDBMetals can be deposited by evaporationCTungsten is usually deposited by evaporationDMetals can be deposited by sputteringEInsulators and metals can be deposited by Sputtering

What is the sequence of steps involved in CVD process?

A basic CVD process consists of the following steps: 1) a predefined mix of reactant gases and diluent inert gases are introduced at a specified flow rate into the reaction chamber; 2) the gas species move to the substrate; 3) the reactants get adsorbed on the surface of the substrate; 4) the reactants undergo chemical …

What are the different methods adopted in CVD technique?

Depending on material quality, precursors, and the width and structure required, there are various types of CVD processes: thermal, plasma-enhanced (PECVD), cold wall, hot wall, reactive, and so on [21]. CVD growth of GO is consistently a two-step process.

What is the difference between ALD and CVD?

ALD proceeds via 2 half-reactions, done one after the other, while CVD is a continuous process where all reactants are supplied at the same time to grow the film.

Which are methods used to deposit thin films?

  • Low pressure (LPCVD)
  • Plasma enhanced (PECVD)
  • Atomic layer deposition (ALD)

How do you deposit silicon?

There are two primary ways to deposit silicon carbide: physical vapor deposition (PVD) and plasma enhanced chemical vapor deposition (PECVD). Silicon carbide PVD is performed when powder silicon carbide is turned to vapor using one of two methods: either in a high temperature vacuum or with a gaseous plasma.

What is a CVD diamond?

Colorless synthetic diamonds produced by Chemical Vapor Deposition (CVD) are becoming more common in the market. CVD-processed stones are much different from the natural diamonds produced by geologic forces.

What is Pecvd system?

Plasma Enhanced Chemical Vapor Deposition (PECVD) is a process by which thin films of various materials can be deposited on substrates at lower temperature than that of standard Chemical Vapor Deposition (CVD). … We offer numerous innovations in our PECVD systems that produce high-quality films.

Are CVD diamonds real diamonds?

Yes, CVD diamonds are real diamonds. Although grown in a lab, CVD diamonds are gem-quality diamonds that have the same elemental structure and the same physical, chemical and optical properties as their natural counterparts.

What is PVD process?

Physical vapour deposition (PVD) is a process used to produce a metal vapour that can be deposited on electrically conductive materials as a thin, highly adhered pure metal or alloy coating. The process is carried out in a vacuum chamber at high vacuum (10–6 torr) using a cathodic arc source.

What is low pressure CVD?

Low pressure chemical vapor deposition (LPCVD) is a chemical vapor deposition technology that uses heat to initiate a reaction of a precursor gas on the solid substrate. … This reaction at the surface is what forms the solid phase material.

Is CVD sputtering?

PVD is characterized by a process in which the material changes from a condensed phase to a gas phase and then back to the condensed phase of the film (physical process). The most common PVD processes are sputtering and evaporation. Chemical vapor deposition (CVD) is a vacuum deposition method.

What is the difference between Pecvd and CVD?

Plasma-enhanced chemical vapor deposition is a variant of CVD; however, it uses plasma energy instead of only thermal energy to deposit thin films. … PECVD can use various materials as coatings, including metals, oxides, or silicon, which may offer more flexibility than CVD.

How do you exfoliate graphene?

Electrochemical exfoliation is a promising bulk method for producing graphene from graphite; in this method, an applied voltage drives ionic species to intercalate into graphite where they form gaseous species that expand and exfoliate individual graphene sheets.

How do you deposit graphene?

Graphene oxide morphology is difficult to control with most typical solution-based deposition methods such as spin coating or drop-casting. Langmuir-Blodgett method, or LB, in short, has been successfully used to deposit well-defined films of nanoparticles and the method also offers better control over GO deposition.

What is liquid phase exfoliation?

Liquid- phase exfoliation (LPE) is the principal method of producing two-dimensional (2D) materials such as graphene in large quantities with a good balance between quality and cost and is now widely adopted by both the academic and industrial sectors.

What is the difference between CVD and Mocvd?

3.1 Metal organic CVD. Metal organic CVD (MOCVD) is a CVD process for growing epitaxial films, very similar to LPCVD, and is done by flowing precursor gases over the substrate. … Nevertheless, MOCVD is a scalable process amenable to volume manufacturing because many substrates can be simultaneously placed in the chamber.

How does atomic layer deposition work?

Atomic layer deposition (ALD) is a vapor phase technique used to deposit thin films onto a substrate. … In each alternate pulse, the precursor molecule reacts with the surface in a self-limiting way, this ensures that the reaction stops once all of the reactive sites on the substrate have been used.

Which metal can be deposited using CVD techniques in IC fabrication?

In general, PVD is used to deposit titanium, titanium nitrate, tantalum, tantalum nitrate, aluminum and a very thin film of copper called seed layer. CVD is used to deposit tungsten, titanium, again copper seed layer, silicon di-oxide, silicon nitride, etc. Electrochemical deposition is used for depositing copper.

Which of the following gases commonly used in CVD are pyrophoric toxic and flammable?

Hence, Silane and Phosphine are the gases commonly used in CVD that are pyrophoric, toxic, and flammable.

Which two factors must be present for chemical vapor deposition to be successful?

However, CVD processes typically require a high temperature and vacuum environment, and the precursors should be volatile.
