A barometer is a scientific instrument used to measure atmospheric pressure, also called barometric pressure. The atmosphere is the layers of air wrapped around the Earth. That air has a weight and presses against everything it touches as gravity pulls it to Earth. Barometers measure this pressure.

How does a barometer measure pressure?

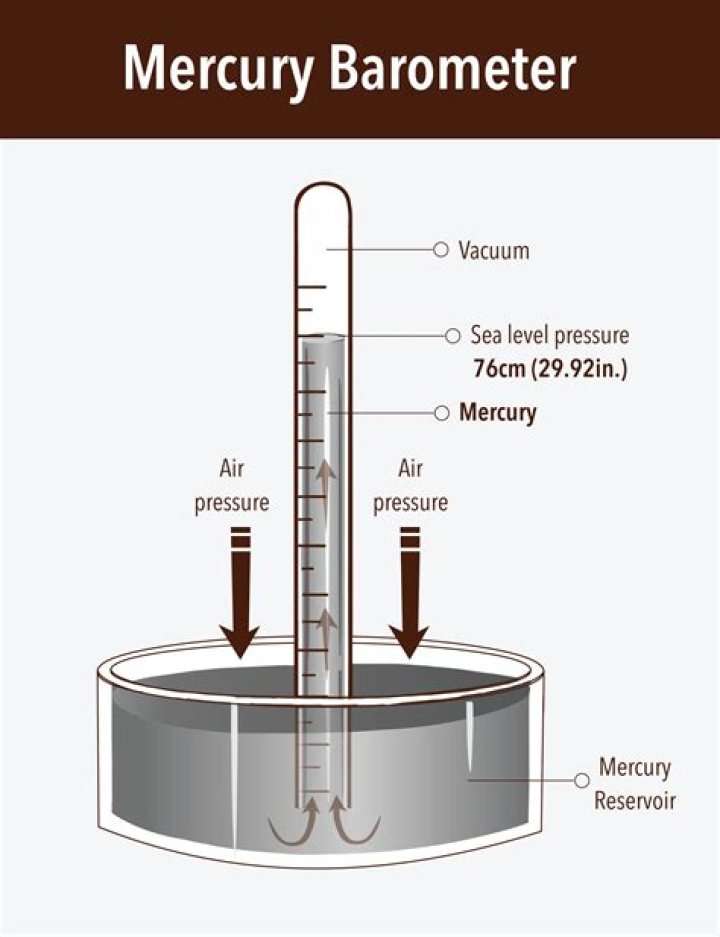

The barometer works by balancing the mercury in the glass tube against the outside air pressure, just like a set of scales. As air pressure increases—that is, as the air becomes heavier—it pushes more of the mercury up into the tube. … So the level of mercury in the tube provides a precise measure of air pressure.

What does a barometer measure Mcq?

A barometer is used to measure local atmospheric pressure.

Is barometer used to measure liquid pressure?

Barometer measures pressure exerted upon a column of liquid, it is called a manostat, or manometer. Atmospheric pressure is often measured in millibars. Thus, the gauge used to measure atmospheric pressure is a form of manometer called a barometer.

Why mercury is used in barometer?

Mercury is employed in the barometer because its density is sufficiently high for a relative short column to be obtained. and also because it has very small vapour pressure at normal temperature. High density scales down the pressure head(h) to repesent same magnitude of pressure in a tube of smaller height.

Which device is used for measuring pressure?

Device: – A manometer is the device used for measuring the pressure exerted by liquids.

Which is used to measure liquid pressure?

An instrument used to measure the pressure of a liquid is known as a pressure gauge. The simplest form of the pressure gauge is a manometer, which measures the pressure difference.

What is Altimeter used for?

An altimeter is a device that measures altitude—a location’s distance above sea level. Most altimeters are barometric, meaning they measure altitude by calculating the location’s air pressure. Air pressure decreases as altitude increases.

Which of the following can be measured by barometers *?

barometer, device used to measure atmospheric pressure. Because atmospheric pressure changes with distance above or below sea level, a barometer can also be used to measure altitude. There are two main types of barometers: mercury and aneroid.

What is a normal barometer reading?

A barometer reading of 30 inches (Hg) is considered normal. Strong high pressure could register as high as 30.70 inches, whereas low pressure associated with a hurricane can dip below 27.30 inches (Hurricane Andrew had a measured surface pressure of 27.23 just before its landfall in Miami Dade County).

Article first time published on

How do barometers predict weather?

Weather forecasters use a special tool called a barometer to measure air pressure. Barometers measure atmospheric pressure using mercury, water or air. … Forecasters use changes in air pressure measured with barometers to predict short-term changes in the weather.

Why Hg is used in pressure measuring instrument?

As the only metal that is liquid at room temperature, mercury expands and contracts evenly with temperature and pressure changes. These characteristics have made mercury useful in devices used for measuring temperature and pressure, including the following: Barometers measure atmospheric pressure.

What is barometric liquid?

Barometric Liquid ( Defined ) A barometer is an instrument used to measure atmospheric pressure and the liquid inside it used to measure the atmospheric pressure is barometric liquid. Barometer uses Mercury ( A highly Poisonous liquid metal) as it’s liquid.

Why is water not used as a barometric liquid?

Water is not a suitable barometric liquid because: (i) The vapour pressure of water is high, so its vapours in the vacuum space will make the reading inaccurate. (ii) Water sticks with the glass tube and wets it, so the reading becomes inaccurate.

How does a manometer measure liquid pressure?

Liquid manometers measure differential pressure by balancing the weight of a liquid between two pressures. Light liquids such as water can measure small pressure differences; mercury or other heavy liquids are used for large pressure differences.

What is vacuum pressure?

Vacuum pressure is measured relative to ambient atmospheric pressure. It is referred to as pounds per square inch (vacuum) or PSIV. The electrical output of a vacuum pressure transducer is 0 VDC at 0 PSIV (14.7 PSIA) and full scale output (typically 5 VDC) at full scale vacuum, 14.7 (0 PSIA).

What is barometer used for Class 7?

A barometer is an instrument which is used to measure the atmospheric pressure at a certain place or altitude. There are many uses to a barometer. The pressure tendencies which are measured using this instrument can help in the forecasting of short-term changes in the weather conditions of a place.

What are the three types of barometers?

This section covers three types of barometer design: cistern, angle or diagonal, and aneroid.

What is barometer with diagram?

Simple barometer An inverted glass tube is standing in the bath of mercury and air pressure is exerted on the surface of mercury. The pressure at the top of the mercury column is zero as there is a vacuum there.

How can barometer be used as an altimeter?

An aneroid barometer which has its scale calibrated in terms of height of ascent can be used as an altimeter. Since atmospheric pressure decreases with the increase in height above the sea level, therefore a barometer measuring the atmospheric pressure is used to determine the altitude.

How does a barometer measure altitude?

Altitude can be determined based on the measurement of atmospheric pressure. The greater the altitude, the lower the pressure. When a barometer is supplied with a nonlinear calibration so as to indicate altitude, the instrument is called a pressure altimeter or barometric altimeter.

How accurate is barometric altimeter?

With proper calibration, the barometric altimeter of an outdoor watch or handheld will report elevation readings ranging from -2,000 to 30,000 feet with an accuracy of +/-50 feet. Elevation values greater than 30,000 feet can be generated, but may not be accurate due to environmental factors.

What is simple barometer?

A simple barometer consists of a long glass tube (closed at one end, open at the other) filled with mercury and turned upside down into a container of mercury. The barometer works by balancing the mercury in the glass tube against the outside air pressure, just like a set of scales.

Why barometer is used in mobile phones?

What does a phone barometer do? … Whenever you (and your device) experience a change in elevation, the barometer measures the resulting pressure difference. That pressure difference augments the GPS data about your horizontal (x/y) location to produce a more accurate picture of where you are at any given time.

What does inHg mean?

Inch of mercury (inHg and ″Hg) is a unit of measurement for pressure. It is used for barometric pressure in weather reports, refrigeration and aviation in the United States. It is the pressure exerted by a column of mercury 1 inch (25.4 mm) in height at the standard acceleration of gravity.

What is a high air pressure?

A high-pressure area, high, or anticyclone, is a region where the atmospheric pressure at the surface of the planet is greater than its surrounding environment. … Many of the features of Highs may be understood in context of middle- or meso-scale and relatively enduring dynamics of a planet’s atmospheric circulation.

How accurate is a barometer?

Barometers. The most commonly used type of barometer for calibration duties is the Fortin barometer. This is a highly accurate instrument that provides measurement inaccuracy levels of between ±0.03% of full-scale reading and ±0.001% of full-scale reading depending on the measurement range.

Does a barometer measure gauge or absolute pressure?

Absolute pressure is measured relative to a full vacuum. In contrast, the pressure that is measured against atmospheric pressure (also known as barometric pressure) is called gauge pressure. A full vacuum has an absolute pressure reading of 0 PSIA and the average barometric pressure at sea level is ~14.7 PSIA.
