A gable roof is a type of roof design where two sides slope downward toward the walls – and the other two sides include walls that extend from the bottom of the eaves to the peak of the ridge. The purpose of your home’s roof is to protect the entire structure (and you) from weather.

What is a gable roof?

Gabled roofs are the kind young children typically draw. They have two sloping sides that come together at a ridge, creating end walls with a triangular extension, called a gable, at the top.

Why do they call it a gable roof?

One common type of roof with gables, the gable roof, is named after its prominent gables. A parapet made of a series of curves (Dutch gable) or horizontal steps (crow-stepped gable) may hide the diagonal lines of the roof. … Sharp gable roofs are a characteristic of the Gothic and classical Greek styles of architecture.

What is the difference between a gable roof and a hip roof?

The main difference between a hip and gable roof are the slopes on its sides. On a hipped roof, all sides slope downward to the home’s walls. Gable roofs only have two triangle-shaped slopes that extend from the bottom of the roof’s eaves to the peak of its ridge.

What is a gable roof in architecture?

A roof with two slopes that form an “A” or triangle is called a gable, or pitched, roof. This type of roof was used as early as the temples of ancient Greece and has been a staple of domestic architecture in northern Europe and the Americas for many centuries. It is still a very common form of roof.

Are gable roofs good?

Gable roofs are very popular and with good reason. Due to the steeper slope, this roof can easily shed both water and snow, making them perfect for areas that experience heavy rainfall or brutal winters. The snow and rain will easily slide off the roof, lessening the chances of leaks and water damage.

Where is gable roof used?

Often seen in Cape Cod and ranch-style homes, the gable roof is the most common style of roofing in New England. Homes with porches, garages, dormers or additions often utilize a cross gable roof structure; essentially two gables intersect at a 90-degree angle.

Why is gable roof good?

Pros: Gable roofs will easily shed water and snow, provide more space for the attic or vaulted ceilings, and allow more ventilation. Their simple design makes them easier to build and cheaper than more complex designs. Cons: Gable roofs can be problematic in high wind and hurricane-prone areas.

Are gable roofs strong?

Gable Roof Designs Are Not 100% Structurally Sound If the roof’s trusses or framing aren’t properly assembled with adequate support, or if the contractor made simple errors while installing your roof, then gable roofs can certainly be more prone to collapse than roofs of other styles.

Where did gable roof originate?

History of Gable Roofs Gable roofs date back to the early ancient Greek times where they were used in temples. The roofs have been architectural staples in northern Europe and America ever since. A building that faces the street with its gable is called a front-gabled building.

Article first time published on

What is a gable?

A gable is a section of wall located at the end of a pitched roof, between the edges of the intersecting pitches. It is usually triangular and extends from the eaves to the ridge, although the shape and detailing depends on the particular structural system used for the roof.

Where are gable roofs most common geographically?

Gable roofs are most common in cold climates. They are the traditional roof style of New England and the east coast of Canada. Fans of literature in both countries will recognize the roof style from popular novels.

What is gable roof made of?

Almost any type of roofing material can be used on a gable roof, such as asphalt shingles, cedar shakes, metal or tiles made of terra cotta, clay, or concrete. Asphalt is one of the most common materials used for a gable roof, especially if it has a dormer, hips and valleys, because it can reduce the chance of a leak.

What is the difference between an eave and a gable?

Eaves: The eaves are the lower edges of the roof that overhang the home’s exterior walls. … Gable: The A-shaped side wall of the home that forms the peak of the roof is called the Gable. The home above has 2 gables, one on each end of the home. Rake: The rake of the roof is the part that ends over a gable end.

How tall are gable roofs?

Common Peaks Are 60 to 84 Inches The most common pitches for houses are 5/12 and 6/12 and the most common runs are 12 or14 feet, for roofs 24 or 28 feet wide. A 12-foot run has a peak of 60 inches with a 5 pitch, 72 inches with a 6. A 14-foot run would have comparable peaks of 70 and 84 inches.

How do you measure a gable roof?

Calculate the area of the gable using the formula: gable area = width x (height / 2). Using the example width of 25 feet and gable height of 10 feet, the surface area of the gable is 125 square feet: 25 x (10/2) = 125.

What are the advantages and disadvantages of a gable roof?

Gable Roof Advantages: These are easy to design, and they keep costs down, while also providing a slope for water to drain off. Disadvantages: High winds can be a problem for gable roofs if they’re not well constructed, especially if there is too much overhang, in which case, the entire roof could be torn free.

How much does a gable roof cost?

The average cost range to install roofing on a gable roof is $7,000 to $20,000, with most people paying around $9,000 for 1,500 sq. ft. of architectural shingles.

Can you turn a gable roof into a hip roof?

Existing gable roofs can be converted into a hip roof without completely dismantling the entire roofing system. Building a hip roof from scratch will cost more, as it will require more roofing materials. … Hip roofs require more work if it will be used as an extension, as it will require the addition of dormer windows.

Is a gable roof more expensive than a hip roof?

Hip Roof vs Gable Roof Cost Due to the fact that a hip roof requires a more complicated design and build, a hipped roof will cost more than a gabled roof. Hip roofs require more materials, additional seams, more planning, and more labour than the construction of a gabled roof.

What cost more a gable or hip roof?

Hipped roofs are more expensive to frame than gable roofs. Get cost estimates on roofing from local contractors below. Hip roofs are more expensive to build than gable roof because it is a more complex design that requires more building materials including a complex system of trusses or rafters.

What is the best roof design for hurricanes?

Roofs with multiple slopes such as a hip roof (4 slopes) perform better under wind forces than gable roofs (2 slopes). Gable roofs are generally more common because they are cheaper to build. A 30-degree roof slope has the best results.

What is hip and valley roof?

A hip & valley roof is simply a modified or extended hip roof. The shape and pitch of the surfaces are basically the same, however the base shape changes from a simple rectangle to a ‘T’ or ‘L’ shape, on plan.

What are the parts of a roof called?

  • Roof plane: This is the surface of the roof. …
  • Ridge: This is the top or peak of the roof, where two roof planes meet.
  • Valley: This is where two pitched roof faces connect and project inward. …
  • Dormer: This is a roof feature that projects out from the roof face.

What is gable slope?

A gable roof has an equal pitch/slope on each side of the ridge. Typically, a steep pitch gable has an equal 8:12 or greater pitch/slope on both sides of the ridge. Enter a percentage between 0 and 100. Gable, Steep Pitch. A roof style that has a low, single pitch/slope to it.

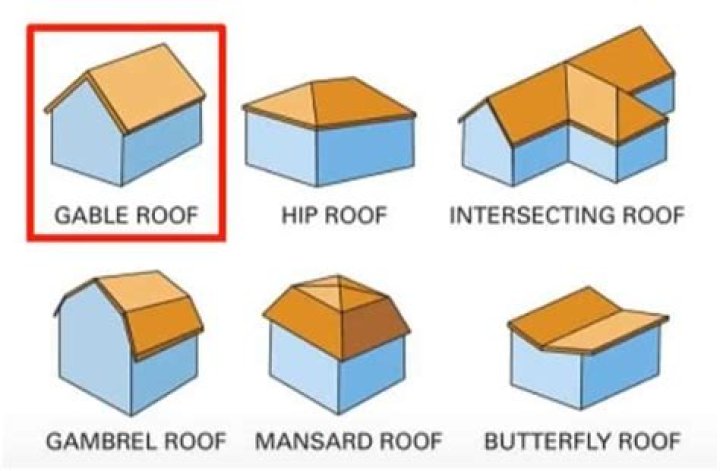

What are the 8 roof types?

  • Gable Roof. Think back to your first crayon drawing of a home. …
  • Clipped Gable Roof. The clipped gable roof goes by several names, including bullnose. …
  • Dutch Gable Roof. …
  • Gambrel Roof. …
  • Hip Roof. …
  • Mansard Roof. …
  • Shed Roof. …
  • Flat Roof (Low Slope Roof)

What is a gable truss?

The gable truss serves as the ‘end cap’ for the roof. They have two top chords, one bottom chord, and multiple vertical posts. Gable trusses are built on each end of the roof framework to support roof sheathing. Gable trusses will cost anywhere from 25% to 50% more than standard-style trusses.
