Duplex is a bidirectional communication system that allows both end nodes to send and receive communication data or signals, simultaneously and one at a time. Both nodes have the ability to operate as sender and receiver at the same time, or take turns sending or receiving data.

What is a duplex computer?

Duplex is a bidirectional communication system that allows both end nodes to send and receive communication data or signals, simultaneously and one at a time. Both nodes have the ability to operate as sender and receiver at the same time, or take turns sending or receiving data.

What is the example of full duplex system?

A commonplace example of full duplex communications is a telephone call where both parties can communicate at the same time. Half duplex, by comparison, would be a walkie-talkie conversation where the two parties take turns in speaking.

What does a duplex system allow you to do?

A duplex communication system allows two or more parties or devices to communicate in both directions. … More than two people can communicate simultaneously. For example, if you have 10 users on a large team wireless system, then all 10 users are free to transmit and receive in real time without restrictions.

What is the difference between simplex and duplex systems?

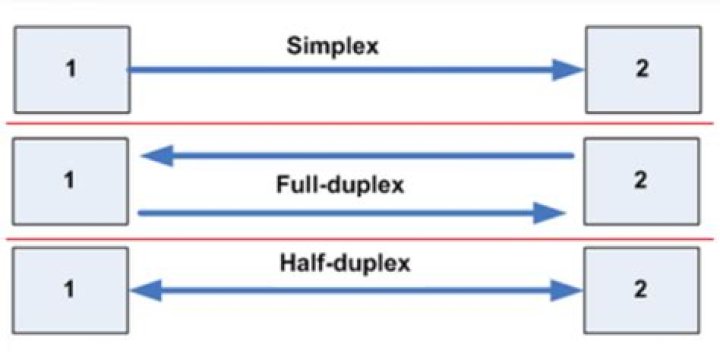

In simplex mode, only one device can transmit the signal. In half duplex mode, both devices can transmit the signal, but one at a time. In full duplex mode, both devices can transmit the signal at the same time.

Is Internet full-duplex?

WiFi connections are running at half-duplex while the wired part of the LAN are on full-duplex. So it seems that by connecting through WiFi, something had to give.

Is Ethernet full-duplex?

To operate in Full-duplex mode, Ethernet requires at-least two pairs of wires. One pair is used to send data and other pair is used to receive data, simultaneously. These days, FastEthernet, Gigabit Ethernet and 10 Gigabit Ethernet operates in full-duplex mode.

Is WiFi full or half-duplex?

WiFi is a half duplex form of data transmission, which is to say, data packets are sent back and forth in sequence. It happens so quickly that it mimics seamless, two-way data transmission, but in fact, data cannot be both sent and received simultaneously.

Why would you use half-duplex?

half-duplex – a port can send data only when it is not receiving data. In other words, it cannot send and receive data at the same time. Network hubs run in half-duplex mode in order to prevent collisions. Since hubs are rare in modern LANs, the half-duplex system is not widely used in Ethernet networks anymore.

Can is full-duplex or half-duplex?

A full-duplex device is capable of bi-directional network data transmissions at the same time. Half-duplex devices can only transmit in one direction at one time. With half-duplex mode, data can move in two directions, but not at the same time.

Article first time published on

Are cell phones full-duplex?

A cell phone is a full-duplex device. That means that you use one frequency for talking and a second, separate frequency for listening. Both people on the call can talk at once.

Is a hub half-duplex?

A hub has no memory to store data and can handle only one transmission at a time. Therefore, hubs can only run in half duplex mode. Due to a larger collision domain, packet collisions are more likely in networks connected using hubs than in networks connected using more sophisticated devices.

Is Bluetooth half-duplex?

half-duplex link — connecting to a computer printer, for example — Bluetooth can transmit up to 721 kilobits per second (Kbps) in one direction, with 57.6 Kbps in the other. If the use calls for the same speed in both directions, a link with 432.6-Kbps capacity in each direction can be made.

What is a half duplex house?

What Is a Half Duplex? A half duplex is just one side of a duplex. But, instead of one owner, each side has a separate owner. You own your own space but you’re close enough to plant a joint garden or invite a neighbor over for morning coffee.

What is half duplex example?

An example of a half-duplex device is a walkie-talkie, a two-way radio that has a push-to-talk button. … Examples are broadcast radio and television, garage door openers, baby monitors, wireless microphones, and surveillance cameras. In these devices, the communication is only in one direction.

Is an example of simplex device?

Example of Simplex mode of transmission are Keyboard and monitor. However example of Half-Duplex mode of transmission is Walkie-Talkies. On other hand example of Full-Duplex mode of transmission is Telephone.

What supports full duplex?

Full-Duplex Ethernet is an emerging type of Ethernet that supports full-duplex communication between stations on the network. Full-duplex Ethernet lets stations send and receive data simultaneously, thus giving it twice the maximum throughput of traditional forms of Ethernet.

What is required for full duplex?

To provide full-duplex operation, both the station interface (controller ) and the transceiver at each station must support and be configured for full-duplex operation. When sending a frame in full-duplex mode, the station ignores carrier sense and does not defer to traffic being received on the channel.

Is cat6 full duplex?

Cat 5E cable is designed to support full-duplex Fast Ethernet (100 Mbps) operation, as well as Gigabit Ethernet. … Cat 6 cable provides higher performance than Cat 5e and features more stringent specifications for crosstalk and system noise.

Are routers full duplex?

Cisco router’s and switch’s interfaces have the capability to work at full duplex as well as half duplex. By default interface works on auto negotiation mode, which negotiate duplex and speed of the link between the 2 devices connected in the segment of the network.

Why does WIFI use half duplex?

Most wireless devices today are half duplex. This is because the signals a wireless device transmits are more powerful than the ones it receives. Owing in part to this, output signals in a half-duplex system are picked up by the device. This overwhelms the input signal and self-interference is created.

What is full duplex in WIFI?

FULL DUPLEX – FDD (Frequency-Division Duplex) Simply put full duplex is the networking term for describing the communication between two locations or devices in both directions simultaneously. Unlike TDD the FDD method is achieved by using two different frequencies for transmit and receive.

Is full-duplex better than half?

You always want full duplex. Full duplex means the interface can send and receive data at the same time. Half duplex means you will have collisions and slower network performance due to dropped packets, as systems back off and resend their data.

What happens when duplex mismatch?

A duplex mismatch causes problems when both ends of the connection attempt to transfer data at the same time. … This results in the full-duplex side receiving an incomplete frame with CRC error or a runt frame. It does not detect any collision since CSMA/CD is disabled on the full-duplex side.

How do I know if I have a duplex mismatch?

High counts in the layer 2 statistics (CRC, collisions, late collisions, runts and large packets) will indicate the presence of a duplex mismatch. If these statistics show high counts, look at the two devices on either side of the connection to determine the actual Ethernet connection status.

Is LTE full duplex?

LTE is able to utilise both frequency division and time division, FDD & TDD (TD-LTE) forms of duplex to accommodate the uplink and downlink. LTE can utilise both FDD – frequency division duplex and TDD – time division duplex, often referred to as TD-LTE.

Is 4G full duplex?

Not only Wi-Fi cannot work as full-duplex, but also two or more devices cannot transmit or receive traffic simultaneously. Unlike 3G/4G, Wi-Fi uses unlicensed frequencies in the spectrum, which simply means you do not have to pay for using them.

Is 4G full duplex or half duplex?

4G LTE networks employ both Frequency Division Duplex (FDD) and Time Division Duplex (TDD) to provide a backwards-compatible 4G migration path to all key 3G technologies. 5G NR networks also support both FDD and TDD.

What is half-duplex and full duplex with example?

SimplexHalf duplexFull duplexExample of simplex mode are:Keyboard and monitor.Example of half duplex mode is: Walkie-Talkies.Example of full duplex mode is:Telephone.

What does speed and duplex do?

Speed is the rate of the interface, usually listed in megabits per second (Mbps). Common Ethernet speeds include 10 Mbps, 100 Mbps, and 1,000 Mbps. 1,000 Mbps Ethernet is also referred to as Gigabit Ethernet. Duplex refers to how data flows on the interface.

What is the difference between multiplexing and duplexing?

Generally, duplexing refers to how a node separates transmissions from receptions. Multiplexing refers to the combination of signals (e.g., packets), and multiple access to the means by which multiple signals are separated, and both of these terms can refer to either transmissions or receptions.
