Select the tip style for the fuel gas you are using and metal type/condition. Cutting tip designs vary based on fuel gas and application. Examples: a 1 piece tip is typically used for oxygen-acetylene use and a 2 piece tip is used for oxygen-alternate fuel gas (natural gas, propane, propylene, etc.) use.

How do you use cutting tips?

Select the tip style for the fuel gas you are using and metal type/condition. Cutting tip designs vary based on fuel gas and application. Examples: a 1 piece tip is typically used for oxygen-acetylene use and a 2 piece tip is used for oxygen-alternate fuel gas (natural gas, propane, propylene, etc.) use.

What is a cutting tip made of?

Cutting tips come in one-piece and two-piece styles. One-piece tips are used with acetylene and are made from copper alloy to withstand the heat of the cutting process (see Figure 2). The copper alloy is machined, drilled, and swaged over special wires to produce exact holes for preheats and cutting oxygen bores.

In what way does a cutting tip differ from a welding tip?

A cutting torch is used to cut metals into smaller pieces while a welding torch is used to meld and connect different pieces of metal together.

How many holes are on a cutting tip?

Acetylene cutting tips are usually manufactures with four or six preheat holes and produced to allow light, medium and heavy preheats for use with clean, dirty, or rusted plate. They are solid coppery, one piece.

How do I choose a welding tip?

Select contact tips with a smooth surface to prevent wire snagging. Trim the MIG gun liner to the correct length so that the wire feeds through properly. Lower operating temperatures, if possible, to reduce electrical wear. Use shorter power cables when possible to gain smoother wire feeding.

What could happen if acetylene was used with the wrong tip?

What can happen if acetylene is used on a tip designed to be used with propane or other such gas? Tip may overheat, causing backfire or the tip explodes.

Why is it important that the orifices and passages of the cutting tip be free of dirt scratches or burrs?

How is the cutting tip connected to the torch? … Why is it so important that the orifices and the passages of the cutting tip be free of dirt, scratches or burrs? Prevent free gas flow, well shape flame. What is the purpose off the preheating jets or orifices in a cutting torch tip?

Why do we have different welding tip sizes?

Contact tip size determines what wire size you can use and the amount of filler material that will be distributed during welding. When a contact tip begins to wear, the through-hole elongates and loses electrical conductivity, which greatly affects the gun’s ability to transfer current to the welding wire.

What determines the size tip to be used for cutting pipe?

A pipe’s diameter determines what size cutting tip is needed to cut that pipe. 8.

Article first time published on

What size tip would you use to cut 20mm steel?

Nozzles are the vital component of flame cutting equipment. They provide the preheating flames to raise the steel to ignition temperatures and direct the jet of oxygen onto the heated area to perform the cutting process.

What is a rosebud torch used for?

Used for general heating of metals, brazing, hard facing, etc.

Are good metals to gouge because there is almost no cleanup?

Stainless steel is a good metal to gouge because there is almost no clean-up.

What comes first acetylene or oxygen?

We recommend closing the oxygen valve first whenever turning off an oxy-fuel torch system especially when Acetylene is fuel.

What is the hottest cutting torch?

The hottest most-versatile gas, acetylene, is very easy to use for all purposes. Pre-heat time for cutting and gouging is relatively short because the flame temperature is between 5,600 and 5,800 F.

What does a flash arrestor do?

A flame or flashback arrestor is a safety device designed to stop a flame in its tracks. It is therefore used to prevent flashback into cylinders or pipework.

Why is the oxygen turned on while a welder is cleaning a tip?

Why is the oxygen valve turned on before starting to clean a cutting tip? To blow away any debris. Why does the preheat flame become slightly oxidizing when cutting lever is released? The oxidizing flame is hotter than the neutral flame.

Can acetylene be used with any oxy fuel cutting tip?

Acetylene can not be used with any oxyfuel cutting tip.

Can you use a .030 tip with .035 wire?

You can get away with a few harmless things like using a . 035 tip for . 030 wire… but for a lot of other things, you better not screw with them! They will just drive you crazy!

What is a MIG tip?

In a MIG welding process, the contact tip is responsible for transferring the welding current to the wire as it passes through the bore, creating the arc. Optimally, the wire should feed through with minimal resistance while still maintaining electrical contact.

Are MIG welding tips interchangeable?

These replacement welding tips have a threaded attachment and are compatible with most MIG guns including Chicago Electric Welding Systems. With precision machined, polished copper tips, these welding tips are durable and precise.

What thread is a MIG tip?

These tips use 1/4-20 thread. If your welder uses this size of threads for the gun then they should work. Question: Will these fit chicago electric mig 170?

When should you change welding tips?

  1. Definition: When the wire melts and “burns back”, fusing to the contact tip.
  2. Signs and Consequences: arc instability, irregular wire feeding, and stoppages in wire feeding.

What does weld puddle mean?

Weld Puddle – or WELD POOL, is the molten metal produced while the weld is being made. It can be made from melting the PARENT METAL alone, the PARENT METAL combined with FILLER METAL, or mostly FILLER METAL in SURFACING.

What is the purpose off the central opening or orifice in an oxyfuel cutting torch tip?

As in welding, the positive-pressure cutting torch is connected to oxygen and fuel gas cylinders. In an oxyfuel gas cutting torch, the preheat- ing flames come from one or more of the torch tip’s orifices arranged around a central oxygen orifice. The welder controls the cutting operation using the cutting oxygen lever.

What determines the oxygen and acetylene pressure that must be used for cutting?

What determines the oxygen and acetylene pressure that must be used for cutting metal? There are three factors: 1) the type of metal to be cut; 2) the manufacture’s tip number size; and 3) the metal thickness.

Why is a cutting torch held at a low angle when thin metal is cut?

This lowered angle effectively increases the thickness of the metal being cut. On very thin metal, holding the tip near vertical produces too much preheating.

When removing a cutting tip if the tip is stuck in the torch head?

In most cases, tips from one torch maker cannot be used in another manufacturer’s torch. If you have removed the nut that retains the torch tip, and the torch tip is stuck in the torch body, a gentle tap on the back of the torch head with a plastic hammer will usually release the tip.

What is the most widely used fuel gas used for cutting?

The five most commonly used fuel gases are acetylene, propane, MAPP (methylacetylene-propadiene), propylene and natural gas. The properties of the gases are given in the Table.

How thick of metal can an angle grinder cut?

The most common grinder disc size is with a diameter of 12 cm. It can be used for small jobs as cutting wood or metal with a maximum thickness of 2-3 cm. It’s not recommended to use it for cutting stones and concrete.

What size tip is recommended to cut the 1/4 in metal?

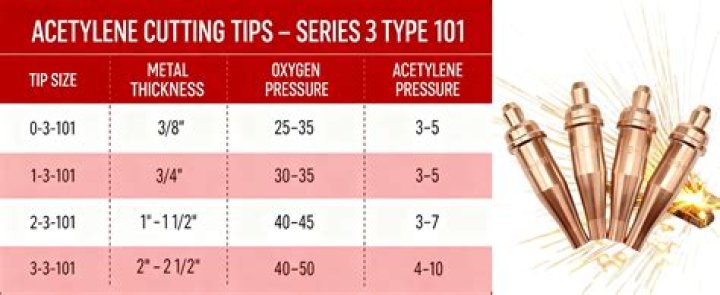

Types: 100, 101, 104, 108, 110, 111, 112, 129 ( Oxy-Acetylene )Metal ThicknessTip SizeCutting Oxygen ( SCFH )1/8″00020 / 251/4″0030 / 353/8″055 / 60
