The contactor is essentially a type of switch that receives a low voltage signal (24V) from your furnace to power on. … This closing of the circuit allows electricity to power the air conditioner’s fan and compressor motors. Contactors come in generally two different types: single pole and double pole.

How do you know if your contactor is bad?

  1. Humming. When your AC is on, it may produce a humming sound – but, it won’t power on. …
  2. Chattering. When the contacts are dirty, or the coil has become weak, you may hear the plunger make a chattering sound. …
  3. Melting.

What causes a contactor to fail?

Electrical failure – Three different electrical issues can cause contactor failure. The insulation between the coil wires can break down and cause a short. The coil can become grounded through another metal component when the wiring insulation deteriorates. The coil can also become stuck in an open position.

What does a contactor do in an AC unit?

The contactor in your air conditioner is a small electrical relay that starts or stops your compressor after a small signal is received from your thermostat; much like the ignition circuit of your car. Over its life your contactor can be asked to start and stop your air conditioning system thousands of times.

How much does it cost to replace an AC contactor?

How much does it cost to replace an AC contactor? On average, homeowners can anticipate paying between $100 – $400 to replace an AC contactor.

What happens when AC contactor goes bad?

If the contactor is bad, the AC unit will lose its ability to adequately cool the home and may run continuously, even when the thermostat is turned off. … Pitting occurs when the contactor has encountered extreme voltage and heat. A pitted contactor tends to stick, causing a continuous flow of electricity to the unit.

What causes AC contactor to burn out?

Over time, contactors can burn out due to either normal wear and tear or overheating. When a contactor burns out, the component that it supplies electricity to will not be able to turn on. They can get stuck down.

Where is the air conditioner contactor located?

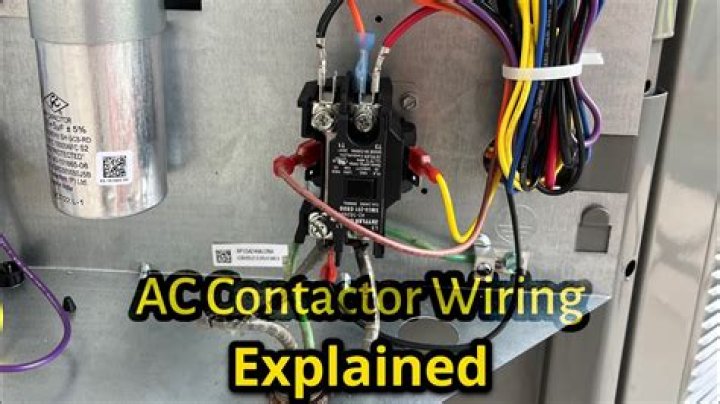

The air conditioner contactor is basically a switch that is located in the outdoor part of the air conditioning unit. The “switch” consists of a control coil, a metal plunger, and one or more sets of electrical contacts.

What dies a contactor do?

A contactor is an electrical device which is used for switching an electrical circuit on or off. … These contacts are in most cases normally open and provide operating power to the load when the contactor coil is energized. Contactors are most commonly used for controlling electric motors.

What is the difference between a contactor and a relay?

A contactor joins 2 poles together, without a common circuit between them, while a relay has a common contact that connects to a neutral position. Additionally, contactors are commonly rated for up to 1000V, while relays are usually rated to only 250V.

Article first time published on

Why does a contactor trip?

The most common situation in contactor failures is contact sticking and coil burning. The reason for contact sticking; If more current is passed through the main power contacts than it can carry, the contacts will overheat after a while and the contacts may stick as a result of this warming.

How long does an air conditioner capacitor last?

Most are designed to last approximately 20 years, but a number of factors can cause them to wear out more quickly. If your air conditioner cycles much more rapidly than average, your capacitor is undersized (as mentioned above) or it’s built from problematic parts, and the estimated life span may be greatly reduced.

How much does freon cost?

Freon costs an average of $150 for a Freon refill. Most people pay between $100 and $350 for a refill, depending on the size and type of your HVAC unit.

How often should you replace AC capacitor?

Capacitors are one of the most common parts that need to be replaced on residential air conditioning systems. They typically provide several years of service, but you’ll need to replace them at least once if you keep the same air conditioner for more than ten years. Your system might have one or more capacitors.

How long can a contactor stay on?

For example, a properly applied contactor will have a life span of 10,000 to 100,000 operations when run under power; which is significantly less than the mechanical (non-powered) life of the same device which can be in excess of 20 million operations.

Will a bad contactor trip the breaker?

Generally speaking, if a contactor causes a break to trip or a fuse to blow, it’s a direct result of what that contactor is purposed for. If the contactor is being used to start a motor and the motor has a problem which causes an unusually high starting current, the breaker will trip.

Can you clean a contactor?

Keeping the contactor clean, both inside and outside, is important for good operation. Keeping the contactor clean will help eliminate overheating, high voltage leakage and breakdowns. … Verify the screws mounting the contactor / starter to the panel are tight. Check for proper torque on all terminal connections.

Will AC fan run if capacitor is bad?

The capacitor may also be used to keep the fan motor running properly as well as starting it. (This is called a “start/run capacitor” and they’re used in many A/C systems.) In either case, a bad capacitor will strain the fan motor and may cause it to burn out completely.

Are contactors normally open or closed?

Control Relays can and often are both Normally Open and/or Normally Closed depending on the desired function. Contactors, on the other hand, are almost exclusively designed to operate with normally open (Form A) contacts.

What are the different types of contactors?

There are different types of contacts in a contactor, and they are; auxiliary contact, power contact, and contact spring. The power contact has two types that are; stationary and movable contact. Material for making contacts must have a high welding resistance and stable arc resistance.

What is the use of bypass contactor in soft starter?

The internal bypass contactor is used after the soft starter has brought the motor up to speed. The algorithm of the soft starter determines when the motor is up to speed and at that time, transitions from silicon-controlled rectifier (SCR) control to the bypass contactor.

What is a bypass contactor in soft starter?

Bypass contactors bridge out a soft starter’s SCRs when the motor is running at full speed. This eliminates heat dissipation from the SCRs during run state. Some soft starters include built-in bypass contactors, others require an external bypass contactor.
