Cogeneration or combined heat and power (CHP) is the use of a heat engine or power station to generate electricity and useful heat at the same time.
How does a CHP engine work?

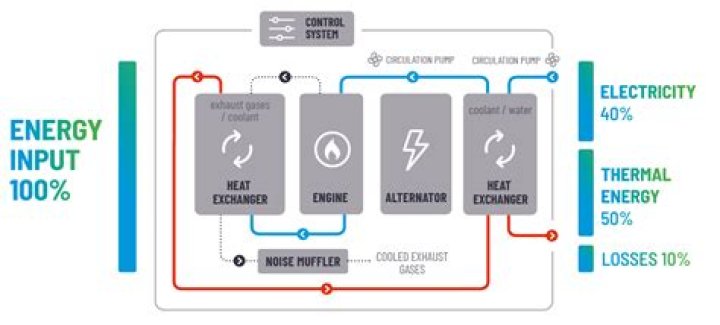

Combustion turbine or reciprocating engine CHP systems burn fuel (natural gas, oil, or biogas) to turn generators to produce electricity and use heat recovery devices to capture the heat from the turbine or engine. This heat is converted into useful thermal energy, usually in the form of steam or hot water.
How does a CHP generator work?
The heat is used to boil water and make steam, the steam drives a turbine, the turbine drives a generator, and the generator makes electricity. … That’s essentially the idea behind CHP: to capture the heat that would normally be wasted in electricity generation and supply it to local buildings as well.
What is the meaning of CHP?
Combined heat and power (CHP), also known as cogeneration, is: The concurrent production of electricity or mechanical power and useful thermal energy (heating and/or cooling) from a single source of energy.What is the fuel for CHP?
For CHP, the most common fuel is natural gas. Hydrogen, natural gas, propane, methanol Steam turbines for CHP are used primarily where a solid fuel (e.g., coal or biomass) is used in a boiler. used primarily with solid fuel boilers.
What is CHP made of?
A CHP plant consists essentially of an electrical generator combined with equipment for recovering and using the heat produced by that generator. The generator may be a prime mover such as a gas turbine or a reciprocating engine.
Where is CHP used?
Whilst there are a range of different forms of CHP, typically, a gas-powered turbine or reciprocating engine is used to produce electricity, and the heat recovered is used for local water or space heating, or to support an industrial process.
What is a CHP engineer?
As a CHP Engineer you are responsible for the safe, efficient operation of a Natural Gas Engine CHP Fleet, through maintenance activities that includes, planned, predictive, corrective and reactive tasks.Why is CHP more efficient?
A CHP (or cogeneration) unit generates the electricity where it is needed and additionally gives the opportunity to use the excess heat for heating and hot water. This can make CHP more than twice as efficient as conventional power stations – giving you cost savings, reducing emissions and carbon footprint.
What is the difference between CHP and cogeneration?A cogeneration plant is like CHP in the sense that it also generates electricity and produces heat. Cogen technology differs, however, from CHP in that it produces electricity from a simple cycle gas turbine. The gas turbine exhaust energy is then used to produce steam.
Article first time published onHow much does a micro CHP cost?
The average system efficiency of micro turbines is approximately 67 percent, while the average CHP installation cost ranges from $2,500 to $4,300 ($/kW).
What is CHP solar energy?
Combined heat and power (CHP) generation is generally considered a measure to increase the overall efficiency of energy systems. Biomass-fueled CHP represents thus an alternative for the combination of an efficient energy technology and a renewable, climate-neutral fuel.
What is a CHP boiler?
Combined heat and power boilers, sometimes also known as CHP units, are designed to produce heat and electricity simultaneously. … On the heating side, the CHP unit operates in parallel to a boiler. Both heat generators are connected to the heating system when providing heating water or DHW.
What is a prime mover CHP?
The prime mover The first is the ‘Prime mover’ which is effectively the ‘engine’ that creates the mechanical motive power. The second is the electrical generator (if it is applicable to the individual device), and the third is the heat recovery unit(s). There are currently 7 distinct types of prime mover: Gas turbines.
Is CHP considered renewable?
As an energy generation process, CHP is fuel neutral. This means that a CHP process can be applied to both renewable and fossil fuels.
What does CHP stand for in law enforcement?
As an officer of the California Highway Patrol, your job is providing safety, service, and security to Californians and visitors to our state. Officers do much more than write tickets.
What cars do highway patrol use?
The main vehicle that the CHP uses to patrol is the Dodge Charger Pursuit in the RWD V6 Police Package. The only Hemi V8 Chargers CHP have are in the EVOC unit used for training purposes. CHP Officers have been using some police cars from the early 2000s such as Ford Expeditions.
What gun does CHP carry?
. 40-caliber Smith & Wesson Model 4006 semi-automatic pistol is adopted as a standard sidearm for officers.
What is CHP maintenance?
For a packaged CHP unit, relatively little routine maintenance is needed to allow the unit to operate continuously for long periods. Provided that supplies of fuel, water and air to the engine are kept at their required conditions, the unit should require maintenance attention at the planned service intervals.
How do you calculate CHP efficiency?
The calculation of effective electric efficiency is the CHP net electric output divided by the additional fuel the CHP system consumes over and above what would have been used by a boiler to produce the thermal output of the CHP system.
What are CHP plants?
A CHP plant consists essentially of an electrical generator combined with equipment for recovering and using the heat produced by that generator. The generator may be a prime mover such as a gas turbine or a reciprocating engine.
Does a diesel engine use cogeneration?
By far the most common method of cogeneration. The heat from smaller piston engines, usually diesel, is captured from the radiator or exhaust. These systems are popular because they are easy to maintain, cost less and are easily adaptable to a variety of size requirements.
What does a Cogen do?
Cogeneration/CHP Onsite CHP or “Cogen” systems are much more efficient. They generate electricity and capture the heat through heat exchangers, using it as a source for hot water, heating and even cooling (A “Trigen” system converts the heat to cooling through an absorption chiller).
How much does a CHP generator cost?
CHP TechnologyReciprocating EngineFuel CellTypical Size Range65 kW – 15 MW200 – 2000 kWAverage Installed cost ($/kW)$ 1,433 – $ 2,900$ 4,600 – $ 10,000Total Average CHP System Efficiency78.4%82%O&M Cost ($/kWH)$ 0.0177$ 0.040
What is a Stirling engine boiler?
The Stirling engine CHP boiler is a type of external combustion engine, where the combustion engine is heated when the boiler is fired up to produce the hot water. … The working gas usually used in a Stirling engine is helium, due to its strong heat transfer properties.
How much does a cogeneration plant cost?
The investment costs of a gas-engine CHP plant are in the range of $850–1950/kWe, with a typical cost figure of $1,150/kWe. Its annual O&M costs are about $250/kWe.
Is CHP low carbon?
Amidst the growing threat of climate change, industrial energy users across the U.S. are looking for ways to reduce greenhouse gas (GHG) emissions while maintaining energy reliability and creating economic growth.
Which is the best example of cogeneration?
One such example is the Columbus Water Works, where biogas generated as a by-product of wastewater treatment was used as a fuel source to run the cogeneration plant.
What is CHP biogas?
The livestock industry is responsible for one-third of total methane emissions in the U.S., and represents a significant untapped market for biogas production. Current number of operational and potential biogas sites in the U.S. by feedstock. Source: The Environmental and Energy Study Institute.
What are examples of prime movers?
Windmills, waterwheels, turbines, steam engines, and internal-combustion engines are prime movers. In these machines the inputs vary; the outputs are usually rotating shafts capable of being used as inputs to other machines, such as electric generators, hydraulic pumps, or air compressors.
Is electric motor a prime mover?
The word “motor” refers to any power unit that generates motion, that is a “prime mover”, while “electric motor” refers to a “prime mover using electricity.” An electric motor is a device used to convert electrical energy into mechanical energy.
