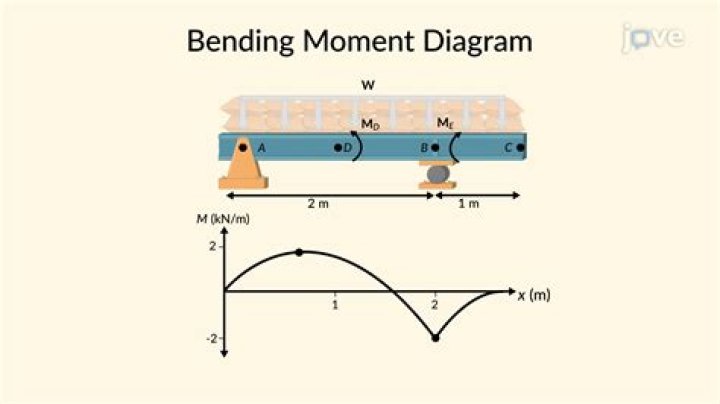

A bending moment diagram is one which shows variation in bending moment along the length of the beam. a) determine the reactions at the supports. the shear force remains constant between B and C (i.e. -4kN) and so the shear force diagram is horizontal between these points.
What does a bending moment diagram tell you?
A bending moment diagram is one which shows variation in bending moment along the length of the beam. a) determine the reactions at the supports. the shear force remains constant between B and C (i.e. -4kN) and so the shear force diagram is horizontal between these points.
What is bending moment example?
Bending Moment Definition In the most simple terms, a bending moment is basically a force that causes something to bend. … If one end of the ruler is lying on the desk and is being held down, and then a force is applied to the other end of the ruler, it will cause the ruler to bend.
What is moment and bending moment?
A moment is equivalent to a force multiplied by the length of the line passing through the point of reaction and that is perpendicular to the force. A bending moment is the internal reaction to a bending load. … Torque is a moment that is applied in such a way that it tends to rotate a body around its axis.What is bending moment and shear force explain?
The algebraic sum of the vertical forces at any section of a beam to the right or left of the section is known as shear force. … The algebraic sum of the moments of all the forces acting to the right or left of the section is known as bending moment.
Why are shear and moment diagrams important?
Shear and moment diagrams are graphs which show the internal shear and bending moment plotted along the length of the beam. They allow us to see where the maximum loads occur so that we can optimize the design to prevent failures and reduce the overall weight and cost of the structure.
What is bending stress and define theory of bending?
Bending stress is the normal stress that an object encounters when it is subjected to a large load at a particular point that causes the object to bend and become fatigued. Bending stress occurs when operating industrial equipment and in concrete and metallic structures when they are subjected to a tensile load.
What is called bending moment?
A bending moment (BM) is a measure of the bending effect that can occur when an external force (or moment) is applied to a structural element. This concept is important in structural engineering as it is can be used to calculate where, and how much bending may occur when forces are applied.How do you draw a moment diagram?
- The area of the first region in the shear diagram is . Draw a straight line from zero to -50ft*lb underneath the support at A. …
- The area of region 2 of the shear graph is . …
- The area of the triangular region 4 is , bringing the graph to 17.4 lbft. …
- Region 5 is also a triangle.
In engineering mechanics, bending characterizes the behavior of a slender structural element subjected to an external load applied perpendicularly to a longitudinal axis of the element. … In the absence of a qualifier, the term bending is ambiguous because bending can occur locally in all objects.
Article first time published onWhat are the differences between bending moment and shear force diagram?
A shear force diagram shows the shear force at every section of the beam due to transverse loading on it. … A bending moment diagram is a diagram which shows the bending moment at every section of the beam due to transverse loading on it.
What is the bending equation?
E/R = M/I = f/y is a bending equation. It is also known as flexure equation (or) equation for theory of simple bending.
What is bend force?
A bending force is a force that is applied to a length of material. The bending force is applied to a point, area or volume that is some distance from a fixed portion of the component or structure to which the force is being applied.
What is bending structure?
In applied mechanics, bending (also known as flexure) characterizes the behavior of a slender structural element subjected to an external load applied perpendicularly to a longitudinal axis of the element.
What do you understand by the term simple bending explain with example?
Pure bending ( Theory of simple bending) is a condition of stress where a bending moment is applied to a beam without the simultaneous presence of axial, shear, or torsional forces. Pure bending occurs only under a constant bending moment (M) since the shear force (V), which is equal to. , has to be equal to zero.
What is the bending axis?
Bending results from a couple, or a bending moment M, that is applied. Just like torsion, in pure bending there is an axis within the material where the stress and strain are zero. This is referred to as the neutral axis.
When SF is zero What is the Bending moment?
In case of simply supported beam, bending moment will be zero at supports. And it will be maximum (positive or negative) where shear force is zero.
How do you calculate shear force on a beam?
The shear stress at any given point y1 along the height of the cross section is calculated by: where Ic = b·h3/12 is the centroidal moment of inertia of the cross section. The maximum shear stress occurs at the neutral axis of the beam and is calculated by: where A = b·h is the area of the cross section.
How do you write a bending moment equation?
Calculate BM: M = Fr (Perpendicular to the force) Bending moment is a torque applied to each side of the beam if it was cut in two – anywhere along its length.
Do bending moment diagrams end at zero?
Bending Moments Diagram: At the ends of a simply supported beam the bending moments are zero. At the wall of a cantilever beam, the bending moment equals the moment reaction. At the free end, the bending moment is zero.
Is sagging positive?
The bending moment which causes a beam to bend with the concave side upwards, is called a Sagging Bending Moment. This kind of bending moment is treated as a positive bending moment. … This kind of a bending moment is treated as a negative bending moment.
What do you understand by neutral axis?
Definition of neutral axis : the line in a beam or other member subjected to a bending action in which the fibers are neither stretched nor compressed or where the longitudinal stress is zero.
What do you mean by bar of uniform strength?
what do you mean by a bar of uniform strength: A bar having uniform stress when it is subjected to its own weight is known as a bar of uniform strength.
How do you calculate bending force?
- P: bending force (KN)
- S: plate thickness (mm)
- L: plate width (m)
- V: bottom die slot width (mm) For example: Plate thickness S= 4mm, width L=3m, σb= 450N/mm2. Generally slot width V=S*8. Therefore P=650* 42*3/4*8=975 (KN) = 99.5 (Ton)
