Also known as a panel board or breaker panel, a 3 phase distribution board splits up the feed of electrical power into subsidiary circuits, and at the same time will ensure there is a fuse to provide adequate protection, or even a circuit breaker to provide protection, in a single enclosure.
What is a three phase distribution?
Three-phase power can be defined as the common method of alternating current power generation, transmission, and distribution. … It is a type of polyphase system and is the most common method used by electric grids worldwide to transfer power.
How do I know if I have single-phase or three phase?
Look at the ‘main switch’ or ‘normal supply main switch’ on your switchboard. If the switch looks like three switches combined into one and is wider than 3 cm, you have 3-phase power. If it’s a single switch and slim, you have single-phase power.
How do I know if my electrical panel is 3 phase?
1) Count the number of wires going into the weatherhead if the service is overhead. It will tell you at a glance whether the service is likely to be be single phase or three phase. Three wires means single phase (two hots and a neutral), and four wires is three phase (three hots and a neutral).What is a distribution board and how does it work?
A distribution board (also known as panelboard, breaker panel, or electric panel) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.
Is 240V single-phase or 3 phase?
240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads. In parts of the world 240V Single Phase 2 Wire is the standard for homes.
How is 3phase distributed?
Local distribution. Power leaves the substation on three, three-phase “hot” power lines that are strung adjacent to highways or along local roads to points of use. All three phases share a single neutral line and have the same voltage, but they are 120 electrical degrees out of phase with each other.
How many amps is a 3 phase supply?
For example, a three phase circuit using 25,000 watts of power and a line voltage of 250 will have a current flow of 25,000/(250 x 1.73), which is equal to 57.80 amperes.How do you install a 3 phase distribution board?

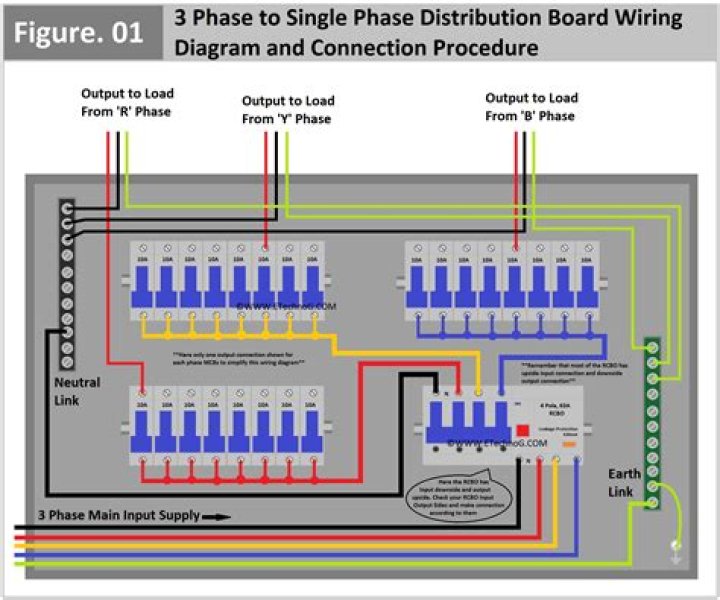

- First of all, connect the three-phase energy meter as shown in fig. …
- Connect the MCCB (Molded Case circuit Breaker) as main switch to the incoming three phases (R, Y, B) from 3-phase energy meter. (
Most small homes and apartments don’t need 3 phase power as all their appliances and power needs will run perfectly well on single phase supply. But if you’re renovating or adding high-energy appliances, talk to your electrician to get advice on whether you need 3 phase power.
Article first time published onWhat is the advantage of 3-phase over single phase?
A polyphase system produces power at a constant rate in the load. A three phase system can transmit more power as compared to a single phase system. The efficiency of three phase operated devices and appliances is higher than the single phase operated machines. Three phase machines are less costly and more efficient.
What is difference between 2 phase and 3-phase?
Three-phase electric power requires less conductor mass for the same voltage and overall power, compared with a two-phase four-wire circuit of the same carrying capacity. … Alternatively, three wires may be used, but the common conductor carries the vector sum of the phase currents, which requires a larger conductor.
Which phase is used in homes?
Single-phase is the most common system and is mainly used in homes, while a three-phase system is common in industrial or commercial buildings, where heavy loads of power are required.
What is the purpose of a distribution board?
A distribution board (also known as panelboard, breaker panel, electric panel, DB board or DB box) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.
Where are panel boards used?
A panelboard is a component of an electrical distribution system which divides an electrical power feed into branch circuits, while providing a protective circuit breaker or fuse for each circuit, in a common enclosure. A panelboard services to protect branch circuits from overloads and short circuits.
What are the types of distribution board?
- Motor Control Centers (MCCs)
- User-Friendly Human Machine Interface (HMI)
- Operator Panels.
- Industrial Hydraulic Control Panels.
- Programmable Logic Controller (PLC) Panels.
- Industrial Hydraulic Control Panels.
Why do we use 3 phase supply?
A three-phase circuit provides greater power density than a one-phase circuit at the same amperage, keeping wiring size and costs lower. In addition, three-phase power makes it easier to balance loads, minimizing harmonic currents and the need for large neutral wires.
Can 220v be 3 phase?
It is NOT possible. The simple reason is that three phase power has at least 3 conductors (wires). A 220 volt lamp has only two points to connect to. If the lamp is connected to two of the wires of a three phase system, it is only using single phase power.
Can I plug single-phase into 3 phase?
Yes. You can run single phase equipment on three phase power.
Is 208 a single-phase?
120/208V single phase is derived from 208V three phase power. … Since the two waveforms peak at different times, the combined power you get from them is less than the numerical sum of the two. When one waveform is at its peak, measuring 120V, the other is only part of way through its cycle, measuring only 88V.
Can I get 3-phase power to my house UK?
Upgrade an electricity supply in your home or business (up to 70kVA) If you need more power we can offer an upgrade from a single phase electricity supply to a three phase electricity supply. This will give you up to 70kVA of power. … Installing any three phase electrical equipment, such as water pumps.
How many wires can be in a 3-phase circuit?
The three-phase system has four wires. Three are conductors and one is neutral. You can set up a three-phase system as a single-phase one, but you can’t do the reverse.
Can you get a 3-phase Rcbo?
The RCBO takes up 4 pole ways in a 3-phase distribution board, i.e. L1 / L2 / L3 and the 4th pole of the device fits over, and is insulated from, the L phase position of the neighbour circuit.
How many watts can 3 phase handle?
Originally Answered: How many watts do 3 phase 208v 400amp? If you have a three phase 400 amp service, this means the most power that can be pulled from the utility is 400 amps per leg of the supply.
Why do we use 1.73 for three-phase?
In a three phase circuit, the use of the constant 1.732 results from the fact that not all three phases are producing the same amount of power at the same time. … Suffice it to say that the correct power from a three-phase system at any point in time is found by multiplying by the square root of 3.
How many volts is a 3 phase supply?
Electricity is either connected at 230 or 240 volts (single-phase, which accounts for the majority of domestic situations), or 400 and 415 Volts (three-phase). The latter is better suited to providing for powerful appliances and fixed plant, and is more commonly used by industrial and larger commercial users.
How much does 3 phase installation cost?
The cost of upgrading single-phase service to three-phase service is currently $7 to $10 per linear foot, from the nearest existing three-phase power line in the neighborhood. Installation can be expensive and as a general rule, paid for by the homeowner.
Is it cheaper to run 3 phase?
It is not normally cheaper to run kilns on three phase power vs single phase power. … The main reason that three phase is used is that the size of the wires and circuit breaker or fused disconnect is dramatically smaller than with single phase for the same amount of KW.
Is a 3-phase induction motor self starting?
Three-phase induction motor is self-starting, because winding displacement is 120 degrees for each phase and supply also has 120 phase shift for 3-phase. It results in a unidirectional rotating magnetic field is developed in air gap which causes 3-phase induction motor to self-start.
What is the meaning of 3-phase?
three-phase in American English (ˈθriˈfeɪz ) adjective. Electricity. powered by three equal AC voltages which are out of phase by one third of a cycle (120 degrees)
Is 220V single-phase or 2 phase?
Though 220V is supplied through two lines that are 180 degrees out of phase from each other, it’s still just considered one phase.
