You need a suitable countersink to countersink screws. Countersinks have a countersink angle of 90° (and for US standard 82°) for countersinking screws, e.g. the countersink angle for rivets is 120°. For the flat countersink, the countersink angle is 180°.
What is the included angle of a flat head screw?

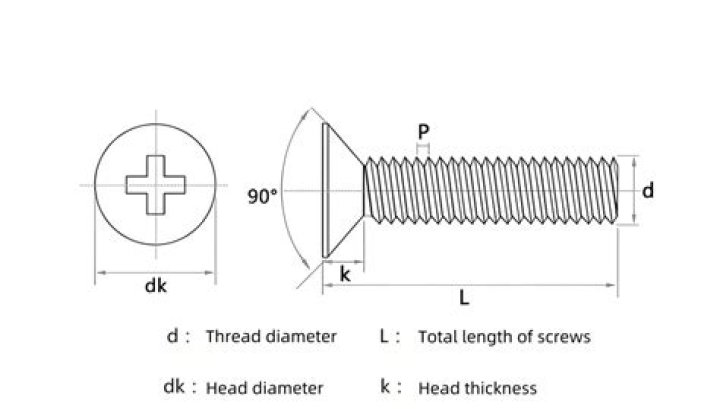

Flat Head (Metric) – Metric flat heads screws come standard with a 90 degree head angle.
What are the two common angles of flat head screws in the United States?
For most flat head screw designs the angle of countersink is usually 82° for UNC and UNF applications however other angles ranging from 60° -120° could be specified.
What is the included point angle of a countersunk hole for most flathead screws?
Flat head screws can have countersink angles of 60°, 82°, 90°, 100°, 110°, or 120°, but the most commonly encountered by woodworkers are 82° and 90°.How do you measure a countersink for a screw?
You will want to choose a countersink that is larger than the bolt size of the hole. Countersink diameter = 1.5 x Bolt Size Hole Diameter. Example: 1/4″-20 Bolt – Multiple the diameter (. 250) x 1.5 = 0.375.
What is the angle on a screw head?
ScrewCountersinkNutsFlat countersink
What is the standard countersink angle?
Countersunk-head screws that follow the Unified Thread Standard very often have an 82° angle, and screws that follow the ISO standard very often have a 90° angle. Throughout the aerospace industry, countersunk fasteners typically have an angle of 100°.
Which angle is determined by the helix angle in drill bit?
drill techniques For general-purpose twist drills the helix angle is about 32°. The angle formed by the two sides of the tapering point is 118° for standard drills, while for drilling tough metals, a flatter point with a 135° angle is recommended.How do you find the angle of a countersink?
Since the countersink has a 90° included angle, bisect that angle with the centerline of the hole to create two equal 45° angles. Subtract the existing hole diameter from the countersink diameter. Then divide the answer by two because ½ the difference is on each side of the hole.
What are Buttonhead screws?Button Head – Rounded head most often used in socket driven screws. Becoming more common with Torx / Six-lobe drives as well. Fillister Head – Smaller diameter and higher profile than round or pan heads allows for deeper slot.
Article first time published onWhat is Panhead screw?
Pan head screws are a common head type of non-countersunk screw head used in wood screws, self-tapping screws, self-drilling screws, and machine screws. They have wide heads, a flat bearing surface, high vertical, chamfered, or curved sides, and a flat or slightly domed top surface with a recessed socket.
What is a Torx fastener?
A Torx screw is a type of screw characterized by a six-lobed, star-patterned screw drive. … Torx is available as an internal and external drive although it is most commonly used as a socket within the head (internal). Torx screws were invented in 1967, by Camcar Textron, as an improvement on contemporary drive types.
How do you specify countersink on a drawing?
Write the dimensions of the countersink, giving first the diameter of the drill hole, then the angle of the countersink, followed by the diameter symbol and the diameter of the larger hole. This dimension can be given either with a diameter symbol first, or with the word DRILL after the first diameter.
What are 60 degree countersinks used for?
60-degree countersinks cut conical holes featuring 60-degree angles at their front tip into workpieces, allowing countersunk bolts, screws, or rivets with 60-degree angles to be fastened in them.
What is the drill bit angle?
A drill bit has two cutting surfaces, one on each side of its center axis, that are cut at an angle of approximately 60 degrees. The parts of a drill bit.
What is the difference between Counterboring and countersinking?
Countersinking creates a conical hole matching the angled shape on the underside of a flat-head screw. … Counterboring creates a flat-bottom hole, which allows the head of a screw or bolt with a flat underside to rest solidly in the counterbore, often atop a washer.
What is the angle of countersinking for riveting?
82° for countersunk screws US standard. 90° for countersunk screws. 120° for countersinking of sheet metal rivets.
What is undercut screw?
Undercut screws are often used for fastening door hinges. They feature a flat, undercut, countersunk head with phillips recess. Undercut screws have a flat bottom under the head, as opposed to a conical head that tapers down to the shank.
What is the big advantage of using screws over nails?
While nails have more flexibility, screws have more tensile strength. Tensile strength refers to a material’s ability to resist breaking under pressure. This makes screws better for projects when joined pieces are under tension or bearing weight, like porch railings or kitchen cabinetry.
How is depth of chamfer calculated?
Spot drill chamfering a hole. For example, if you are using a 3/8-in spot drill to leave a 0.025 chamfer on a 0.25-in hole, the calculated depth would be 0.150 = 0.250/2 + 0.025.
What is the name of the countersunk screw?
Overview of Countersunk Screws Also known as a flat-heat screw, a countersunk screw is a type of screw that’s designed to rest flush with the object or surface in which it’s inserted.
What are countersink pilot holes?
What is Countersinking? Countersinking is to enlarge and/or bevel the side of a hole to allow any given fixing to be sunk below the surface of that hole. When the fixing has been put in, the countersink can then be filled and sanded to allow the surface to be completely flat with no visible signs of fixing.
What is screw clearance?
A clearance hole will allow a screw to pass through it without the threads biting into the material. This is particularly important when using screws with threads that are formed on the entire length of the screw shank, as with drywall screws.
What is countersink operation?
COUNTERSINKING, COUNTERBORING, AND SPOTFACING are three machining operations used to enlarge the opening of a hole. In countersinking, a conical, reamerlike tool is used to cut a tapered enlargement at the opening of a hole for receiving the head of a fastener, for receiving a center, or for deburring.
How do you determine the helix angle of a drill?
The formula Helix angle = Atan (Lead of Screw/Circumference of Screw) or α= atan(L/C) is used to calculate the Helix Angle, which is represented by α symbol.
What decides the point angle of a drill?
As the drill is rotated and advanced into the workpiece, the material is removed in the form of chips that move along the fluted shank of the twist drill. The point angle is the angle between the cutting edges (lips). The point angle varies according to the hardness of the material to be drilled.
What is Chicago screw?
A sex bolt (also known as a barrel nut, barrel bolt, binding barrel, Chicago screw, post and screw or connector bolt) is a type of fastener (nut) that has a barrel-shaped flange and protruding boss that is internally threaded. … It is normally chosen because of its low profile compared to other nuts.
What are Phillips screws?
: a type of screw that has a slot in its top that looks like a cross.
What is cap screw?
n. A long-threaded bolt, usually with a square head, used in fastening machine parts.
What are the 4 different types of screw heads?
- Step 1: Slotted. Slotted screws are the simplest type of screw, consisting of a single slot at the head of the screw. …
- Step 2: Phillips. The Phillips screw, named after Henry F. …
- Step 3: Square Aka “Robertson” …
- Step 4: Torx Aka “Star” …
- 19 Comments.
Why are there flat head screws?
The slotted head screw (commonly but incorrectly called a flat head) is the oldest type of screw in use today. Now, they are mostly used for decorative purposes and have less “impact”. Many people think they are used on light switch covers still for this reason.
