The most common sizes you’ll find in residential work are 14-gauge and 12-gauge. Larger appliances such as electric stoves, electric water heaters, electric dryers and central air units will often use 10-, 8- or even 6-gauge wire.
Should I use 12 or 14-gauge wire?
As long as you don’t put too many lights on the light circuit, you can usually control that circuit with a 15-amp breaker, as well as wire it with a 14-gauge wire. … On the other hand, an outlet circuit controlled by a 20-amp breaker requires a 12-gauge wire.
Can you use 14-gauge wire in a house?
14-gauge wire is the smallest allowed for the permanent wiring of a circuit. It is rated as able to carry up to 15 amps of current. 12-gauge wire is the next size larger and is allowed to carry up to 20 amps.
What type of wire is used in residential homes?
The most common type of wiring in modern homes is in the form of nonmetallic (NM) cable, which consists of two or more individual wires wrapped inside a protective plastic sheathing. NM cable usually contains one or more “hot” (current-carrying) wires, a neutral wire, and a ground wire.Can you use 14-gauge wire for outlets?
Yes you may use No. 14 AWG Cu wire for outlets but the Circuit Breaker to protect the circuit should be only 15A. Do not use 20A Circuit Breaker for this circuit. Also, use only 15A receptacles.
What happens if you use 14 gauge wire on a 20 amp circuit?
Originally Answered: What happens if you use a 14 gauge wire on a 20 amp circuit? 14 gauge wire is rated for 15 Amps. A 20Amp breaker/fuse would risk fire. The wire gets hot enough to melt the insulation and start fire.
Is 12 or 14 gauge bigger?
The diameter of 12 AWG wire is 0.0808 inches, while 14 AWG is 0.0641 inches. The thickness of 12 AWG wire is 26% more than the thickness of 14 AWG wire. In the gauge system for steel music wire, a bigger number means a bigger wire.
Which wire is good for house wiring?
If what you need the wire for is the wiring of your home, copper wires will be most appropriate for you. Copper is more conductive than aluminum but is also heavier and more expensive.Which wire is best for home wiring?
Sr.NoWire And Cables Brand NameRevenue (Rs. Cr.)1Polycab Wires8806.912Havells India Ltd6,720.243Finolex Cables Ltd3,3194Sterlite Tech cables5087
How do you choose wire for house wiring?To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.
Article first time published onCan I mix 12 and 14 gauge wire?
Can you mix 12 gauge and 14 gauge wire? – Quora. If we are speaking of the US the answer is yes however, even if the supply is 12AWG, the breaker must be replaced with a 15 Amp breaker becuase the 14 awg wire is the smaller load carrying conductor.
Can you run 12 gauge wire on a 15 amp breaker?
Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.
What is the difference between 12 gauge and 14 gauge wire?

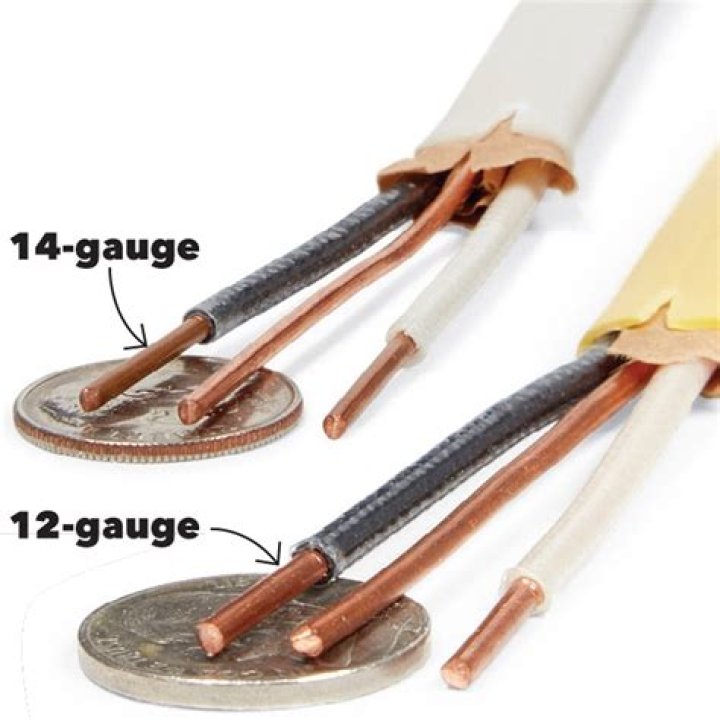

The diameter of solid 12 AWG wire is approximately 0.0808 inches (2.053 mm), and 14 AWG is 0.0641 inches (1.628 mm). Therefore, 12 AWG wire is about 26% thicker and has 59% more cross-sectional area than 14 AWG wire.
What gauge wire do I need 12v?
American Wire Gauge (#AWG)Length (feet)Maximum Current (amps)301264012650104
Can I use 16 gauge wire for lighting?
Choosing Electrical Wire Size 16-gauge are used for light-duty extension cords supporting 13 amps. 14-gauge are usedfor light fixtures, lamps, lighting circuits with 15 amps. 12-gauge are used in kitchen, bathroom, outdoor receptacles, and 120-volt air conditioners supporting 20 amps.
Can I mix 12 and 14-gauge wire on a 15 amp circuit?
It’s perfectly safe to use it. Don’t worry about confusing future workers. If they want to add something to the circuit, they will have to go turn off the circuit breaker first, and then they will see they are working with a 15 amp circuit.
Where is 14 gauge wire generally used in a circuit found in a home?
Ground wires are either bare copper or insulated in green. 14-2 Used for general lighting and receptacle circuits.
Which is bigger 12 gauge or 16 gauge wire?
The gauge is the size of the wire. The higher the number the smaller the wire. If your stereo is high power you might want to use 14 or 12 gauge wire for better power handling. Smaller wire 16 gauge or 18 gauge can get warm or hot with high power amps.
Is 16 or 14 gauge bigger?
16ga steel is . 065” inches thick, that is about 1/16th of an inch thick. 14 gauge in comparison is . 083 inches thick which doesn’t sound like much except it is almost 30% thicker (27.6% to be exact).
Can you mix 15 and 20 amp wire?
Yes, you can have either or both kinds of outlets on the same circuit, and it will work well unless you exceed the amperage allowed by the circuit breaker. It is usual, customary and code approved to install 15-amp rated duplex type receptacles on 20-amp rated circuits.
What size wire should I use for a 15 amp breaker?
A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse. A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.
What is the difference between 12 2 and 12 3 Romex?
The first number indicates the gauge of the wire. … A 12-2 Romex will have a black(hot) and a white(neutral) wire as well as an unsheathed copper wire for ground. A 12-3 Romex will have a black(hot), red(hot), white(neutral), and bare copper. The red on a 12-3 is used for three-way light switches which are covered later.
Which wire is best for AC?
3 Answers. 2.5mm^2 wire is good for 18A inside a wall, so you are limited by the 15A sockets. A 220V 15A socket can deliver 3.3kW, and even if the voltage drops to 180V it can still do 2.7kW. Your aircon requires 1.55kW so there is enough power available.
What is meant by 720 wire?
7/20 wire is electrically equivalent of 12 gauge solid wire. It is one of several stranded wire constructions available.
What is the price of 1.5 mm wire?
This item Finolex 1.5 Sq mm Wire, 90 m Coil (Black)Polycab PVC Insulated 1.5mm Single Core Flexible Copper Wires & Cables for Domestic/Industrial Electric | Home Electric Wire | 90 Mtr | Electrical Wire | (Red)PriceFrom ₹1,450.00₹1,790.00Sold ByAvailable from these sellersGUPTA SALES…
What is the color code for house wiring?
US AC power circuit wiring color codes The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.
What are the 5 types of wires?
- Communications Cable. Coaxial Cable. …
- Direct-Buried Cable (DBC)
- Non-Metallic Sheathed Cable (NM, NM-B)
- Metallic Sheathed Cable (Armored Cable, AC or BX, MC) Armored Cable (AC) …
- Multi-Conductor or Multicore Cable:
- Paired Cable.
- Portable or Extension Cord.
- Ribbon Cable.
Which type of wiring is costliest to install and maintain?
Batten Wiring – Compared to other electrical wiring types, the batten wiring is cheap and can be waterproof, steam proof and chemical proof. Conduit Wiring – This wiring might be one of the most difficult and expensive types to install, but it is also very safe and long-lasting.
How do I know what size wire I need?
To determine the breaker and wire size you need, divide the total watts by the voltage to find the amperage on the circuit. You can use a breaker and wire size ampacity chart to calculate the breaker and wire size you need. Each breaker size requires a different wire size based on the breaker’s ampacity.
Does wire gauge matter?
Unfortunately, size does matter. The most basic explanation on why wire gauge matters is because the thinner a wire is (higher gauge) the more resistance there will be to the flow of current. More resistance means more energy loss, which means weaker/less reliable detections.
How do I calculate what size wire I need?
How do you determine cable wire size? Divide the voltage running through the cable by your target current. If, for instance, 120 volts will act on the cable, and you want 30 amps to run through it: 120 / 30 = 4. This is your target resistance, measured in ohms.
