Standard Cubic Feet per Minute (SCFM) is the rate of flow
How much SCFM do I need?

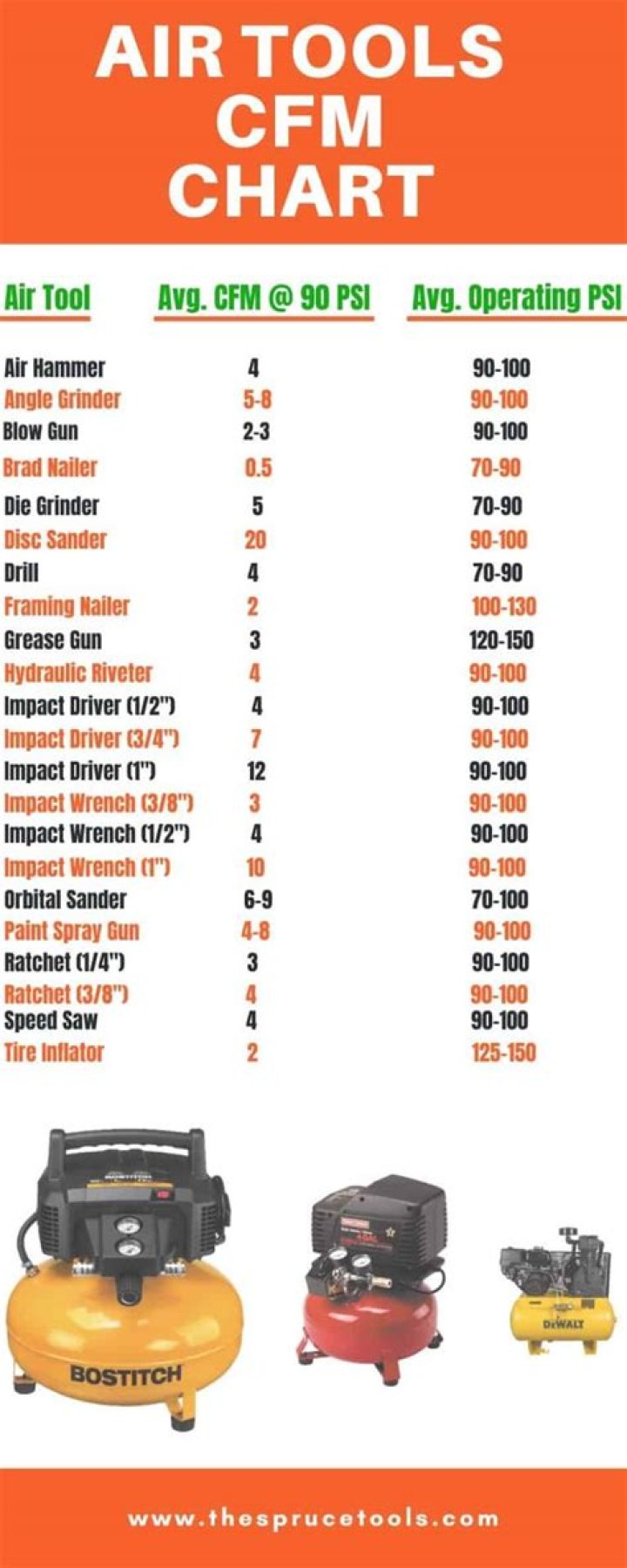

To gauge the minimum compressor SCFM rating you need, examine the SCFM requirements of all the tools you intend to use. Multiply the highest tool rating by 1.5 to get the minimum compressor SCFM for your needs. This gives you a little buffer, which is important, since actual SCFM varies during compressor operation.
Is higher CFM better air compressor?
A compressor with a higher CFM rating can deliver more air and is better suited for heavier applications, such as operating air wrenches and framing nail guns.
Are CFM and SCFM the same thing?
The most common air compressor ratings are cfm and scfm (standard cfm). So, what’s the difference? As a measurement, cfm will be a smaller number than scfm, because cfm values are taken under pressure (typically 90 psi), so the air volume is small. … As a result, scfm values are larger.What is the difference between CFM SCFM and ACFM?
If the system were moving air at exactly the “standard” condition, then ACFM would equal Standard cubic feet per minute (SCFM). … The term cubic feet per minute (CFM) is ambiguous when it comes to the mass of gas that passes through a certain point because gas is compressible.
How much SCFM do I need to paint?
10-15 psi when trigger is pulled for base coat is what most say to set your gun at. Personally I spray at about 17 psi when spraying base coat and 20-25 for clear coat using the low volume low low pressure spray guns. The normal scfm that these guns use is 5-7 scfm cubic foot per minute.
Which is better cfm or scfm?
As the pressure is low, the volume of gas is bigger and thus SCFM is always a greater number than CFM. Although the standard values can differ from place to place, it is still preferable to use the SCFM measurement unit than the CFM.
How do you calculate the SCFM of an air cylinder?
SCFM = CFM x (P + 14.7) / 14.7.How do I check scfm?
As shown in the formula and calculations it is simply the ratio of gauge pressure + atmospheric divided by the published pressure + atmospheric and then multiply the dividend by the published volume. So as we do the math we solve for 17.69 SCFM @ 105 PSIG from a device that was shown consume 14 SCFM @ 80 PSIG.
What is Nm3 hour?What does Nm3/hr mean? Normal Meter Cubed per Hour. Unit used to measure gas flow rate. The ‘Normal’ refers to normal conditions of 0degC and 1 atm (standard atmosphere = 101.325 kPa) – for practicle purposes this is rounded to 1 bar.
Article first time published onHow do I calculate air compressor cfm?
- Next, convert to standard pressure (ATM). …
- Tank Pump-up Time = 1 min 8.4 seconds (1.14 minutes)
- The three primary factors are: …
- CFM = Tank Volume in Cubic Feet x Standard Pressure (ATM) During a Cycle x Cranks per Minute.
How do you convert CFM to m3 min?
To convert cubic feet per minute to cubic meters per minute, multiply the cubic feet per minute value by 0.028316846999 or divide by 35.3146662313. For example, to convert 10 cubic feet per minute to cubic meters per minute, multiply 10 by 0.028316846999, that makes 0.28316846999 m3/min is 10 cfm.
How does a double acting air cylinder work?
Double-acting cylinders have a port at each end and move the piston forward and back by alternating the port that receives the high-pressure air, necessary when a load must be moved in both directions such as opening and closing a gate. Air pressure is applied alternately to the opposite ends of the piston.
How do I know what size compressor I need?
Theoretical capacity of compressor is defined by geometric measurement of air in the working area during one suction period. Then this volume is multiplied by the number of periods (cycles) per time unit.
How many CFM is equal to 1 HP?
hp I/atm cfm power conversion resultFromSymbolResult1hp I15.59
How do you check the efficiency of a compressor?
Simple Energy Formula: Motor Efficiency = Cost per KW X . 746 (Power Factor) X Hours of operation X Brake horsepower *Note: No electric motor is 100% efficient, most will average 92-95% efficient.
What is scfm flow rate?
Standard Cubic Feet per Minute (SCFM) is the rate of flow of a gas or air through a compressor at standard temperature and pressure conditions. The standard temperature for calculating SCFM flow rate ranges from 60°F to 68°F, at a pressure of 14.7psi and relative humidity of 36%.
How many cubic meters are in a CFM?
Meter Cube Per Hour (m3/hr)CFMHow many CFM is 100 m3/hr?58.86 CFMHow many CFM is 200 m3/hr?117.72 CFM
What is m3 min?
First unit: cubic meter per minute (m3/min) is used for measuring flow rate. Second: Liter per minute (L/min) is unit of flow rate.
Which is better single acting cylinder or double acting cylinder?
If the heavy lifting, so to speak, is only in one direction, a single acting hydraulic or pneumatic cylinder may be your best bet. If you are moving a part in two directions and need to have full control, it’s best to have a double acting hydraulic or pneumatic cylinder.
What are the advantages of double acting cylinder over a single acting cylinder?
Advantages of Double Acting Cylinder: More control over movement since pressurized air moves both ways. Faster, stronger and use less energy. Offer more design variation: stroke and bore sizes. Many double acting pneumatic cylinders are ISO compliant as opposed to single pneumatic cylinders.
What does the number in 4 2 valve means?
Example: A 4/2 directional control valve would have four ports and two spool positions. … Supply of high-pressure working fluid to be supplied to actuator by the valve.
