An Isolation Valve is used in fluid management to stop the flow of process fluids in a pipeline, this is usually for maintenance or safety purposes. They can also be automated to provide flow path selection to change the flow path in a continuous or batch process.
How does an isolation valve work?
A diaphragm isolation valve—also known as a “membrane valve”—is a solenoid-operated device that uses a diaphragm that extends and retracts to seal the valve seat and isolate the flow path. … This type of isolation valve can be constructed from inert materials, including an entirely inert fluid path.
What is the difference between isolation valve and control valve?
Control valve are typically designed for precision of fluid control, while isolation valves emphasize the mechanical robustness and sealing. For example, a ball valve isn’t a very good control valve because of the considerable non-linearity in its flow vs position function.
Where should I put my isolation valves?
Isolation valves are normally fitted to taps on basins, baths and sinks, toilets, showers, washing machines, dishwashers, outside taps, cisterns and water tanks and a variety of other fixed or movable appliances.Do isolation valves reduce water pressure?
1 Answer. They won’t reduce the static pressure, just the dynamic pressure when there is water flow.
Why do isolation valves leak?
The most common reason for an isolation valve to leak would be age-related wear and tear (given moderate use). This is a simple fact of life when working with anything that has moving parts.
Do isolation valves restrict flow?
If you are looking to fit isolation valves to outlets (not central heating), then: 1. If the outlet is on a high pressure (1 bar or greater) pressure, then you can probably get away with a normal isolation valve. The exception is for a bath filler or high volume shower, where a full bore valve would not reduce flow.
Do all taps have isolation valves?
Isolation valves should be attached to every water-using appliance or fixture in your house, so you should be able to see them under taps, dishwashers, washing machines, toilets, showers, etc. Be aware that isolation valves can vary in size, but they all work the same way.Do isolation valves fail?
ConfigurationIsolation valvesSegmentsLimited11286Scarce9165
How do I turn off my water isolation valve?“To turn it off you’ll need a flat head screwdriver, the slot on the isolation valve should be following the pipe work, that’s when the water is on, if you give it a quarter of a turn in either direction the slot should be going across the pipe work, that’s how you know the isolation valve is in the off position.”
Article first time published onIs an isolation valve the same as a gate valve?
An isolation valve is a valve in a fluid handling system that stops the flow of process media to a specific location. The Isolation gate Valve is a valve that is used to stop the flow of process media in a fluid handling system.
Is an isolation valve the same as a ball valve?
Both ball valves and gate valves are isolation valves that offer a degree of flow regulation. … They use a quarter turn of the handle to turn the ball horizontally to block off the bore that allows fluids to flow. By contrast, a gate valve uses a plate, disc, or wedge to interrupt or allow flow stream.
Can you use a globe valve for isolation?
Conventional Globe valves may be used for isolation and throttling services. … Although these valves exhibit slightly higher pressure drops than straight=through valves (e.g., gate, plug, ball, etc.), they may be used where the pressure drop through the valve is not a controlling factor.
What does full bore isolating valve mean?
Product Details. Full Bore Isolation maintains full water pressure where an isolation valve is used. Brass construction and Chrome Plated with easy 1/4 turn operation.
Can you put isolation valves on central heating pipes?
Remove the isolation valves. They should not be used on a heating system. In time they will only leak anyway. The only valve suitable to use on heating is a gate valve which I would not use.
Can you use isolation valves on central heating?
Central heating isolation valve are often refered to as butterfly valves. … These isolation valves are suitable for Heating Applications Only.

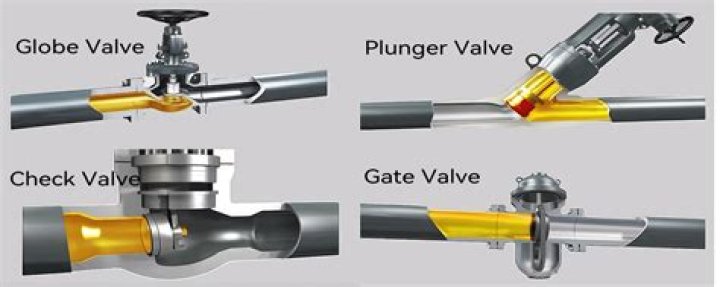

What are the types of isolation valve?
Gate, globe, ball, butterfly, play, and diaphragm valves are all types of stop or isolation valves. These all valves used for isolation of fluid in a pipeline.
What is a non return isolating valve?
Combination non return Isolating valve prevents the backflow of water from a water heater to the mains line. This serves the dual purpose of protecting the mains supply from contamination, and the loss of water that has already been heated.
Should a shower have an isolation valve?
Re: Isolation Valves on showers It is generally considered good practice to fit an isolation valve e.g ‘ballofix’, to taps, shower valves and the like, because it makes it easier for maintenance or replacement. Instead of isolating the whole water supply, you can simply turn off the valve to that appliance.
Does turning water off affect toilet?
This entire process works through force of gravity and water flow so the only thing you really need to flush is a full toilet tank. However, if the water is shut off, the toilet tank is unable to refill and therefore, you won’t be able to flush the toilet again.
How long does water run after shut off?
– If your water service has been shut off and recently restored, your pipes need to be flushed for 30 minutes to ensure your safety. Water sitting stagnant in pipes may contain lead, copper and other sediments that are not safe for drinking and cooking.
How do you know if a valve is open or closed?
Ball valves are perhaps the easiest valve to see if they are open or closed. If the handle on top is parallel to the valve, it’s open. Likewise, if the handle is perpendicular to the top, the valve is closed.
What is isolation valve in P&ID?
The isolation valve is used to isolate a portion from the system when inspection, repair or maintenance is required. Isolation valves are placed around the junctions in the distribution system. They are also part of the absolute requirement for P&ID construction.
What is a globe valve?
A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.
What is a regulating valve?
a device used to regulate temperature, pressure, flow rate, and other parameters. Regulating valves are used in automatic control and regulating systems and influence the course of technological and heat-and-power engineering processes in accordance with the supplied instructions.
What is isolation valve in fire Main?
Isolating valves separate the section of the fire main within the machinery space containing the main fire pump or pumps from the rest of the fire main and shall be fitted in an easily accessible and tenable position outside the machinery spaces.
Which is better butterfly valve or gate valve?
Advantages and Disadvantages of Butterfly and Gate Valves. Pressure differential: gate valves are generally better than butterfly valves at performing under pressure. Their construction means that flow can keep going without creating any undue pressure fluctuations. And their use doesn’t take much effort.
Can butterfly valves be used for isolation?
Butterfly valves offer true isolation and control capabilities in a single product. Designed for accurate flow and pressure control, they are ideal in applications where positive isolation is required.
What is purpose of globe valve in pipeline?
Globe valves are widely used to regulate fluid flow in both ON/OFF and throttling services. The direction of fluid flow through the valve changes several times, which increases the pressure drop across the valve.
Is a check valve An isolation valve?
Although check valves can effectively shut off reverse flow, they should never be used in place of an isolation valve to contain live steam, in a section of pipe. As with isolation valves, there are a number of different check valve designs, each suited to specific applications.
Are Pegler isolation valves full bore?
If a full bore valve is necessary I would consider the Pegler QT Lever Valves that Screwfix sell under code number 11085, 21860, 21289 & 29086. These are all full bore valves with Blue lever handle, blue tee handle, red lever handle and red tee handle options.
