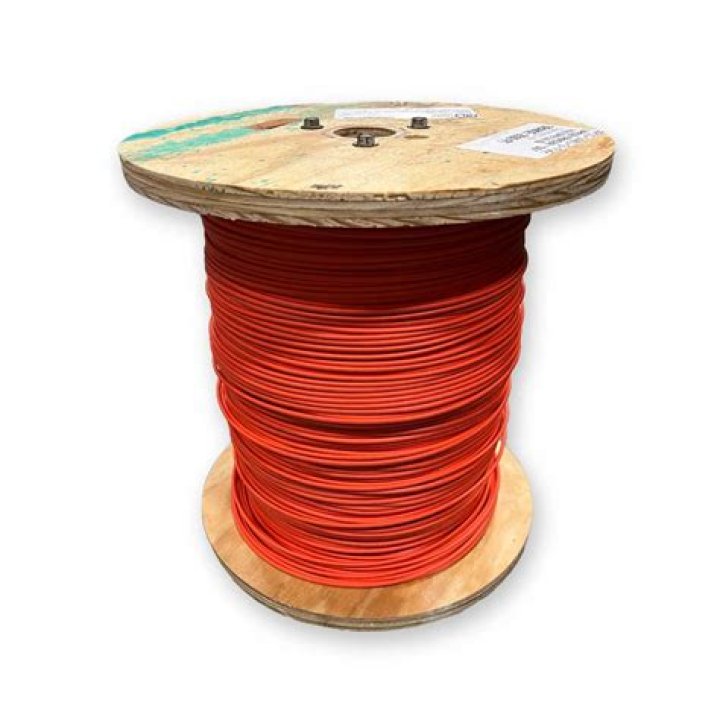

The APWA (American Public Works Association) has a uniform color code so you can look at the tracer wire and know what kind of pipe it is. The red wire is for electric; yellow is for gas, Orange is for communication, blue tracer wire is for potable water and green is for sewer.
What wire is used for tracer wire?
Solid copper or copper clad steel (CCS) work well and there’s no need for stranded. High Strength Copper Clad Steel (CCS ) was introduced to the market in 2004 for tracer wire and it has a 2X strength advantage over solid copper.
What is a tracer wire?
Tracer wire, which is also called locating wire or locator wire, is used to assist in locating pipes and other lines after they’ve been buried in the ground. Once a pipe is laid down, tracer wire is placed along it’s length and buried next to the pipe.
What is red tracer wire used for?
4) Red Tracer Wire Red means the wire is used for buried electrical wire.Is tracer wire required?
In short, it’s critically important to ground a tracer wire system so that the electrical current is pulled along the target line, and underground assets can be located. Accurate location can help prevent costly utility damage and needless hassle.
Is copper wire a tracer?
Our standard tracer wire is a solid copper conductor insulated with high molecular weight polyethylene (HMWPE).
What gauge should tracer wire be?
A coated copper clad steel tracer wire of #12 gauge (or larger) ( KUB item # 300362) shall be installed with all buried plastic mains and services. The tracer wire shall be laid within 6 inches of the plastic pipe where practical and directly above if possible.
What kind of wire can you bury without conduit?
Direct Burial rated wire is approved to be run in the earth in accordance with the National Electric Code (NEC), usually without the use of conduit to surround it. The combination of the insulation material and its thickness keeps out moisture and other harsh factors to protect the wires inside.What is gas tracer wire?
Tracer wire is also known as locating wire or locator wire because it locates pipelines or pipe after burial. … Tracer wire is used to locate gas, water, sewer, electrical, and telecommunication lines.
How does a circuit tracer work?A circuit breaker finder works by using a receiver and transmitter. The transmitter sends a signal that walks through the wire up to the circuit breaker. Then the receiver will then detect that particular signal through a specific breaker.
Article first time published onHow much does tracer wire cost?
It is intended for direct burial use or can be used in plastic pipe to aid in the detection or tracing of underground utility lines for gas, water, sewer, telecommunications or other systems. $0.08 /ft. $0.13 /ft.
Can you splice tracer wire?
Continuous wire installations that have multiple wire laid side-by-side or in close proximity to one another shall not be allowed. Install tracer wire as a single continuous wire. Splicing of wire, if necessary, shall be done in such a way to produce an electrically and mechanically sound connection.
What is the yellow wire next to my gas meter?
There is a yellow wire wrapped around the gas line at the meter, and it is not connected. … This is a tracer wire we put in with the service line in order to locate the line back to the main.
Can I use Thhn for tracer wire?
Pro-Line Type THHN or THWN conductors are used for tracer wire applications not exceeding 600 Volts. Tracer wire is used to conductively locate buried utility lines for the gas, water, sewer, telecommunication, and electrical markets. … Tracer wire is RoHS Compliant and manufacturered in the USA.
Can tracer wire be stranded?
Available in solid and stranded uncoated copper conductors, tracer wire is primarily used in the detection of underground piping and other underground utility installations. Constructed of High Molecular Weight Polyethylene (HMWPE) insulation which has excellent moisture, chemical, oil, crush, and abrasion resistance.
What is Thhn wire?
THHN is a thermoplastic high-heat-resistant, nylon-coated wire. … Extremely popular as an inexpensive building wire, THHN wire serves its purpose admirably and can be used for wiring machine tools, control circuits, and certain appliances.
What is URD wire?
Underground residential distribution wire (URD) is a specialty aluminum wire intended for use in residential construction and light to medium duty commercial applications. … This durable wire is often the go-to solution to deliver power from a pad-mounted transformer to the service entry or meter of a given structure.
Can Romex wire be buried?
Romex is a brand name for non-metallic paper bonded cable (NM-B, as printed on the jacket) with a PVC jacket. This is why type UF is suitable for burying and wet locations (or dry) where NM-B cable is suitable only for very specific dry locations.
What is the best wire for underground?
- Wirenco 12/3 UF-B Wire, Underground Feeder and Direct Earth Burial Cable.
- Wirenco 8/2 UF-B Wire, Underground Feeder and Direct Earth Burial Cable.
- 14/2 UF-B Wire, Underground Feeder and Direct Earth Burial Cable.
- 12/3 UF-B Wire, Underground Feeder and Direct Earth Burial Cable.
What is a tracer device used for?
A signal tracer is a piece of electronic test equipment used to troubleshoot radio and other electronic circuitry. Usually a very simple device, it normally provides an amplifier, and a loudspeaker, often battery-powered and packaged into a small, hand-held test probe.
How do you install a tracer wire?
To lay tracer wire, crews place it length-wise along the buried pipe with an above-ground termination at each end. Once the wire is buried, utility workers and construction teams use a frequency generator (or transmitter) to send a current through the wire and a receiver to pinpoint the pipe’s location.
