Check valves are unidirectional valves that provide unobstructed flow in one direction as long as flow pressure remains constant and protect the piping system against reverse flow. The three main types of check valves we offer are ball, piston, and stop check valves.
What are the 3 different types of hydraulic valves?
Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves.
What is check valve in hydraulic?
Check valves are the simplest form of hydraulic devices in that they permit free oil flow in one direction and block oil flow in the opposite direction. Check valves may also be used as a directional or pressure control in a hydraulic system. … The spring rating varies based on how the valve is used in the system.
What are the types of check valves?

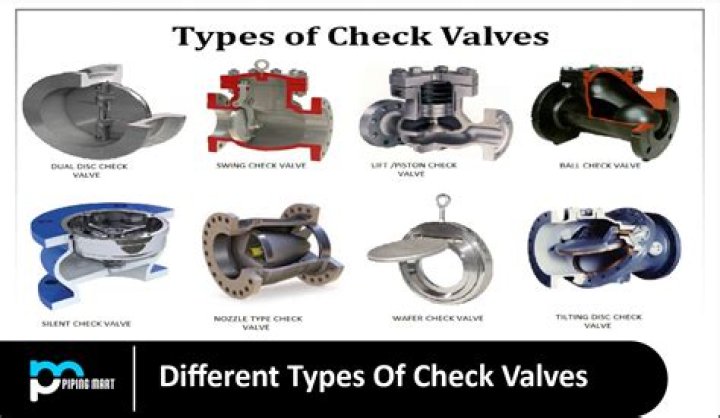

- Ball Check Valves. …
- Globe Valve. …
- Dual Plate Check Valves. …
- Lift Check Valves. …
- Piston Check Valves. …
- Stop Check Valves. …
- Swing Check Valves. …
- Tilting Disc Check Valves.
What is a 3 way hydraulic valve?
A 3-way valve allows fluid flow to an actuator in one position and exhausts the fluid from it in the other position. Some 3-way valves have a third position that blocks flow at all ports. … The 4-way function is a common type of directional control valve for both air and hydraulic circuits.
What types of valves are used in hydraulic system?
The various types of pressure control valves used in hydraulic systems include relief valves, reducing valves, sequence valves, counterbalance valves, and unloading valves.
What are check valves used for?
‘ The main purpose of a check valve is to prevent backflow in the system. Figure 1 shows an example of a check valve. A check valve relies on a pressure differential to work. They require a higher pressure on the input side of the valve than the output side to open the valve.
What does the numbers in 3 2 valve mean?
What The Numbers 3/2 Mean. The first number in the 3-2 type air valve indicates the number of ports the valve will have. The second number indicates the number of positions that the air control mechanism inside this valve can have.What are the 2 types of pressure check valves?
Different types of pressure control valves include relief, reducing, sequence, counterbalance, safety, and unloading. All of them are typically closed valves, except for reducing valves, which are usually open. For most of these valves, a restriction is necessary to produce the required pressure control.
Where are ball check valves used?Ball Check Valve Ball check valves are commonly used in water and wastewater applications. They have very simple operation, and are compact and economical too. These valves feature a rubber coated ball that moves in and out of the seat as flow moves forward and reverse.
Article first time published onHow do you check a check valve?
Put your hand on the valve and place your ear near to it. If you feel or hear any water running, it is a sign that the valve’s seal is leaking. Most of the time, however, you will hear and feel a gentle “click” sound as the valve closes and water will cease running through the valve as the water is shut off.
What is ball check valve?
A Ball Check Valve is a simple and reliable valve with the only moving part to block the reverse flow, is a spherical ball. The full-ported valve seat is uniquely designed allowing the ball to seat leak-tight without getting wedge into the valve seat.
What is a 3-way 3 position valve?
3-Position Toggle Valves are dual function products that contain two valves in one body with a common input and common exhaust. They are routinely used as a pneumatic pilot control for a hydraulic valve or to control the motion of an air motor. …
What is a 3-way pneumatic valve?
3-Way valves feature three passages within a valve body which are used to pressurize and exhaust a port. These valves are primarily used to operate single-acting actuators such as spring-return cylinders.
What is a 4 3 valve?
4-way-3 position direction control valve used in hydraulic system is known as 4X3 DC Valve. The valve has four ports and three positions. … Spool of this valve is having three positions.
Where is gate valve used?
Gate valves are used in many industrial applications including the oil and gas industry, pharmaceuticals, manufacturing, automotive, and marine. Non-rising stem gate valves are very popular on ships, in underground applications, or where vertical space is limited because they don’t take up extra space.
Where are hydraulic valves used?
Hydraulic valves are used in hydraulic power packs to direct the fluid to and from the cylinder. Hydraulic valves can be used to control the direction and amount of fluid power in a circuit. So these valves would do it by controlling the pressure and the flow rate in various sections of the circuit.
How many valves are in a hydraulic system?
Hydraulic Four-Way Valves. Four-way directional-control valves are installed to manage the direction of fluid flow in a hydraulic line, which commands the direction of the rotation of a fluid motor or the movement of a working cylinder. These valves usually are the sliding-spool model.
How do you check a hydraulic valve?
The Cross computer stock number is stamped in the shaded area on the handle end of the valve body on recent valves. On older valves, the Z casting number is on the back which would tell you which series, but individual functions would have to be described.
What is a 4 2 way valve?
4/2 Valves A 4-way 2 position valve is known as a 4/2. These valves are common in double acting cylinder applications where they are always supplying pressure to one side of the cylinder while venting the opposite side to atmosphere.
What is hydraulic pilot valve?
A hydraulic pilot valve is the part of the machinery that controls the high pressure of the hydraulic fluid as it passes through the machine, and regulates the functioning of the other valves. Valves in hydraulic equipment are commonly called pilot-operated valves.
What is Wafer check valve?
Wafer check valves use a swinging disc to allow or block flow. Their design allows them to be fitted in extremely tight spaces – where the flanged check valve can not be used. The wafer check valves have molded bodies around the area where the disc opens up.
What does the number 5 3 valve mean?
A 5/3-way valve has five ports and three states. They have two solenoids that each can control a valve state. If no solenoid is energized, the valve returns to the central state. Therefore, the valve is mono-stable.
How does a 3-way pilot valve work?
This pilot valve is a small direct operated 3/2-way valve. The pilot valve delivers compressed air to a small air cylinder inside the valve. The compressed air in this cylinder pushes against the piston and actuates the solenoid to switch the valve. This way, a relatively small solenoid can be used to switch the valve.
How does a 3 port solenoid valve work?
A 3-way directional control solenoid valve has 3 pipe connections: the cavity port, the body orifice port and the stop port. … Energizing the valve raises or lowers the plunger. Raising the plunger seals off the stop orifice and opens up the body orifice directing flow through the body of the valve.
What is the another name of check valve?
A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
Which check valve is best?
- In general, ball check valves are simple and cost effective. …
- Swing check valves are the most common check valves. …
- Because of the internal shafts which are within the flow stream, the tilting disc check valve is used for water and treated effluent applications.
Is a check valve a backflow valve?
A check valve provides a basic form of backflow prevention, preventing water from flowing in the wrong direction. National Fire Protection Association (NFPA) model codes and standards require them in various places on fire protection systems, and check valves are essential components of backflow preventers.
What is a poppet check valve?
A poppet check valve incorporates a disc (normally at the end of a “sleeve” or “stem”) utilized as the checking mechanism. It is often spring loaded to help close the valve prior to fluid flow reversal. This eliminates the hydraulic shock also known as water hammer.
How do you test hydraulic pressure?
- Filling the circuit with working fluid.
- Pressurizing the pressure line to the pressure line test pressure.
- Releasing the Pressure of the pressure line.
- Pressurizing the return and drain line to their respective test pressures.
How does a hydraulic pilot check valve work?
Pilot operated check valves work by allowing free flow from the inlet port through the outlet port. Supplying a pilot pressure to the pilot port allows flow in the opposite direction. Air pressure on top of the poppet assembly opens the seal allowing air to flow freely.
