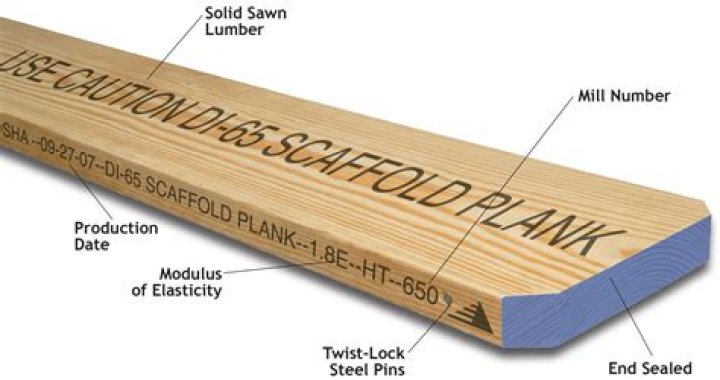

OSHA Grade Planks are made of Yellow Southern Pine, Clipped, Rodded and OSHA Stamped. Come in three sizes: 8′, 12′ and 16′ lengths. All planks are 2″ high by 10″ wide and rod and clipped.

What kind of wood is scaffold planks made from?

(a) made of No. 1 grade or better spruce or fir.

Can you cut an OSHA plank?

Cutting them to length is not a problem since there is no special treatment of the end of these planks. Do use reasonable care in cutting and handling the planks to avoid having any separation of the lamination.

What are scaffolding planks made of?

Wood, such as fir or pine, is the most common material. High-quality wooden planks, such as Kennison Forest Products solid sawn scaffold planks or sure-lam LVL (laminated veneer lumber) scaffold planks, provide durable, safe planking solutions.

What are OSHA boards?

The Occupational Safety & Health Standards Board, a seven-member body appointed by the Governor, is the standards-setting agency within the Cal/OSHA program. The Standards Board’s objective is to adopt reasonable and enforceable standards at least as effective as federal standards.

What is scaffolding wood?

Scaffolding wood is untreated pine, roughly sawed and not planed, and is originally used in construction, as a walking board between scaffolds. Because it is not processed, it starts to turn gray.

Is scaffold board a hardwood?

Scaffolding wood is a safe material to keep in homes. Although it is softwood, scaffolding wood comes in thick planks that make sturdy furniture. If it is not treated with glues, finishes and paints, scaffolding wood can be recycled into engineered wood products or fuel.

What two types of planks are most suitable for use as scaffold planks?

1.2.6 Uses of Wood Plank Wood and Engineered wood product planks are used as temporary platforms on supported scaffolds.

Are scaffold boards Pine?

This wood is selected over wood grown in the UK such as Sitka Spruce and Scotts pine as it is the correct size and has superior structural integrity, which is inherent in the trees genetic make-up.

What is scaffold grade lumber?

Scaffold grade lumber is higher grade than construction grade lumber. Scaffold grade lumber must have greater than 6 rings per inch, the slope of the grain must be one inch to the side for every 14 inches along the length of the board for Southern Pine, and it must have very few defects such as knots and notches.

Article first time published on

How much weight can an OSHA plank hold?

Rated load capacityIntended loadMedium-duty50 pounds per square foot applied uniformly over the entire span area.Heavy-duty75 pounds per square foot applied uniformly over the entire span area.One-person250 pounds placed at the center of the span (total 250 pounds).

Are gaps allowed between the planks of a working platform?

The Australian Standards for Scaffold Planks (AS 1577 – 1593) provides numerous and very specific compliancy rules when it comes to scaffold planks. It states that each scaffold plank on working platforms should: … Be positioned so there are no gaps between planks which are greater than 10mm, and.

How much does a 16 foot OSHA plank weight?

Weight: 64.0 lbs.

How much can a scaffold plank deflect?

The mandatory rule is found in OSHA 1926.451(f)(16) and says a scaffold board cannot deflect more than 1/60th of its length when loaded. This means a board on a 7′ span can deflect up to 1.4″ when fully loaded.

What is the legal span of plywood on a scaffold deck?

For example, federal OSHA allows overhangs up to 18 inches for plank longer than 10 feet, California allows 18 inches for any length plank and the US Army Corps of Engineers limits all plank overhang to 12 inches, regardless of plank length.

What is the minimum thickness of a scaffold plank?

Try to plank the entire working level of a scaffold for maximum support and stability. Use a minimum of 48 mm thick Number 1 Grade spruce-pine-fir (SPF) planking or better.

Do scaffold boards rot?

Fungal decay, usually wet rot, is common in poorly stored scaffold boards. It can be detected by discolouration of the wood, which also becomes softer –a screwdriver can be easily pushed into attacked wood. Rot often starts at cracks or around knots in wood because water is retained in these areas.

Do scaffold boards warp?

They are always warped and twisted… no board is ever the same and they are never the same thickness or depth throughout their length… this is their characteristic because they were never sawn in the timber mills to be made into furniture…

Are scaffold boards waterproof?

Rough scaffolding wood treated with Woodcon for a water-repellent surface. Woodcon settles around the fibers of the wood and makes the scaffolding wood of your planter completely waterproof, all thanks to an transparent coating in-and-on the wood surface.

What is the most commonly used scaffold plank?

Solid-sawn planks The most common wood used for solid-sawn scaffold planks is southern yellow pine, which the Southern Pine Inspection Bureau grades as DI-65 or, less commonly, DI-72.

What are the three types of scaffold?

  • Suspended Scaffolds.
  • Supported Scaffolds.
  • Aerial Lifts.

Does OSHA inspect lumber?

OSHA does not inspect lumber; therefore, any scaffold planking stamped “OSHA Approved” is, at best, misleading, and should not be assumed to meet the standard on the basis of that stamp alone. An inspection agency can claim that its product meets OSHA requirements.

Can you use scaffold boards for flooring?

A cheaper option for flooring are used scaffold boards, at a fraction of the cost of reclaimed floorboards you get a lot more coverage for your money. With a bit of DIY knowledge, time and money and elbow grease the results are great.

Why do bands have scaffold boards?

Our scaffolding board end bands are used with scaffold boards to stop the ends of the timber from splitting. These are great to add an industrial effect for shelving or other furniture when cutting down our scaffolding boards or using with our timber boards.

Can I use scaffold boards for raised beds?

Raised beds are ideal for fruit and vegetable growing because maintenance is easier, as you don’t need to dig, and the soil doesn’t get walked on and compacted. A robust raised bed can be constructed from interlocking scaffolding boards, which look attractive and are inexpensive.

What is the purpose of scaffold plank?

In the building and construction industry, scaffold boards—also referred to as walkboards or scaffold planks, scaffold wood, and scaffolding wood (when made from wood)—are materials used along scaffolding structures to facilitate safe working conditions at height.

How many inches must the planks extend past their support?

All planking or platforms must be overlapped a minimum of twelve (12) inches and secured from movement. Scaffold planks shall extend over their end support at least six (6) inches but no more than twelve (12) inches.

What does Cleating a scaffold plank refer to?

Cleat means a structural block used at the end of a platform to prevent the platform from slipping off its supports. … Crawling board (chicken ladder) means a supported scaffold consisting of a plank with cleats spaced and secured to provide footing, for use on sloped surfaces such as roofs.

Can scaffold planks be painted?

Do not paint or plaster scaffold planks, and if paint or plaster is observed, promptly remove the plank from service.

What type of plywood is used for scaffolding?

We use ¾-inch plywood with supports that are no more than 2 feet (on center) apart to build our large area scaffold decks.

How do you inspect scaffolding planks?

Inspect wooden planks and ensure there are no cracks or splits greater than 1 /4-inch, long end splits, several large loose knots, warps greater than 1 /4 inch, boards and ends with gouges, mold, separated laminate(s), and grain sloping greater than 1 in 12 inches from the long edge.
