You should have refrigerators and freezers installed on a 15-20 amp dedicated 120 volt circuit. This will avoid an electrical overload due to your current wiring not being capable of handling the additional power.
Does a refrigerator need a 15 or 20 amp circuit?
Refrigerator Circuit A modern refrigerator requires a dedicated 20-amp circuit. You may currently have a smaller refrigerator plugged into a general lighting circuit, but during any major remodeling, install a dedicated circuit (120/125-volts) for the refrigerator.
How many amps does refrigerator require?

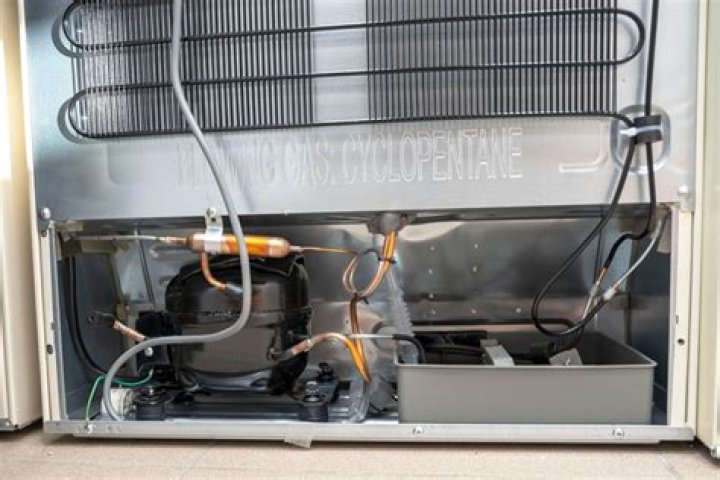

Refrigerator amps are the amount of electrical current it’s compressor uses to cool it’s compartment. Amperage for most household refrigerators, is anywhere from 3 to 5 if the voltage is 120. A 15 to 20 amp dedicated circuit is required because the in-rush amperage is much higher.
Can I run a refrigerator on a 5 amp circuit?
The power rating will look something like 220–240V AC 5A, which is that it’s rated to run on 220 to 240 volts alternating current with 5amps. If the amperage number is 5 or less, you’re OK.Can I run a refrigerator on a 15 amp circuit?
Having the refrigerator on its own dedicated circuit is the recommended best practice for homeowners. Most refrigerators run between 3 to 6 amps, with that said, a refrigerator can spike at peak usage up to 15 amps. … You should have refrigerators and freezers installed on a 15-20 amp dedicated 120 volt circuit.
Can fridge run on 6 amps?
In general, refrigerators use between 3 to 6 amps.
Should refrigerator be on GFCI?
Should a refrigerator be plugged into a GFCI outlet? A refrigerator shouldn’t be plugged into a GFCI outlet. GFCI outlets are used in areas of the home with water or moisture. These include bathrooms, basements, and kitchens.
How many amps does a Dometic fridge use?
The fridge takes 5 amps. The panels produce up to 15 amps in total.How many amps does a small refrigerator draw?
In general, mini-fridges use between 55 watts and 85 watts, but many can run up to 240 watts. In this case, when applying the formula, most mini-fridges will use 2 amps or less. This is extremely useful if you are thinking of buying one for your dorm as this is a restriction set by most universities.
How many amps does a 18 cu ft refrigerator use?The power requirements on all models will vary from manufacturer to manufacture, so it is best to examine the specification tag on the rear to get the exact details. On average, an 18-cubit foot fridge will require 115-volts and 15-amps of power.
Article first time published onHow many amps does a refrigerator freezer use?
A refrigerator-freezer will draw about 1.5 Amps to 2 Amps, translating to 180 Watts to 240 Watts of power consumption at 120 Volts. The freezer is usually only of the capacity of a mini-freezer. It’s more energy-efficient to have separate refrigerator and freezer appliances.
Can a fridge run on low voltage?
Under normal circumstances, the refrigerator can work on within 187 ~ 242 V voltage. … If the voltage is lower than 187 V, the refrigerator can’t work on and even burn down the compressor. If the voltage is higher than 242 V, the compressor and other electric parts are easy to be burnt out.
Do fridges need special outlets?
Refrigerator – Most refrigerators work with a standard 100-120 volt electrical plug and outlet. You will notice that the electrical plug is made up of three prongs; this means you will need an electrical outlet that has three inserts. … It is best to use an outlet that has a Ground Fault Interrupter or GFI.
How many appliances can run on a 20 amp circuit?
The maximum number of electrical outlets you can run on a 20-amp circuit is ten. Ten outlets will power devices and appliances without exceeding the 80% capacity rule for residential electrical wiring.
Does a mini fridge need to be on its own circuit?
2 Answers. In the US, under the NEC, a residential kitchen fridge is not required to be on a dedicated circuit. It is certainly a good idea and best practice, but not a requirement. A fridge can be on one of the minimum two required “small appliance branch circuits”.
Does a refrigerator need to be on an arc fault breaker?
So, the answer is, Yes, circuits that supply outlets for refrigerators do need to be arc-fault protected, with very few exceptions. There are a few rooms where it is not required, if your state still uses NEC-2014, or if your state does not use NEC.
Why is my refrigerator tripping the GFCI?
The most common reason your refrigerator keeps tripping the GFCI outlet is that it may be somehow getting shorted. Look for exposed wires that may be touching the ground or some water accumulation, causing a short circuit. If there is a shorting, then the GFCI trips save the device from getting damaged in any way.
What would cause my refrigerator to trip the GFCI?
This is usually caused by multiple appliances being plugged into the same circuit. To avoid this happening, make sure that your refrigerator has a dedicated circuit, which you can do by plugging your refrigerator into an alternative power outlet and seeing if it still trips.
Is it safe to use a 6 amp plug on a 16 amp socket?
it’s absolutely unsafe. The 16 Amp plug will have an appliance to draw a current more than 6 Amps n if continue to draw more than the allowed current I. E. 6 Amps, will definitely overheat the wires n resultant of burning and short circuit n at times it may lead to fire hazards too.
How much amps does a TV use?
Domestic Portable ApplianceAmps UsedWatts UsedLandline cordless telephone charger<0.510Computer monitor<0.525Desktop computer1.3Up to 300Television 55” UHD<0.5120
How many amps does a small freezer use?
A 5 cubic foot freezer will typically use less than 1 amp when running. Upon start up, a 5 cubic foot freezer will use around 4 to 5 amps.
How many amps does a 20 cu ft refrigerator use?
Refrigerator Power Usage Generally, a fridge uses about 6 or 7 amps, but triple that for the start-up surge, so a dedicated power outlet with 15 to 20 amps is required for a fridge. It should be the sole appliance plugged into that outlet.
How many amps does a 12V fridge draw?
However, most will consume in between 1 amp and 6 amps (with 2.5 amps being fairly average) an hour when running. However, a fridge won’t usually run 100% of the time, so it only pulls that current when the compressor comes on.
How many amps does an RV refrigerator draw?
LoadWattsAmps @12V12V Outlet, Socket120-1301012V Outlet, USB252.1AC/DC RV Fridge50-1804-13.5AC/DC Fridge/Freezer, Portable8-300.7-2.3
How many amps does a propane fridge use?
120 Volt AC Amp RatingsAppliance or Electronic EquipmentEstimated AmpsRange Hood (Fan & Light)2-3 AmpsRefrigerator (LP Gas Mode)1.5- 2 AmpsSecurity System1 Amp
How much power does a 12V Dometic fridge use?
Under normal conditions the 75DZW’s power consumption is modest (1.3 amps per hour), however, used in high ambient temps or without pre-cooling, the fridge can put a big drain on your battery.
How many amps does a 3 way fridge draw?
Based on 150W, your fridge will draw a constant 12.5amps; there is no thermostat control on 12v. Unlike new 12v only fridges which use compressors and use as little as 2amps, the 3-way fridges use heater elements – use lots of amps.
How do I know how much power my refrigerator uses?
To determine the wattage of your refrigerator, look at the sticker inside your fridge and search for the number of volts and amps. Multiply these numbers to determine how many watts your fridge uses. For example, an old refrigerator could have a 115 V and 6.5 amps, for a total of 747.5 watts.
How many amps does a LG refrigerator use?
Amperage: 15 Amps. Product Weight: 348 Pounds.
How many amps does a Frigidaire refrigerator use?
The actual running draw on a fridge of this size averages about 720 watts or 6 amps. Depending on the ambient temperature, you may find that the duty cycle for this refrigerator will change when running off-grid.
Does freezer need dedicated circuit?
A freezer is considered a permanent appliance, so it should be on its own “dedicated” electrical circuit. … Dedicated circuits eliminate the possibility of current overload and shut off problems due to having another appliance on the same circuit operating at the same time.
