So, while rafter air channels are not required between every rafter, they are necessary for each air intake piece. The general rule of thumb is one soffit intake and rafter air channel for every 150 square feet under the roof.

How many rafter vents do I need in my attic?

The first step in determining how many rafter vents your home needs is to determine your home’s vent space in square feet. The general rule is that you must have one square foot of vent space for every 150 square feet of attic area.

Do I need insulation baffles in every rafter?

Keep in mind not all rafter need baffles, just those with intake vents at the soffit. If you don’t have baffles installed, check your intake vents for any type of blockage for insulation or debris. This can be cumbersome since you will need to squeeze to the corners of your attic.

How many vents do you need in a roof?

But how many roof vents does one home really need? A general guideline is homeowners need one square foot of roof vent for every 300 square feet of ceiling space, if your home has a roof with a vapor barrier, or 1:300. If not, you should have one square foot of roof vent for every 150 square feet, or 1:150.

Can you have too many attic vents?

It’s possible to have too much exhaust ventilation, but you cannot have too much intake ventilation. If there is more intake ventilation than the attic’s square footage requires, it’s not problematic because any excess intake converts to “exhaust” on the leeward side of the house.

How far apart should rafter vents be?

Measure the space between rafters in order to get the right size for the rafter vents. The rafter air channels will need to be able to be installed between rafters and generally need at least 16 inches. Place metal, plastic, foam, or cardboard attic baffles between rafters.

Do I need to install rafter vents?

To get the best performance out of your insulation year in, year out, you would do well to install rafter vents in your attic. … That air flow helps keep the attic cooler during the summer, and during the winter, it helps keep ice from forming on the edge of the roof. It also guards against mold, mildew, and rot.

Which is better ridge vent or roof vent?

The majority of roofing experts agree that ridge vents are the most effective and cost-effective roof vents available. Without baffles (blinders that prevent outside air from crossing over the vent), a ridge vent may create almost no ventilation at all.

How many off ridge vents do I need?

The general rule of thumb in these situations is of roughly one vent per every 300 square feet of attic area if the attic has a vapor barrier. If not, there should be one vent for every 150 square feet. You will need to have 1 square foot of vent area for every 150 square feet of attic space.

Are roof vents worth it?

Roof vents are important because they extend the life of your roof, reduce energy costs, and reduce indoor temperature extremes. They also prevent damage to your shingles and prevent them from cracking.

Article first time published on

How many soffit vents do I need calculator?

Divide the soffit vent space needed by the square footage of each vent to calculate how many soffit vents you need. Using the previous example, if you need 10 square feet of soffit vent space and each vent is 0.89 square feet, you need 12 soffit vents.

How far apart should soffit vents be?

How Far Apart Should Soffit Vents Be? The ideal space between soffit vents will depend on your roof’s total square footage (or attic) and the number of soffit vents used to ventilate it. It’s recommended that all soffit vents be spaced at equal distances from one another on the sides of your roof under the eaves.

Where do you put Rafter Vents?

Rafter vents should be placed in your attic ceiling in between the rafters at the point where your attic ceiling meets your attic floor. Once they are in place, you can then place the batts or blankets, or blow insulation, right out to the very edge of the attic floor.

What is the best way to vent a roof?

For the best results, place roof ventilation near the roof’s peak and soffit vents in the eaves. Air flows in through the soffit vents and out through the roof vents. Vents come in various styles. We chose rectangular, hooded roofing vents and rectangular soffit vents because they’re easy to install.

Is attic fan better than ridge vent?

Ridge vents are much cheaper and more durable than attic fans. They’re more cost and energy-efficient. But they can’t ensure proper ventilation always. Hence, for larger and congested spaces, an attic fan is the best option.

What is the hottest temperature your attic should get?

The ideal temperature in your attic should be no less than 60 degrees Fahrenheit in the winter and no more than 10-20 degrees hotter than the outside temperature in summer, with a maximum of about 130 degrees Fahrenheit.

Does my roof need soffit vents?

So, does my roof need soffit vents? A roof may need soffit vents if there is no other ventilation allowing for adequate air movement. However, if the attic space is properly sealed and insulated, there is no need for this type of ventilation. There is no question that a standard attic space should be vented.

Why do you need soffit vents?

The purpose of venting soffits is to evenly distribute an airflow throughout the roof space to ensure the roof remains dry and free from mold.

Can you have too many soffit vents?

You can’t have too much soffit venting, but it’s worth noting the minimum requirements. Usually, 4-in. by 16-in. soffit vents are rated for 26 sq.

What are rafter vents used for?

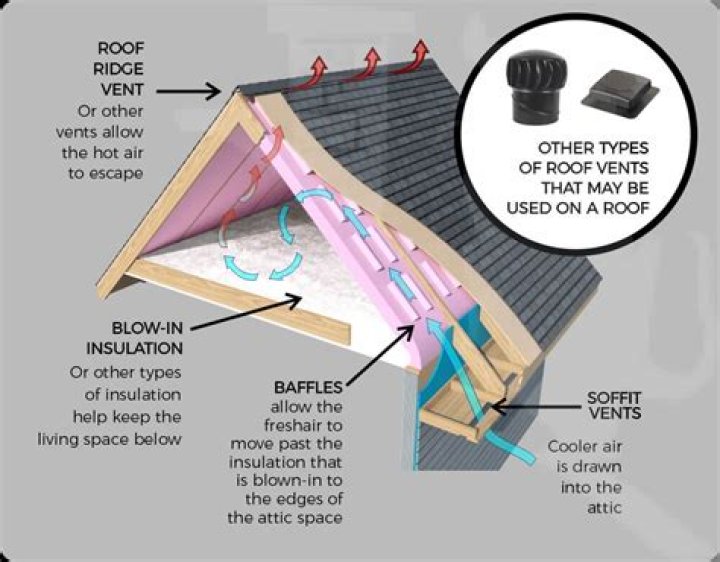

Rafter vents, often called baffles protect intake vents in your attic from becoming clogged or covered by insulation or debris. Rafter vents ensure the soffit vents are clear and there is a channel for outside air to move into the attic at the soffits and out through roof vents.

Do you need soffit vents with ridge vents?

Ridge vents can work without soffit vents, however, this won’t be very energy efficient. Without soffit vents, the ridge vents will draw air from some other inlet on the roof like a gable, but this will limit the extent of air circulation in the attic.

How much ventilation does a ridge vent provide?

Types of Ridge Vents and Net Free Venting Area per Linear FootRoof Ridge Outlet Ventilation Product ExamplesSq.In. of net free ventilationGAF Cobra® rigid Ridge Vent-2, Ridge Vent 3, & Snow Country ridge vent products18 sq.in. per linear foot, covered by cap shingles

Is a ridge vent necessary on a roof?

In addition to allowing air to circulate, a ridge vent on your roof prolongs the life of your roof. It also helps to moderate the overall temperature of your home, increasing your energy efficiency. For these, and other, reasons, roof ridge vents are considered an essential part of most modern roof design.

Will ridge vents leak?

With proper installation and care, ridge vents should not leak. However, improper installation leads to leaky vents. … When a shoddy or inexperienced contractor fails to overlap the pieces or doesn’t extend the sections enough, the vents will eventually leak.

Do I need ridge vent if I have gable vents?

To summarize: Seal air leaks in your attic floor so that roof venting doesn’t suck conditioned air into the attic and cause moisture problems. Adding a ridge vent is a fine idea, and don’t worry about it competing with the gable vents. If the gable vents aren’t letting in rain or snow, leave them alone.

What happens if a roof is not vented?

They say that poor or non-existent ventilation might cause attic temperatures to rise to 150 degrees or higher in the summer. That can lead to damaged shingles and other roofing materials as well as a buildup of condensation and development of mildew and mold.

What percentage of the total venting should be at the soffits?

Builders refer to this as the 1 in 300 rule, and it requires that the total venting space should be at least shared equally between the soffit and roof vents. Builder Tim Carter recommends 60 percent soffit venting. The soffit vents should be evenly spaced on both sides of the roof, just under the edge.

How do you measure a roof vent?

  1. Measure. Measure the length and width of the attic floor space to be ventilated.
  2. Calculate. Enter the length and width or the total square footage of the attic floor space to be ventilated.
  3. Identify. See recommended quantities below for each GAF Ventilation Product (typically rounded up).

How much space do you need for a ridge vent?

It is best to create a minimum of 1 inch of clearance on either side of the ridge board (ridgepole) to allow airflow through the opening and into the vent. If there is no ridge board present, as with some truss-framed roofs, the opening should be at least 1 inch from the ridge on both sides.

How many 3 soffit vents do I need?

The general rule of thumb on the amount of total attic vent space needed is to have at least one square foot of vent space for every 150 square feet of attic area.

Do you need attic baffles with batt insulation?

Baffles are required anywhere the insulation can block vents or get too close non-insulation rated recessed fixtures (can lights). Mostly we use insulation baffles prevent blockage of soffit vents from blown in insulation. Batt insulation can simply be held back and physical baffling isn’t really needed.
