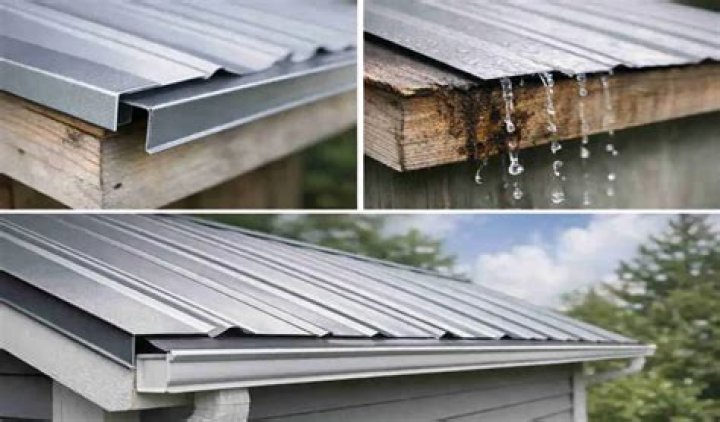

A typical metal roof overhang may be 2 to 4 inches, or even less. Some slight overhang is recommended, in conjunction with a drip edge flashing, to prevent water from getting under the roofing and onto underlying wood.
How far should a metal roof overhang the edge?
3: The panels at the eave side of the roof should overhang into the gutters 1 to 1-1/2 inches. If installing metal on a non gutter application you can overhang the panel up to 3 inches.
How far should a metal roof overhang a gutter?
How Far Should a Metal Roof Overhang The Gutters? Metal roofing experts say that the panels should overhang the gutters from 1 to 1.5 inches.
How far should metal roof overlap?
Most experts recommend having the overhang measure anywhere between about an inch-and-a-half and two inches.Does a metal roof need a drip edge?
A drip edge is not needed for metal roofing. If you make sure to overhang your metal roofing at least an inch, the drip edge is not necessary at the eaves and rakes. If the metal roof is hanging over an inch, the water will be directed away from the fascia anyway if at a slant.
How far can a roof overhang without support?
Two feet is the general maximum length for a typical roof overhang. This will protect a roof from most types of damage. Roof overhangs can extend farther than 2 feet, but beyond this length, they begin to lose structural integrity and require external support.
What goes on the edge of a metal roof?
Eave trim is the metal flashing that covers the low side of the building. Simply put, it’s installed on the side of the building that follows the pitch of the roof. Eave trim is used when a gutter is not required. … Eave trim is also referred to as drip edge or eave flashing.
Should a metal roof be installed over battens?
By design, some metal roofs MUST be installed over battens, some MUST NEVER be installed over battens, and some can be installed over battens OR solid decking. So, whichever way you go, it’s important to choose the right product and install it per manufacturer specifications.How much should a roof overhang?
Overhangs can vary from a few inches to a few feet depending on preference; however, the suggested width of an overhang is between 12” and 18” for eaves and no more than 8” for rakes. That said, overhangs can extend as far as 2′ without the need for external supports.
Can you put rain gutters on a metal roof?Gutters can be installed on homes with metal roofs, as long as the system is attached to the fascia board with brackets or spikes and ferrules. … First, gutter systems should be mounted as high as possible when part of a metal roofing drainage system.
Article first time published onHow much should a corrugated roof overlap?
The upper sheet should overlap the first by 6 inches. Fasten the sheet and complete the second row in the same manner as the first. Each sheet should overlap both the sheet below it and the sheet to the side.
How do you measure a roof for metal roofing?
Determine the length of the metal panels needed for one side of your roof by measuring from the fascia board (the board attached to your roof joists) to the ridge (the peak) of the roof. For example, your roof could measure 12 feet to its peak. This number will tell you the total length of metal panels needed.
Do you need flashing on a metal roof?
Roof flashing is a thin metal material that roofers install to direct water away from certain areas (walls, chimneys, roof valleys) of your roof. It’s a crucial roofing material that every roof needs to have. … These common types of metals are aluminum, steel, or copper.
Where does drip edge go on a metal roof?
Drip edge is metal flashing installed at the edges of the roof to keep water away from your fascia and from getting underneath your roofing components. If your roof doesn’t have drip edge, water gets behind your gutters and rots out both your fascia board and roof decking.
What do you put down under metal roofing?
The traditional and most common material used for roof underlayment on a steep-slope metal roof is non-perforated, asphalt-impregnated felt underlayment. There are several types of felt underlayment including both organic reinforced and inorganic reinforced.
What is rake trim on a metal roof?
Also known as rake trim, gable trim is a finishing piece of metal flashing used along the edges of a metal roof line where the edge of the metal roof panel meets the endwall panels.
Should there be a gap between drip edge and fascia?
The best installation method is to leave a gap between the drip edge and the fascia board, about the width of a finger. The shingles should also overhang the drip edge 3⁄8 to 1/2 an inch.
Should I overlap drip edge?
The drip edge should always be installed with the flashing under the felt on the eaves side and over felt on the rakes unless local code dictates otherwise. … For proper water drainage, the drip edge on the rakes should always overlap the drip edge on the eaves.
What is a rake overhang?
The American Wood Council’s 2012 Wood Frame Construction Manual defines rake overhang as “The horizontal projection of the roof measured from the outside face of the gable endwall to the outside edge of the roof.” Section 2.1. 3.4.
How far can you overhang a truss?
Overhang is the portion of the truss that extends beyond the outside bearing of the structure, creating an eave for the building. Overhang length can vary from as small as 6” to as great as 36” in certain applications.
Do roofs need overhangs?
In general, a south-facing overhang will direct the sun’s rays lower on the window, allowing less light in and preventing that light from heating up the house in the summer. This means less need for air conditioning, less energy used and less money spent. … So large roof overhangs are functional and they also look good!
How do you calculate overhang?
The simplest way to calculate options overhang is to add up existing and future option issues divided by the total number of stock outstanding. For example, suppose a company has already issued 50,000 options and has plans to distribute 50,000 more.
How far should roof sheathing overhang fascia?
Ideally the sheathing should be on top of the fascia without extending beyond it. Guesswork can create a situation in which it extends too far and it interferes with flashing installation, or you have to cut it. If the fascia is to be one layer of 1x, I overhang the sheathing 5/8.
What does a roof overhang do?
Roof overhangs have several important functions: they can protect exterior doors, windows, and siding from rain; they can shade windows when solar heat gain is undesirable; and they can help keep basements and crawl spaces dry.
Do I need furring strips under metal roof?
When installing a metal roof over an existing roof, insulate the spaces between the wood strips with rigid insulation to prevent condensation before installing the roofing. You also need to add furring strips. … Twenty-four inches is a common spacing of furring strips for a metal roof.
Do metal roofs need air gap?
Therefore, metal roofing manufacturers often recommend providing an air gap between the metal roofing and the sheathing. This is achieved with furring strips ran vertically to assure air flow, and then run horizontally to support the roof.
Does a metal roof need purlins?
In general, purlins are used instead of traditional decking when it comes to metal roofs. … Decks can help support the enormous weight of roofing more easily, and therefore are recommended for larger projects, like industrial and commercial metal roofing.
What are the problems with metal roofs?
- #1: Oil Canning. According to the Metal Construction Association, oil canning is defined as: …
- #2: Leaking. …
- #3: Scuffing & Scratching. …
- #4: Corrosion. …
- #5: Dissimilar Metals & Materials. …
- #6: Chalking & Fading. …
- #7: Other Installation Error. …
- Choose the Right Metal Roofing Contractor.
How much overhang do you need for gutters?
How Far Should Gutters Be From the Roof Edge? A safe distance between the gutter and the roof edge should be between 2 to 3 inches. If the gutter distance is more than 3 inches, the rain will run off the roof and won’t drain properly.
Does metal roofing increase home value?
While there are cheaper options on the market, metal roofing offers performance, protection, and profitability. Today, a metal roof can increase a home’s resale value up to 6% when compared to asphalt.
Is butyl tape necessary for metal roofing?
Butyl synthetic rubber adhesive is designed to provide a secure seal between metal panels in metal roofing and metal siding applications. When installed between each panel overlap, butyl tape forms an effective weather barrier against moisture, dirt, air, and allergens.
