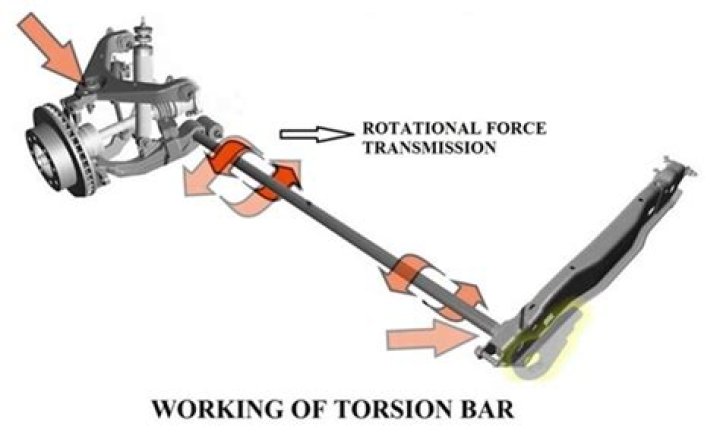

The torsion bar is basically a length of metal rod anchored at one end to the car body and at the other end to the suspension lower link. As the wheel passes over a bump the bar twists. It returns to its original position when the bump is passed and restores the car to its normal drive height.

Is torsion bar suspension good?

The main advantages of a torsion bar suspension are soft ride due to elasticity of the bar, durability, easy adjustability of ride height, and small profile along the width of the vehicle. … A disadvantage is that torsion bars, unlike coil springs, usually cannot provide a progressive spring rate.

How does a torsion beam suspension work?

How does torsion-beam suspension work? It is basically as simple as it sounds: two wheels are attached to the ends of a bar, which twists slightly when under load. … That design gives the wheels a certain degree of independence, but not entirely because they are still attached together by that beam.

Is it bad to turn torsion bars?

DO NOT turn your torsion bars up more than about 2-3 turns at the most! You will raise all kinds of hell with your truck. Its hard on ball joints, hard on the torsion bars, hard on shocks, hard on CV joints, and unless you align for the extra ride height, hard on tires.

How do you lift a torsion bar suspension?

You can perform a torsion key lift by simply turning up the vehicle’s existing adjusters or by replacing the stock keys with a set designed to increase ride height. It controls the bar’s distance from the ground and ensures the vehicle stays at the set height.

Are torsion bars good for off road?

For mall crawling and mild off road fun a torsion bar lift will be great, low cost (relatively), good looks and easy. For more serious off road use a custom coil-over setup will be better but it will cost more as well…

Is torsion beam suspension bad?

While the torsion beam or “twist beam” isn’t as compromised as a solid axle, neither is it a truly independent suspension. Stiffer bushings can compensate for the torsion beam’s inherent side-to-side compliance, but that comes with a toll of greater impact harshness.

How much lift can you get from torsion bars?

The main advantage of torsion bars is that they can easily be adjusted to increase ride height. Torsion-bar adjustment on some applications can be attained by the turn of a wrench. About 2 to 3 inches of lift can safely be achieved by adjustment.

What happens if a torsion bar breaks?

When one breaks you will a loud bang and the left or right front will sit very low and ride on the bumpstops.

Do torsion bars need adjustment?

Adjust the torsion bar. Turning the adjustment bolt clockwise will tighten it, raising the amount of load that can be placed on the bar. This will raise the vehicle when it is taken off the jack stand. … If they are not, then more adjustment will be necessary to the torsion bar adjustment bolts.

Article first time published on

Why you shouldn't level your truck?

Your truck’s suspension could wear out faster. Leveling kits for a truck can also place more pressure on your suspension components. The added stress from the modification could make them wear out at a faster rate compared to the usual wear-and-tear that they’d experience.

How do you check torsion bar suspension?

  1. Shine a flashlight into the wheel well of the car or truck. The torsion bar will be sticking out from the car’s frame perpendicularly. …
  2. Feel along the torsion bar for rust. Rust patches will feel gritty like a scab. …
  3. Turn the car of truck on and take it for a test drive.

What is the purpose of the torsion bar?

In automobiles a torsion bar is a long spring-steel element with one end held rigidly to the frame and the other end twisted by a lever connected to the axle. It thus provides a spring action for the vehicle. See also spring.

How far can you tighten torsion bars?

You can go as high as long as you maintain at least 5/8’s of a inch between the UCA and frame stop and that also includes needing to fix the OE shock due to being to short. Either a lower mount or longer shock.

Will raising torsion bars affect alignment?

Actually, you change the steering geometry any time you raise or lower the ride height of a vehicle. You will also change the weight distribution slightly. changing the ride height will change the camber, toe, and caster. Raising= more negative camber, and more negative toe.

When did GM stop using torsion bars?

The torsion bar front suspension would never return to light-duty GM two-wheel-drive trucks, which use coil springs to this day. (The torsion bars added to GM light-duty four-wheel drive trucks in 1988 were dropped beginning with the 2007 model year.)

Which type of suspension is best?

  • Best Overall. ECCPP Air Suspensions Shock Absorber. …
  • Best Value. DLZ 10 Pcs Front Suspension Kit. …
  • Best for Chevy, GMC Trucks. Detroit Axle 13pc Front End Suspension Kit. …
  • Best for Jeep Wranglers. Rough Country 2.5″ Lift Kit Suspension System. …
  • Honorable Mention.

What are three types of suspension?

There are three basic types of suspension components: linkages, springs, and shock absorbers. The linkages are the bars and brackets that support the wheels, springs and shock absorbers. Springs cushion the vehicle by dampening shock loads from bumps and holes in the road.

What are the 4 types of suspension system?

Modern springing systems are based on four basic designs. Get to know these four spring classes: leaf springs, coil springs, torsion bars, and air springs.

Can you lift a car with torsion bars?

We can crank the bars up 2 inches” when discussing lifting a 4WD fitted with front torsion bars. … Torsion bars perform the same function as a coil or leaf spring. They support the vehicle’s weight and absorb the movement caused by changes in the distance between the vehicle and the terrain.

Do torsion keys make your truck ride rough?

The rougher ride is expected since you did turn up the torsion bars. You have taken most of the bounce out of the front end as far as dampening goes. You will need a good shock up there as stated above to smooth it out. Still going to be rough but I noticed after I put my Bilsteins on that it was much better.

How are torsion bars made?

Torsion bars are simply straight bars of elastic material that can be twisted to its elastic limit. Torsion bars of typically constructed from steel or rubber. … A spiral wound torsion spring is formed from a spring wire, or more commonly a thin strip of sprung steel, coiled into a flat spiral.

How can I make my truck higher?

  1. Add aftermarket torsion keys. They can add up to 1.5 inches to your ride height while maintaining the factory settings. …
  2. Purchase a leveling kit. …
  3. Give your truck a body lift. …
  4. Install a a “premium lift system,” which combines a body lift and a leveling kit.

Does adjusting torsion bars affect camber?

Raising the front end via torsion bar will produce negative camber due to the upper control arm (uca) swinging down, and effectively pulling the top of the knuckle inward, which pulls the camber negative.

Do torsion bars affect ride height?

Weak torsion bars or worn anchors and bushings alter the vehicle’s ride height, affecting stability and causing tire wear.

Do leveling kits wear out ball joints?

KEITH DILLARD: Correct, you’ll wear out the outside of your tires, you’ll wear out everything. Poor alignments will wear out your ball joints faster, you overload your ball joint one way or the other. … The tires are not the issue; it’s getting the completed lift kit done.

Why do trucks come with a rake?

The first thing you need to know is that the pickup OEM puts the rake there for a reason. Unloaded, the rear of the pickup is higher than the front. Add a load and the truck goes level. With a lift leveled-truck, you add a load and the rear goes down, but the nose stays up — reverse rake.

Does a spacer lift increase ground clearance?

Usually, spacer lift kits only allow you to raise your truck by a few inches. They do not give your truck more ground clearance. If your goal with installing a lift kit is to improve your suspension and increase your ground clearance for a better off-road experience, spacer lift kits simply will not affect that.
