A two-phase separator can be horizontal, vertical or spherical. The liquid (oil, emulsion) leaves the vessel at the bottom through a level-control or dump valve. The gas leaves the vessel at the top, passing through a mist extractor to remove the small liquid droplets in the gas.
How does a phase separator work?
In a horizontal three-phase separator, fluid enters the vessel through an inlet, and immediately hits an inlet diverter. … Meanwhile, gas rises to the top of the separator. It flows horizontally and exits thru a mist extractor to a pressure control valve, which maintains constant vessel pressure.
What is a phase separator?
A CryoWorks Phase Separator (PS) splits the incoming two-phase flow into separate liquid and vapor streams. The vapor stream is vented to the atmosphere while the single-phase liquid is dispensed to your equipment.
What is the difference between a two-phase and three-phase separator?
Two-phase separators are used to separate well fluids into the liquid and gaseous fractions. A three-phase separator, on the other hand, separates well fluids into the water, oil, and gaseous components.How does a test separator work?
A test separator is a vessel which is used to separate and measure small amounts of oil and gas. Each well is periodically tested by diverting the flow from the production separator to a test separator which determines the well’s production rates of oil, gas, and water.
What does a separator do in oil and gas?
An oil/gas separator is a pressure vessel used for separating a well stream into gaseous and liquid components. They are installed either in an onshore processing station or on an offshore platform. … Depending on a specific application, oil/gas separators are also called deliquilizer or degasser.
How does a separator work in oil and gas?
Separators work on the principle that the three components have different densities, which allows them to stratify when moving slowly with gas on top, water on the bottom and oil in the middle. Any solids such as sand will also settle in the bottom of the separator.
What is 3 phase separator in oil and gas?

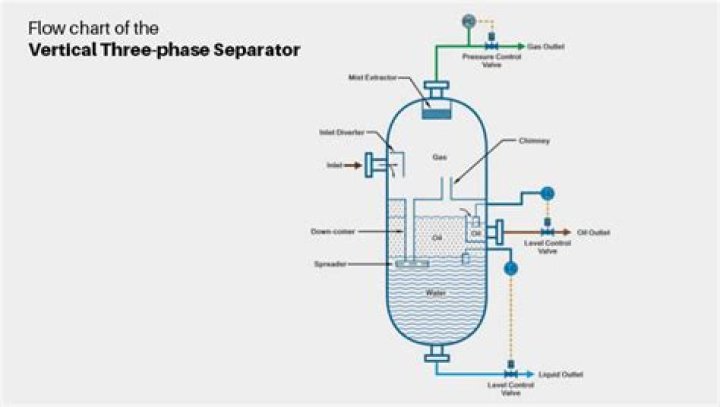

A vessel that separates the well fluids into gas and two types of liquids: oil and water. A three-phase separator can be horizontal, vertical or spherical. … A free-water knockout is commonly called a three-phase separator because it can separate gas, oil and free water.How does a gun barrel separator work?
- Inside the barrel, the emulsion enters through an emulsion inlet.
- It then goes to a downward flume, where gas is removed in the top of the flume.
- The oil-and-water mixture flows downward and discharges under the water level.
Low Pressure separators are tertiary separation devices used after primary segregation of the three phases i.e. Oil, Water and Gas from the initial inlet stream coming outside the Oil Wells and moving to the low-pressure separators before ending up in the stock tank.
Article first time published onWhat is the function of the separator?
The main function of a separator is to keep the two electrodes apart to prevent electrical short circuits while also allowing the transport of ionic charge carriers that are needed to close the circuit during the passage of current in an electrochemical cell.
How does a horizontal separator work?
In horizontal separators, gas flows horizontally while liquid droplets fall toward the liquid surface. The moisture gas flows in the baffle surface and forms a liquid film that is drained away to the liquid section of the separator. The baffles need to be longer than the distance of liquid trajectory travel.
What is a 3 stage separator?
The 3-phase separator is an instrumented vessel that separates well effluent into three phases—oil, gas, and water—for well testing. It was developed for land fracturing flowback and well test operations.
What is the difference between test separator and production separator?
test separator in the Oil and Gas Industry A test separator is a vessel which is used to separate and measure small amounts of oil and gas. Each well is periodically tested by diverting the flow from the production separator to a test separator which determines the well’s production rates of oil, gas, and water.
What is the difference between scrubber and separator?
a scrubber knocks out dropletts and/or dust/dirt particles in a gas flow. a separator splits oil/gas/water combined flow into three “separate” streams.
What is the function of baffle in the gas oil separator?
In most designs, the baffle will occupy the whole cross-sectional area of the vessel. This provides some control of the gas distribution through the separator stages, helping to minimize mal-distribution effects on the downstream demisting equipment and maximizing the efficiency of the gas/liquid separation process.
What is the purpose of bulk liquid separator?
P3TF Bulk Liquid Separators remove bulk liquid at all points within the compressed air system. Protects filters, refrigeration, and heatless regenerative desiccant dryers by providing high liquid removal efficiencies under all flow conditions.
How does pressure affect separation?
The increase in partial pressure reduces the component’s equilibrium constant, and the molecules of that component tend toward the liquid phase. As the separator pressure is increased, the liquid flow rate out of the separator increases.
Which method is used to separate oil and water?
Two immiscible liquids, oil and water, can be separated by using Separating Funnel. The mixture of oil and water forms two separate layers because they are completely insoluble in each other.
How does oilfield gun barrel work?
A gun barrel is driven entirely by gravity. Fluid flows into the gun barrel from a side inlet, and then is sent down through the tank using a spreader. The heavier water falls to the bottom where it’s sent to the water leg. The lighter oil floats to the top and flows out through the oil outlet.
How does a water leg work?
Water flows over the top of the smaller pipe, and then down into the outside leg and then to a dump valve. Raising and lowering the water leg will change the water level inside the tank, also changing the amount of oil held in it.
Why is it called a gun barrel tank?
The gun barrel, as Ball has often preached, was developed early on in the industry to dehydrate oil. It was not intended to efficiently separate oil from water. It is called a gun barrel because a bird’s eye view of the main tank and the water leg look like the end of a rifle.
How do you calculate retention time in a separator?
The retention time in a separator is determined by dividing the liquid volume inside the vessel by the liquid flow rate. The retention time usually varies between 30 seconds and 3 minutes. If a foaming crude is present, the retention time could be increased by four times its normal values.
What are the types of separators?
Separators can be either horizontal or vertical. Separators can be classified into two-phase and three-phase separators (commonly called free-water knockout). The two-phase type deals only with oil and gas, while the three-phase type handles oil, water and gas.
What is a milk separator?
A Milk Cream Separator, as the name suggests, is a device used to ‘separate’ cream from whole milk, dividing the whole milk into Skim Milk and Cream. Cream and skim milk have dissimilar densities, and therefore under the impact of gravity, they tend to get separated.
What is a vertical separator?
1. n. [Production Facilities] A vessel with its cylindrical axes perpendicular to the ground that is used to separate oil, gas and water from the production stream. The vessel can be a two-phase or three-phase separator.
How do you size a 3 phase separator?
The ratio of height to diameter is typically in the 3 to 5 range for two-phase separators. For three-phase separators, the ratio is in the 1.5 to 3 range. Additional consideration should be given for installation of the internals as well as man-way access.
