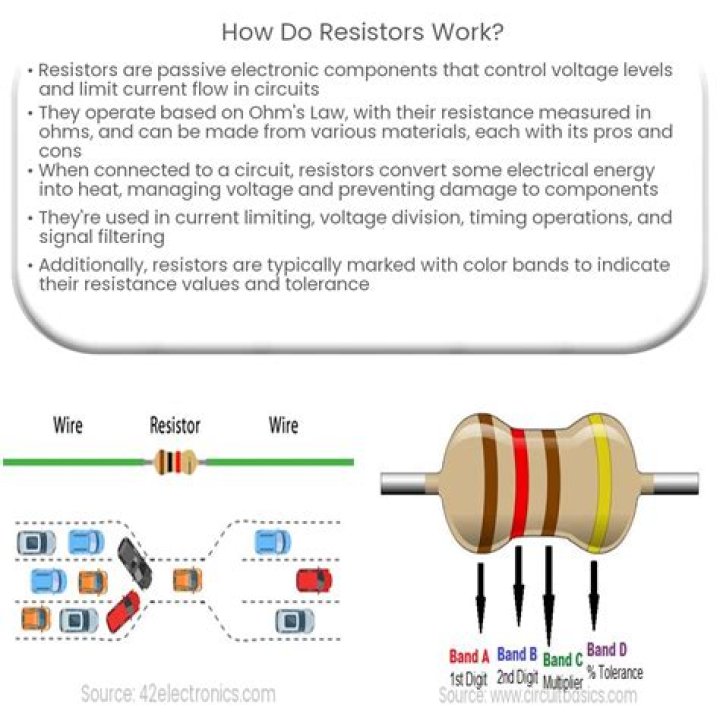

A resistor works by restricting the flow of current, it can do this in one of three ways: firstly, by using a less conductive material, secondly by making the conductive material thinner and finally by making the conductive material longer.

How does a resistor affect an electrical circuit?

Resistor reduces the flow rate of electrons . That results in potential difference across it. Even a conductor has certain resistance across its given length. Flow of electrons takes place under the effect of electric field.

What happens when current passes through a resistor?

When current is passed through a resistor some electrons are blocked and cannot move over and hence energy is released in the form of heat and hence current is decreased. The voltage which the current has will be reduced after the resistor.

Does resistor reduce voltage or current?

Resistors don’t reduce current and voltage instead it opposes flow of current and produce drop in voltage across the terminals.

How do resistors control the voltage?

Resistors ensure components receive the proper voltage by creating a voltage drop, and they can protect a component from voltage spikes. … If a component in your circuit requires less voltage than the rest of your circuit, a resistor will create a voltage drop to ensure the component does not receive too much voltage.

Why does voltage drop across a resistor?

It’s because a resistor impedes the amount of charge that flows through it depending on its resistance. This leads to a decrease in current through the circuit. Hence the factor by which voltage is reduced (I*R), and hence current, is called the voltage drop of the resistor.

Do resistors reduce amperage?

A higher resistance results in a lower amperage. The resistance of a resistor is measured in ohms. A resistor works by “resisting” the flow of current through the circuit. … Lower the circuit’s amperage by adding a variable resistance device or increasing the resistance on any you already have in the circuit.

Why does a resistor oppose the flow of current?

Resistance is the property of a material by virtue of which it opposes the flow of electrons through the material. … When the voltage is applied across the resistor the free electrons start accelerating. These moving electrons collide with each other and hence opposes the flow of electrons.

Is a light bulb a resistor?

The reason a light bulb glows is that electricity is forced through tungsten, which is a resistor. The energy is released as light and heat. A conductor is the opposite of a resistor.

Why does the current not change through a resistor?

The resistor act as a resistance to the flow of electrons. It only resists on speed of the electrons. According to law of convervation the electric energy change into heat energy. So there is no net loss.

Article first time published on

Which way does current flow through a resistor?

The current will flow from the positive terminal to the negative terminal (Conventional flow). The electrons though, which are the things floating in the wire, carrying the charge, flows from negative to positive (electron flow).

How do you increase resistance in a circuit?

length – longer wires have greater resistance. thickness – smaller diameter wires have greater resistance. temperature – heating a wire increases its resistance.

Does voltage increase with resistance?

No. Voltage is a constant along with resistance. If you change your resistance value, the only thing that will change is your amp rating. Resistance and amperage are inversely proportional.

Do resistors hold charge?

When capacitors and resistors are connected together the resistor resists the flow of current that can charge or discharge the capacitor. The larger the resistor , the slower the charge/discharge rate. The larger the capacitor , the slower the charge/discharge rate.

Do resistors change voltage?

Resistors affect both current and voltage in either a serial or parallel circuit. There is a relationship between voltage, current and resistance that is specified by Ohms law. You will have all three in any functioning circuit.

How do I know what resistor to use?

We’ll use the following formula to determine the resistor value: Resistor = (Battery Voltage – LED voltage) / desired LED current. For a typical white LED that requires 10mA, powered by 12V the values are: (12-3.4)/. 010=860 ohms. To use several LEDs in parallel, sum the current values.

Is a battery a resistor?

A battery can be thought of as a perfect voltage source with a small resistor (called internal resistance) in series. The electric energy density produced by the chemistry of the battery is called emf, but the amount of voltage available from the battery is called terminal voltage.

Is a wire a resistor?

A wire in real life, unless it is a superconductor, is a resistor because it has a non-zero value of resistance. However, it has a considerably less resistance than most of the other components of the circuit, so one often ignores that in ordinary cases, but not in all.

Is a switch a resistor?

We can think of the switch as a resistor of either 0 or infinity resistance, so it too can be labeled with a current arrow and a voltage polarity.

Why is a resistor needed in a circuit?

In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.

How does the resistor affect voltage?

The larger the resistor, the more energy used by that resistor, and the bigger the voltage drop across that resistor. Ohm’s Law can be used to verify voltage drop. In a DC circuit, voltage equals current multiplied by resistance.

Do resistors slow down current?

Resistors are electrical components in an electric circuit that slow down current in the circuit. They deliberately lose energy in the form of heat or thermal energy. … They function to ensure that other components aren’t provided with too much voltage or electric current.

Is current used up in a resistor?

For Resistors (to which this question refers) in any circuit, the Current entering a Resistor EQUALS the Current exiting the Resistor (otherwise, like Data points out, electrons would accumulate inside the Resistor). Thus, there is “no loss of current” inside a Resistor.

Can there be current without resistance?

Resistance prevents current from flowing. If there’s zero resistance, as in some kinds of short circuits, the current will flow in the wire without any losses. The basic rule is Ohm’s Law: If is non-zero, and is zero, then the current will be infinite.

Does current go from positive to negative in a resistor?

Conventional current flows from the positive terminal of the battery or power source to the negative terminal. The location of a resistor in a “loop” is usually a matter of preference because the same current will flow through all elements in series.

How is switch different from a resistor?

In short, a switch creates an open circuit and a resistor reduces the current in a closed circuit.

Does current flow from negative to positive in a resistor?

Electric current is the flow of electrons in a conductor. … This movement is called ELECTRON FLOW and is also called an electric current. So current flows from the negative terminal to the positive terminal in an electrical circuit.

How does a resistor change resistance?

The resistance of all materials changes as their temperature changes. If the temperature is lowered, resistance (typically) declines. In fact, if cooled sufficiently, the material becomes a “superconductor” with no significant resistance. Increasing the temperature (typically) increases resistance.

What 4 factors affect the resistance of a wire?

  • The type of material of which the resistor is made.
  • The length of the resistor.
  • The thickness of the resistor.
  • The temperature of the conductor.

Do resistors increase amps?

Current increases! In a series circuit, adding more resistors increases total resistance and thus lowers current. But the opposite is true in a parallel circuit because adding more resistors in parallel creates more choices and lowers total resistance. … With less resistance, you’re faced with a higher total current.

What is the relationship between I and R?

The relationship between voltage, current, and resistance is described by Ohm’s law. This equation, i = v/r, tells us that the current, i, flowing through a circuit is directly proportional to the voltage, v, and inversely proportional to the resistance, r.
