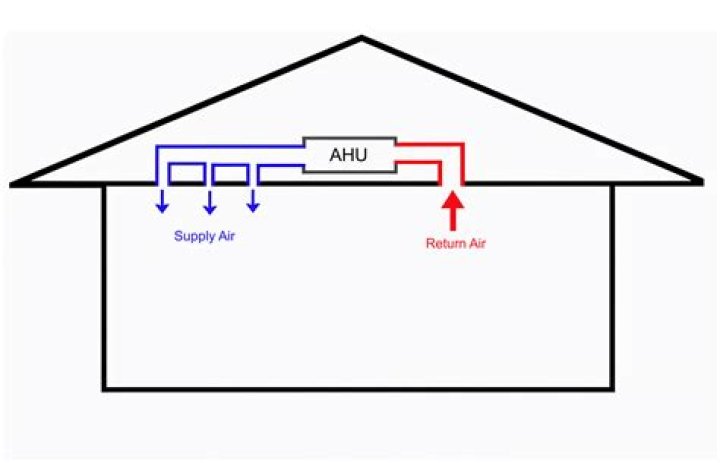

Cold air returns are what allow your furnace to “inhale” your home’s air. … Once inside your cold air returns, that air travels through your ductwork back to your furnace where it is filtered, heated and sent back to warm your home.

Do you need a cold air return in every room?

While it is a myth that air return grilles are required in each and every room in the house, it is definitely necessary to have more than one of these grilles installed at strategic places in the house. … Likewise, you can also install these in rooms that have a high footfall or usage in the house.

Should cold air returns be open or closed in the winter?

Because hot air rises and cold air falls, you need to adjust your return vents with the seasons. In the summer, your lower vents should be closed and your upper vents should be open. In the winter, your upper vents should be closed and your lower vents should be open.

What will blocking a cold air return do?

Blocking air return vents causes your system to work harder, as there is less air flow to move the air back to the furnace. This continued strain on the HVAC system can lead to a decrease in performance and more HVAC repairs down the road.

Where do cold air returns go?

Where are cold air returns located? Cold air returns are located on interior walls in a home, typically close to the floor or low on the wall. You want to make sure that cold air return vents are not blocked or covered by furniture so that your home can get proper air circulation.

How many cold air returns should a house have?

Having several return vents (ideally one in every room, but even two or three is better than just one) creates consistent air pressure. If you have one return vent, your home is fine. Keep the doors to each room open so air can properly circulate.

What happens if there is not enough return air?

If there is not enough return air available, your HVAC system will not heat or cool properly. … If not enough air is brought back, your HVAC system will not be able to keep up with temperature demands. In some cases, two returns may be necessary to provide enough return air.

Is it OK to cover cold air return?

Long story short: It’s never a good idea to cover up cold air returns. Don’t succumb to the temptation, and always check that air is circulating freely when you move furniture. If your HVAC system isn’t performing the way you would like, it might have other efficiency issues.

Can you place furniture in front of a cold air return?

Most people would tell you, no, you cannot put furniture in front of an air return vent. … The bottom line is as long as the furniture piece is open on all sides and the bottom allowing the return air vent to draw in air to the heating and cooling system unobstructed, it should be fine.

Can a cold air return be in the ceiling?

Most homes across the U.S. have forced air systems and in newer homes there will be cold air return vents placed at both the ceiling and the floor of many rooms. Having two air return vents allows you to seasonally control which air is returning to the HVAC system.

Article first time published on

What size should a cold air return be?

A typical return vent is 16 inches by 20 inches, according to Hunker. It includes the cold return air duct grille.

How do I know if my return air is working?

Try this simple test when your HVAC system is running: get a piece of tissue paper and dangle it about six inches from one of the return vents. You should be able to see it being gently pulled towards the vent. Next, place it up against return vent and see if the air suction holds it in place.

Should return vents face up or down?

There is no proper direction for the vanes to point. If they’re high sidewall, normally they would be pointed upward which makes them vision proof and just the opposite for low sidewall.

Do you need return air in basement?

I recommend that all basements should have at least 2 supply registers and 1 return register in the basement/equipment area just to keep that area slightly warm or cool and the air fresh. If you are going to finish that area to be used as living space, then more supply and returns will be needed.

How do I even out the temperature in my house?

  1. Seal Windows and Doors. The weatherstripping on windows and doors deteriorates over time, letting cold or hot air in. …
  2. Add Window Drapes, Shutters Or Blinds. Sunny rooms tend to feel warmer than rooms that are dark. …
  3. Add A Programmable Thermostat Strategically. …
  4. Install An HVAC Zoning System. …
  5. Add a Ceiling Fan.

How important is the return air vent?

Your AC’s return air vent is a critical component of an HVAC system and serves several purposes. Not only do return air vents maintain your home’s air pressure and filter out debris, they can also serve to save you on energy costs and expenses, which is important here in hot and humid Gainesville, Fla.

How big of a return air do I need?

Generally, if you are using a Duct Sizing Chart or calculator (such as the Trane Ductulator), size the re- turn ducts for 0.05 inches/100 ft (0.40 Pa/m) based on the expected airflow through that return air duct. The total sum of air from all the returns should be at least 250 CFM/nominal ton (33 l/s per-kW).

Can you cover an air return vent with furniture?

Keep couches, chairs and other large pieces of furniture at least 10 inches away from your cold air return vents. Avoid covering your cold air return vents with curtains, drapes or rugs. … Clogged air filters can also cause cold air return blockages.

How can I hide my cold air return?

  1. Conceal it. Out of sight, out of mind. …
  2. Paint it. Hide an air vent in plain sight with a fresh coat of the same paint color you used on the walls. …
  3. Switch out the cover. Say goodbye to those sad slats and replace them with a piece of framed, patterned mesh. …
  4. Go shopping.

How far should furniture be from return air vent?

Vent Clearance All your air vents need at least six inches of clearance from all furniture, drapes or other household items to ensure proper system breathing.

Where do you put air return in basement?

So turn the cold air return 90 degrees through the wall so that it actually draws the air from the room next to the furnace room, or from the hallway of the basement. By putting the cold air return on the floor, it will vacuum up the cold air on the floor, and draw down the warm air from the ceiling.

Should return vents be open or closed in summer?

Open High Returns in the Summer Hot air rises and cool air sinks. Therefore, opening the right return vents in the summer and winter significantly improves the distribution of air by your forced-air system. … In the summer, open your high returns and close the low ones.

How much return air do I need per ton?

You can never have to much return air, as a HVAC contractor you want no less than 144 square inches per ton. Regarding the 3.5 TON VS 4 TON The average square foot per Ton is 400 so say the house is 1600 SQFT a 4 TON unit should work great.

What size return duct do I need for a 3 ton?

Electric heat pumps shall be tested in accordance with UL 559 or UL 1995. Example: 3.5 ton heat pump. The duct for this system must be sized by using 6 square inches of clear duct area for each 1000 BTU of cooling. Each ton of cooling contains 12,000 BTU.

Can there be too much return air?

Can an air return be too big? No, an air return cannot be too big, except in extreme cases where a closed room is temporarily under negative air pressure. Return vents maintain air pressure, filter out debris, and are critical to the efficient operation of any HVAC system.

Why is my return vent blowing out cold air?

Explanation: Leaks in your ductwork means that cold, unconditioned air from inside your attic gets sucked into your ductwork. That cold air mixes with the warm air from your furnace, causing the air coming from your vents to feel considerably cooler than it should.

Which return vents to close in the winter?

Close top return vents. If you have a top/bottom return vent setup, close the top vents in the winter months. Closing the top vents will make your system draw in air from the bottom vents that are at the low point in the room where cold air settles.

What is the return vent?

Return vents: What is a return vent? These vents suck the air from each room and send it back to the air conditioning or heating system. Return vents tend to be bigger than supply vents, and you won’t feel any air coming from them. When an HVAC system delivers air to a room, it increases that room’s air pressure.

Why do air vents face the windows?

Cold air sinks to the floor and makes for uncomfortable, cool spots in the room. Having the heating vents under the windows counteracts the movement of the cold air to the floor.
