By code, the bottom of a footing must be at least 12 inches deep and below the local frostline

How deep do decking support posts need to be?

In the corners of the marked area, dig out 700mm deep holes for each of the joist support posts. Ideally the holes need to be about 300mm in diameter at the top and 400mm at the bottom.

Should I concrete my deck posts?

A deck post should always be placed on top of footing, not inside concrete because it can break. … When concrete is poured around a deck post in this way, the post will rot due to moisture buildup by the soil.

How deep and wide do deck footings need to be?

FOOTINGS: – Poured concrete footings should be a minimum of 8” wider than the posts (4×4 post – 12” min. width, 6×6 post – 14” min. width), a two level deck or deck with roof – 24”x24”. – The bottom of the footings must be a minimum of 36” below finish grade level.

Can you use 4x4 posts for a deck?

In the past, many decks were built with 4×4 support posts (also called structural posts). But these can bow seriously, even if a deck is only 3 feet off the ground. For that reason, we strongly recommend that you use 6x6s instead, even if your building department does not demand them.

How many footings do I need for a 12x16 deck?

A standard deck will need four footings parallel to the house, but they will need to be temporarily braced by 6 inch-by-6 inch posts. Using doubled boards, you will then need to build beams on the top row of the posts to frame the edges of the deck. These must be topped with adjustable post caps.

How thick should deck footings be?

Assuming a minimum soil bearing capacity of 1,500 psf, 8-inch-diameter concrete piers bearing on square footings measuring 2 feet on a side and 9 to 11 inches thick are adequate for most single-story decks where beams are spaced 14 feet apart or less and joist spans are 14 feet or less (see table below).

How deep should 4x4 deck posts be?

Dig post hole so diameter of the hole is 3 times the width of the post (i.e., the hole for a 4” wood post should be about 12 inches wide). The depth of the hole should be 1/3-1/2 the post height above ground (i.e., a 6-foot tall fence would require a hole depth of at least 2 feet).

Does a deck footing need rebar?

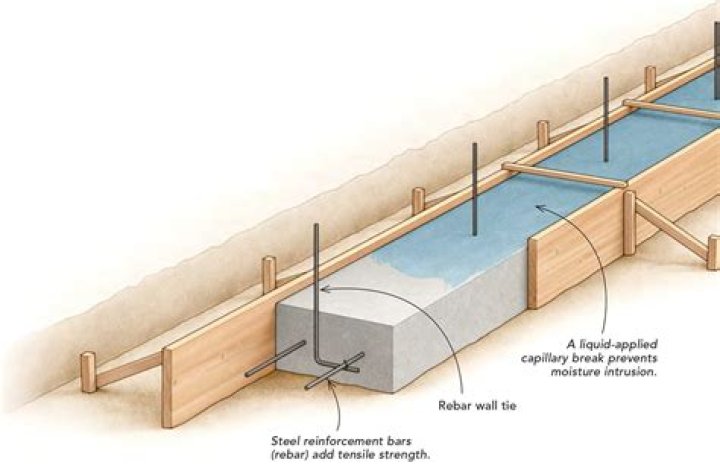

Using Rebar for Concrete Deck Footings Plain concrete deck foundations without rebar are acceptable under the minimum standards of construction established in the International Residential Code. … Footings with large bearing areas or unstable soil can benefit from adding rebar to prevent cracking.

Should you use 4x4 or 6x6 deck posts?

While there may be a handful of circumstances that only require the minimum 4×4 deck post, you will more than likely want to choose a 6×6 post for the deck. It provides more stability for larger decks, the ability to hold a heavier load, and more room for notching.

Article first time published on

Do I need concrete footings for a deck?

Large decks that are attached to the house should always have footings because they act to spread the heavy load of the deck from the surface of a support post over a large surface of the soil so the ground can adequately support it. … The footings ensure that the deck will not fall, tip or rot away after a few years.

Should deck joists be 2x6 or 2x8?

For upper-level decks, 2×10 is recommended as the minimum size to use for strong guard post connections. 2×6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. … Most decks use 16″ on center spacing for joists.

What is the code for deck posts?

When it comes to decks, not all dimensions are safe or permitted. The minimum post size is 6 inches by 6 inches, though the required height of the post varies, depending on the deck itself. You will have specific requirements for railings, and these will depend on how far your deck sits from the ground.

How much load can a 4x4 post support?

The load capacity of a 3-foot #2 grade 4×4 is 17,426 pounds, and a similar 6×6 is 20,834 pounds or 16% better. However, an 8-foot 4×4 supports 6468-pounds and 2339-pounds at 14-feet, while a 6×6 is 18032 and 10550-pounds respectively – or 64% and 78% more load capacity.

How many footings do I need for my deck?

How Many Footing Do You Need For Your Deck? The answer depends on the size and shape of your deck, the size of your footings, and the size of your beams. The larger the beam and footing size, the fewer footings that are required. For most situations, you will want to place footings and posts less than 8′ apart.

How many footings do I need for a 12x12 floating deck?

For an attached 12 x 12′ deck, you’ll need at least 3 footings, plus at least 2 more if you’re planning on building stairs with it. If your deck will be a different size, it’s easy to figure out how many you’ll need.

How many posts do I need for a 12 foot deck?

The larger 12-foot side will have a post spacing of 6 feet at a minimum code requirement. That makes a total of eight posts that need to be installed on this average size deck.

Can I use deck pier blocks instead of footings?

Pier blocks can be used instead of footings for a ground-level deck not requiring permits. Piers blocks can also be used if the frost level depth is less then the height of the pier block.

How deep should concrete footings be?

Depth of Footings Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected.

How long should a footing cure before laying block?

Assuming you are using 3,000-psi concrete for the footings, you should be safe installing the anchors after 28 days in most circumstances. But there are a few things that can greatly alter the “normal” rate of strength gain: concrete temperature and the use of fly ash or admixtures.

How far apart should posts be for a deck?

Layout and Footing Locations In general, posts should be spaced no more than 8 feet apart. Some builders position them every 4 feet for a completely rigid frame. The maximum distance between footings is determined by the size of your joist material.

How deep should you bury a 12 foot post?

The general rule of thumb when setting a post is that the depth of the post’s hole needs to be one-third to one-half of the actual above-ground height of the post.

How big of a hole do you need for a 4x4 post?

The diameter of your post hole should be three times the diameter of your post. So, if you’re planning on using a four-inch round or 4×4-inch square post, your post hole will need to be 12 inches in diameter. For a six-foot-high fence post, we would need a hole that’s 36 inches deep and 12 inches in diameter.

Should you notch deck posts?

Say “No” to notching pressure-treated deck posts. We want you to build an outdoor railing system that you, your family and guests can enjoy without worrying about safety issues. In order to do so, you need to know this building shortcut is not advisable, and we recommend avoiding it at all costs.

How much weight can a pressure treated 4x4 hold vertically?

4×4 can hold up to 4,000 pounds when laying horizontally with the right support. Vertically, a 4×4 should support 4300 pounds but can hold significantly more. The amount of weight that a 4×4 can hold depends on several factors like wood grade, species, and load type.

Should you notch a 4x4 post?

While you might expect the notch to be the weak point in the connection, in fact none of the test posts failed at the notch. Even so, notching should be avoided, because it does substantially reduce the strength of the post.

How many footings do I need for a floating deck?

For an 8×10′ freestanding deck, you’ll need six footings. Unless you have access to a power auger, that’s a lot of digging. After digging each hole, you will need to install tube forms into each.

How much weight can a 4x4 wooden post hold?

An 8-foot 4×4 can typically carry 1,000lbs horizontally along its length without excessive sag, or 500lbs in a center load. Supported at 16” centers and the load jumps to 4,000lbs. When used as a post, the same 4×4 can support up to 6,000 PSI and even more if properly braced.

Are two 2x4 stronger than one 4x4?

When used vertically, 4x4s are stronger than two 2x4s. However, if you need a horizontal surface, two 2x4s will be stronger than one 4×4. A 4×4 should not be used horizontally for anything structural. Always be sure that you’re using the proper size and strength of lumber.

How much weight can an 8x8 post support?

That being said, a post can hold a tremendous amount of load! If a particular species of wood can support 1,000 psi, then an 8×8 post can hold 64,000 pounds! The limiting factor (reason to up-size) will likely be aesthetics and/or the number or type of joints needed.
