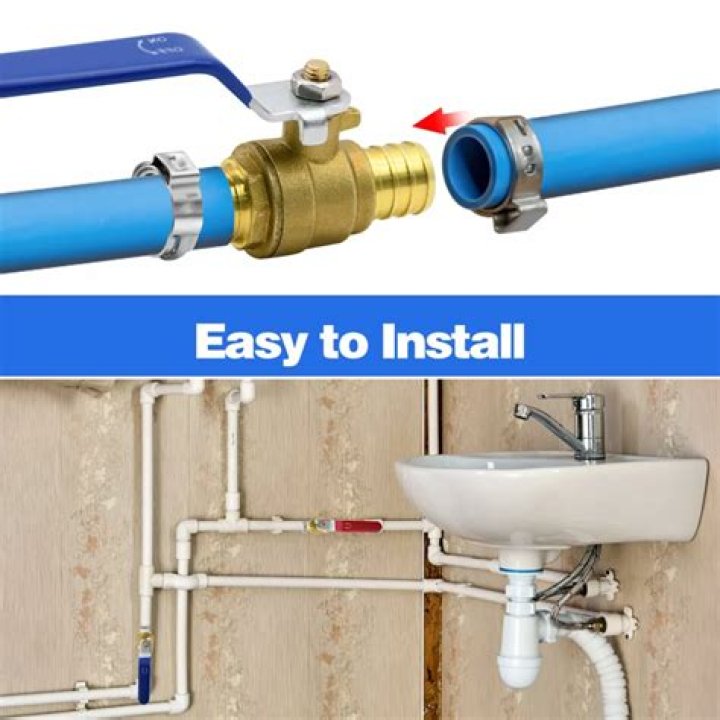

The SharkBite PEX barb washing machine box provides quick and safe water supply shutoff for washing machines and connects to PEX pipe with either a stainless steel clamp or copper crimp ring system.
Is 1 2 PEX big enough for washing machine?
Most homeowners aren’t willing to wait 15 minutes to fill their bathtubs, so running a minimum 1/2-inch line to the tub is a good idea. Other fixtures that benefit from 1/2-inch lines are washing machines and dishwashers. Sinks and showers are water guzzlers, and you can conserve by running 3/8-inch lines to them.
What is a standpipe for washing machine?
A laundry standpipe connects a washing machine’s drain hose to a home’s waste stack. While it might be tempting to simply connect your washer to any other convenient drain line, doing so increases the risk of water overflow and sewer fumes.
Does PEX contaminate water?
PEX expands, making it more resistant to freeze-cracking than either copper or steel. PEX does not corrode, which can happen with both copper and steel pipes, leading to leaks and contamination of the water supply. Water flows silently through PEX, eliminating the “water hammer” noise associated with metal piping.Why is PEX plumbing bad?
Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.
Can I use PEX for dishwasher?
I have installed 3/8″od pex on hundreds of dishwashers without problems. It must be done right or it will blow out. No dope on the plastic ferrel. Crank it down ALL the way.
Where is PEX not allowed?
PEX can’t be installed in high heat areas. You can’t install PEX in high heat areas like near recessed lighting. This also means you can’t connect PEX directly to a hot water heater, but you can use a connecting material to do this.
How high should a washing machine outlet box be?
Once you’ve selected the right washing machine outlet box for your situation, it should be installed at a height where the flood level rim (or the top of the drainage outlet) is 32” to 34” above the finished floor.Do washing machines need a water hammer arrestor?
The general rule is that water hammer arrestors are required on all quick closing valves. … But since as the engineer you have no control over the type of hoses used as the washer supply, you would be foolish not to install water hammer arrestors.
How do you hook up a refrigerator water line to a washing machine?- Turn off the water supply to the washing machine. …
- Unscrew the washing machine’s cold-water hose from the supply valve.
- Wrap two layers of Teflon tape clockwise around the threads of the supply valve.
Is PEX safe for drinking water 2021?
With a plumbing-pipe offering in sizes up to 3 inches, PEX is challenging traditional copper and CPVC materials for domestic water applications. … This provides confirmation the pipe does not leach harmful substances into drinking water and is safe for potable systems in healthcare facilities.
Is PEX bad for your health?
The inner pipe for drinking water is made of a plastic called cross-linked polyethylene (PEX). … There are no health risks associated with drinking water from PEX pipes. A few types of PEX-pipe may cause prolonged undesirable taste and odour if the water remains in pipes over time.
Can mice chew through PEX pipe?
Mice and rats will chew through anything they can, including plastic, so PEX tubing is at just as much risk as the plastic-coated wiring in a car or an HVAC unit. While all rodent damage can be expensive, if rodents chew through a home’s PEX water pipes, the result can be disastrous.
Do washers need standpipe?
Most washing machines are plumbed directly into a fitting on the u-bend under the sink these days instead of being pushed into a standpipe (as above). Unless fitted properly though, some of the dirty smelly water poured down the sink can run down the drain hose into the washing machine.
Does a washing machine standpipe need a trap?
When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer. … The lack of a P-trap exposes the area to sewer fumes and the lack of venting will cause the drain to run sluggishly and overflow. Washers, like all fixtures, need a trap.
Is a standpipe required for washing machine?
Most washing machines require a standpipe with a height of at least 36 inches. Check your manual to find out the requirements for your particular unit, and ensure your standpipe meets this minimum requirement. Placing your standpipe too low or too high can cause backflow and overflow.
Can a washing machine and dishwasher share a waste pipe?
Yes they can provided the waste pipe is big enough – no smaller than 1.5 inch diameter pipe. You also need to ensure and that the pipe is free flowing kept clear of restrictions or obstructions.
Can you plumb a dishwasher where a washing machine was?
Installing a dishwasher next to an existing washing machine is perhaps one of the easiest ways to install a dishwasher. … The most difficult part of this type of installation will be installing the copper tee and the male compression fitting on the washing machine’s hot water supply line.
How long does PEX pipe last?
Additionally, long-term testing programs on PEX have shown that it has a potential lifespan of more than 100 years. So, while copper systems may have to be re-piped every few years or decades due to corrosion and pinhole leaks, a PEX system can last 10 times longer — or more.
Can you use blue PEX for hot water?
PEX without an oxygen barrier is designed primarily for use in potable water plumbing systems. … The color of PEX does not change any of the tubing’s ratings. There would be no problem, for example, using blue PEX for hot water lines or red PEX for cold water lines.
Is PEX better than PVC?
When a connection to copper or other metal pipes is required, PEX works better than PVC because crosslinked polyethylene won’t corrode. … When you compare the material costs of PEX vs PVC, PEX comes out more expensive. (However, balance this factor against the lower labor cost to install PEX.)
What is better PEX or copper?
We generally belive that Plumbing PEX Tubing is much better than Copper for most, if not all, plumbing systems. … PEX Tubing is much more resistant to freeze-breakage than copper or rigid plastic pipe. PEX Tubing is cheaper because it takes much less labor to install. PEX Tubing is quickly becoming the industry standard.
Can PEX go straight to water heater?
PEX can’t be directly connected to a water heater. … from your water heater and connect the PEX to the pipe.
Will PEX pipe freeze and burst?
Due to its flexibility, PEX has a small margin of expansion under the damaging pressure caused by ice formation. If the weather gets cold enough, PEX pipes can and will freeze like any plumbing. However, PEX may be less likely to rupture as a result of freezing.
Are water hammer arrestors needed with PEX?
From an engineering standpoint, water hammer occurs when there is a conversion of energy. … If a water distribution system is designed for a maximum flow rate of 8 ft./sec., you will never need a water hammer arrestor for CPVC or PEX tubing. So, if you only install CPVC or PEX tubing, you don’t have to read any further.
How do I stop my washing machine pipes from banging?
Adjusting Water Pressure If one or both of the pipes supplying the washing machine has a shutoff valve, you may be able to curtail the banging by partially closing it. The reduced water flow will cause the washer to fill more slowly, however, and increase the time for a wash cycle.
Where do you put a water hammer arrestor on a washing machine?
Most water hammer arresters are installed on the washing machine valves, but the instructions may recommend connecting them directly to the back of the washing machine in order to protect the washer hoses. The issue with installing them here is that it can make the washing machine sit farther away from the wall.
Does a washer need a special outlet?
Washer – Washing machines are large appliances that do not require customized electrical hookups, they simply need a 120 volt outlet that can take 3 prongs.
Does a washing machine need a dedicated outlet?
In the Laundry Room Your laundry room should have a dedicated circuit of at least 20 amps. If you have a gas dryer, both your washing machine and gas dryer may be plugged into the same outlet. If you have an electric dryer, it will need its own dedicated 20-amp, 220-volt circuit.
What is code for washing machine drain?
According to the Universal Plumbing Code, the standard for washing machine drain size is 2 inches. The P-trap should be between 6 and 18 inches high from the floor, while the pipe should be between 18 and 30 inches high from the floor.
Can a fridge make ice without a water line?
A water line allows you to make ice in your refrigerator. Refrigerators that feature built-in water dispensers or automatic ice makers need to be connected to a water source. … Fridges without ice makers or water dispensers don’t need any type of water source to function properly.
