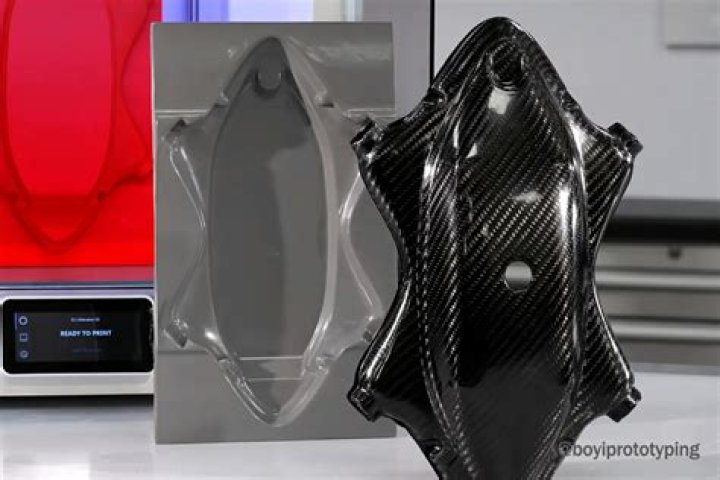

In wet lay-up, the fiber is cut and laid into the mold then resin is applied via a brush, roller, or spray gun. This method requires the most skills to create high-quality parts, but it is also the least expensive workflow with the lowest requirements to get started with making DIY carbon fiber parts.

How much does it cost to mold carbon fiber?

Once woven, a resin is added to harden the carbon fiber weave. As such, the process of creating carbon fiber composite is complex and time-consuming. When it comes to car kits and parts, the cost of a single carbon fiber mold can be upwards to $10,000 and body kits exceeding $40,000.

Why is carbon fiber so expensive?

It takes a lot of energy to reinforce each fiber with carbon atoms. Energy, also required to bundle the carbon together into fibers and threads. Energy costs are probably the most expensive factor in carbon fiber manufacturing.

Can carbon fiber be 3D printed?

In the case of carbon fiber, the fibers boost the strength, stiffness, and dimensional stability of the part to make it higher-performing than its base plastic. Chopped carbon fiber 3D printing materials can be used like normal 3D printing plastics, boosting some material properties.

Is carbon Fibre lighter than Fibreglass?

It is not until after fabrication that you begin to see what separates the two materials: namely strength, stiffness and to a small extent weight (carbon fiber is slightly lighter than glass fiber).

Is PLA stronger than carbon fiber?

The short answer is that this filament isn’t “stronger,” rather, it is more rigid. Increased rigidity from the carbon fiber means increased structural support but decreased flexibility, making our Carbon Fiber PLA an ideal material for frames, supports, shells, propellers, tools…

Is real carbon fiber expensive?

Carbon fiber has a reputation for being expensive when compared to other materials like steel and aluminum. … There’s also the manufacturing processes, the need for skilled labor, and other materials that go into producing carbon-fiber products.

How strong are carbon fiber 3D prints?

Carbon Fiber is Markforged’s unique, ultra-high-strength Continuous Fiber — when laid into a Composite Base material like Onyx, it can yield parts as strong as 6061-T6 Aluminum. It’s extremely stiff and strong, and can be automatically laid down in a wide variety of geometries by Markforged 3D printers.

Is carbon fiber cheaper than steel?

Because making the fibers is so time-consuming and energy-intensive, as is the molding process, CFRP is much more expensive than steel. The Drive reports steel is roughly 10 times cheaper.

How many layers of carbon fiber should I use?

Greg Shampine/Ultra-Carbon: It really depends on the body panel, but usually two to four layers are needed, plus sometimes a core.

Article first time published on

Can carbon fiber flexible?

Carbon fiber is naturally light and extremely flexible in its natural state. Epoxy resin is the industry’s standard for high-performance carbon fiber products. It’s extremely flexible, allowing the resulting products to absorb a lot of impact without breaking.

Can you injection mold carbon fiber?

Carbon fiber reinforced thermoplastics. Mainly used in injection molding and suitable for complex-shaped parts and mass production. Used in industrial applications such as automotives and electrical appliances as well sporting goods.

Is carbon Fibre stronger than Fibreglass?

Though either material is substantially stronger than steel, industrial carbon fiber is more than 20 percent stronger than the best fiberglass. Carbon fiber boasts a strength to weight ratio roughly twice that of fiberglass. For more on carbon fiber strength, check out our previous blog.

Can you gold plate carbon fiber?

Metal replacement: the strength-to-weight ratio of carbon fiber is outstanding and can further maximized when plated with a metal. Carbon fiber is also a great material for high-heat applications.

Which is better graphite or carbon fiber?

Uses. The main difference between graphite and carbon fiber is the fact that graphite breaks apart easily while carbon fiber is strong. This difference explains why graphite works well in a pencil and carbon fiber works well in sports equipment, airplanes and the space shuttle.

Which is better carbon fiber or titanium?

Titanium bikes are much more durable than carbon fiber. The reason is that titanium is a much less brittle material. During an impact, a titanium frame is less likely to crack, bend, or dent. Titanium frames are also resistant to corrosion, unlike steel.

What is a cheaper alternative to carbon fiber?

PLA composite may be an eco-friendlier alternative to carbon fiber. While bio-based polylactic acid (PLA) thermoplastic is relatively eco-friendly and easily recyclable, composites such as carbon fiber are much stronger.

Is all carbon fiber the same?

Almost all carbon fiber is made from a common industrial fiber called polyacrylonitrile fiber, also known as PAN. … 42 MSI fiber is the result and it is informally known as Intermediate Modulus fiber or IM fiber. The benefit is that you can use less material to get the same stiffness and therefore a lighter structure.

How much does a square foot of carbon fiber cost?

Name# of Layers 5.7oz FabricPrice / Sq Ft.01″ Carbon Fiber Sheets Click Here to Browse1From $ 16.56 / sqft.02″ Carbon Fiber Sheets Click Here to Browse2From $ 17.67 / sqft.04″ Carbon Fiber Sheets Click Here to Browse4From $ 22.88 / sqft.05″ Carbon Fiber Sheets Click Here to Browse5From $ 30.31 / sqft

What is a disadvantage of using carbon Fibre for bikes?

Generally speaking, carbon fiber resists surface impact quite well, but its puncture resistance is very poor. That is to say, it doesn’t matter if you fall horizontally and vertically. I’m afraid that you may encounter a sharp pebble or two in the process of falling horizontally and vertically. The price is expensive.

Do you need to vacuum seal carbon fiber?

Once a layup is complete, you apply a peel ply layer to help remove the finished part later on, followed by a breather layer that allows air to escape while simultaneously absorbing any excess resin. The entire layup is then covered with the vacuum bag and sealed around the edges. Next, you connect hose and pump.

Can you laminate carbon fiber?

Laminating carbon fiber is no different than fiberglass or other reinforcements. Practice learning how to laminate carbon fiber with fiberglass, which is a fraction of the cost. Pick your resin carefully. … A clear resin will be your best choice.

Can you wrap something in carbon fiber?

When you can’t afford to go through the process of making molds off of an existing part, wrapping the part in carbon fiber is always an option. … Needless to say, the part is going to look great and 99.9% of people will have no clue that it is only wrapped in carbon fiber.

What is carbon Fibre overlay?

Carbon Fiber Overlays & Wraps An overlay or wrap is accomplished by adding a layer of carbon fiber over plastic, composite, or metal components. The adhesion to these other materials is not desirable nor permanent.

How do you join two carbon fiber parts?

  1. Lightly sand the inside of the tube.
  2. Clean the surfaces that will be bonded.
  3. Mix the epoxy.
  4. Apply the epoxy.
  5. Insert the connector.
  6. Wipe away any excess adhesive.

Is carbon fiber nylon toxic?

Nylon is suspected to give off a VOC called Caprolactam which is toxic to inhalation and able to cause grave damage to the respiratory system. Therefore, constantly working in an environment where the filament is nylon-based is sure to be alarming and precaution is advised.

Which is stronger PLA or PETG?

For example, PETG is stronger than PLA (though weaker than ABS) and more flexible than ABS (though less flexible than PLA). This, understandably, makes it a popular material as the short-comings of both materials are lessened within PETG.

What is the strongest PLA?

By the Numbers Airwolf 3D, after many filament tests, concluded that PC is the king of desktop 3D printer filaments. They were able to hang up to 685 pounds on a hook printed in PC and found that the material had a tensile strength of 9,800 PSI. In contrast, the same part printed in PLA could only handle 285 pounds.

Does carbon fiber break easily?

When made well, carbon fiber can be tougher than steel and quite safe. But when made incorrectly, carbon-fiber components can easily break. … Unlike with other materials, if you overtighten carbon-fiber parts, they’re likely to shatter down the road.

What is a problem associated with carbon fiber?

The problem is made worse by the fact that unlike plastics, aluminum andmany other materials, carbon fiber can’t be easily recycled. It won’t degrade, and it is extremely difficult to recycle. … The strength of the material is actually inthe fact that it consistes of long fibers.

What is the strongest carbon fiber?

Carbon fiber is a super-strong yet lightweight material. It is five times stronger than steel, twice as stiff and around 1.5 times lighter.
