Notches in floor joists may occur in the top or bottom of the member but may not be located in the middle third of the span. A notch may not exceed one-sixth of the depth of the joist except at the very end where it may be one-fourth of the joist depth.

How much can a floor joist be notched?

You can cut a notch at the end of the joist to 1/4 of the joist’s depth (maximum). Along the outer third of a joist, you can cut a notch a maximum of 1/6 the joist depth and 1/3 the joist length without compromising its strength.

Can a floor joist be spliced?

In my opinion, joist splicing, if possible at all, must be engineered, and just slapping a few nails through two pieces ain’t engineered. Those are not sistered they are spliced and should be replaced with full spanning joists or a suitable support, including columns and girders, built underneath.

Can you notch bottom of joist?

For the engineered I-Joists shown in Fig 1 some of the limitations are: Do not notch or drill holes through the top or bottom flange. … Typically, most manufacturers have little perforated knockout holes that can be punched out without the use of a drill.

How do you fix improperly notched floor joists?

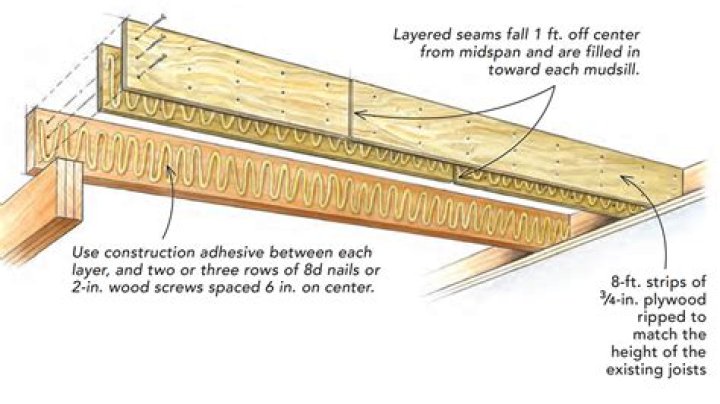

You can reinforce a notched joist that has not cracked by cutting two pieces of 3/4-inch plywood as wide as the joist depth and as long as the plywood sheet. Screwing a piece to the joist on each side offers moderate reinforcement. Stronger reinforcement is in order if the joist is sagging or has cracked.

Can you notch floor joists for plumbing?

Tradespeople often need to cut notches or holes in floor and ceiling joists to run pipes, ductwork, or wires. Sometimes joists are notched at the end where they bear on a wall or sill. If the cut-outs are too large or in the wrong location, the joist can be weakened and unable to support the load it was designed for.

At what location is notching not permitted in structural members?

Notches in solid lumber joists, rafters and beams shall not exceed one-sixth of the depth of the member, shall not be longer than one-third of the depth of the member and shall not be located in the middle one-third of the span. Notches at the ends of the member shall not exceed one-fourth the depth of the member.

Which regulation covers the notching and drilling of joists?

Electrical installers carrying out work in dwellings and other small buildings of traditional construction often need to notch or drill holes in joists for the passage of cables and/or their enclosures. However, as required by Regulation 522.8.

How much can you notch a 2x10 floor joist?

The maximum allowable diameter of a hole in any solid-lumber joist is one-third of the joist’s depth. Notches can’t be deeper than one-sixth of the joist depth. In the case of your 2×10 joists, the maximum diameter is 35⁄64 in. (91⁄4 in.

Can you join joists together?

The side-by-side joists should be attached together by a nailing pattern similar to combining boards to form a beam. If you are adding onto a deck, you must make sure the footings are large enough to support the added loads.

Article first time published on

How do you sister floor joists together?

“Sistering” the joists means to fasten the joists together through the face to double the thickness of the framing. My approach was to install a new joist next to it, resting one end 3 inches onto the mid-span beam and installing a joist hanger on the other side. I would sister the two together with structural screws.

Can rafters be spliced?

If a tree has hit your roof, or some other damage has occurred, splicing may be the easiest way to fix the rafters. Some rafters can be repaired rather than replaced. Position the two pieces of the rafter so that their ends are butted tightly together and their bottom edges create a straight line.

Does notching a beam weaken it?

Improperly sized or placed holes and notches weaken the joist, make it bouncy and saggy, and provide an easy place for it to crack and fail.

Does Sistering floor joists work?

Sistering joists means beefing them up with additional material. Doing so strengthens weak joists and can help straighten sagging joists. Framing lumber is the typical choice for sistering material, but engineered lumber products actually add more stiffness than dimensional lumber.

How many holes can you drill in a floor joist?

Holes up to 4 in. can be drilled in the middle of the I-joist, away from the ends and load-bearing wall. Keep the distance between adjacent holes at least twice the diameter of the largest hole. For holes larger than 4 in., consult the lumber supplier.

Does drilling into studs weaken them?

Drilling a hole in a stud for wiring will weaken the stud – by how much is a function of the size of the hole drilled and where the hole is drilled in the stud. From an electrical perspective drill the hole in the center of the stud and make the hole just big enough that you can easily pull the wire through it.

Can you run a drain pipe through a floor joist?

Running drainpipe through joists calls for meticulous work. The holes must follow a straight line across the floor and must ascend or descend so the pipe will be sloped 1/4 inch per foot. (If joists are 16 inches on center and pipes run across them at a right angle, holes should differ in height by about 3/8 inch.)

What is a joist hanger?

Joist Hangers, as the name suggests are designed to hold timber joists in place. They are used to anchor things like decking, floors and ceilings. Most joist hangers wrap around three sides of a wooden beam and nails or screws are put into the holes to keep it in place.

How much can you notch a 2x6?

A notch may not exceed one-sixth of the depth of the joist except at the very end where it may be one-fourth of the joist depth. The length of joist notches cannot exceed one-third of the depth of the member. Holes bored in joists must not be larger than one-third the depth of the joists.

Can I cut 40mm waste pipe through joists?

Running waste pipes through joists should be avoided where possible, as any drilling of joists (also known as notching joists) may weaken them and compromise the structural integrity. … Only insert a notch into the top edge of the joist.

What is code for Sistering floor joists?

If a crack or sag is isolated to one area, the sister joist should extend at least 3 ft. on both sides of the problem area. But it’s usually best to run the sister joist over the entire span. When the sagging joists are level, apply a generous bead of construction adhesive to the existing joist.

Can you drill a 3 inch hole in a 2x10 floor joist?

Simply following building code, you’ll only be allowed to bore a 3-5/64″ hole through a 2×10 joist. A 2×10 is actually only 9-1/4″ deep, and building codes set the maximum hole size to 1/3 the depth of the member (9-1/4″ / 3 = 3.08333″).

Which type of joist has perforated knockouts?

Nordic I-joists provide knockout holes along the length of the joists to facilitate the installation of electrical wiring or light plumbing lines.

How big of a hole can you drill in a 2x8 floor joist?

These notches can’t be deeper than one-sixth the joist’s depth, nor longer than one-third the joist’s depth. In a 2×8 joist, for example, notches can be 1 1⁄4 inches deep, which should allow for recessed gas piping.

What is the distance between floor joists?

Most often, floor joist spacing is 16 inches apart on center, but this can vary depending on building codes and the requirements of the structure in the blueprint. Floor joists help distribute the load of a structure.

What is the difference between a beam and a joist?

Joists are typically smaller beams that run across an open space, typically arranged in parallel series to support a floor or a ceiling. … While both terms are often used interchangeably, beams are the main load-bearing structural element of a roof and joists usually span between two beams.

What are the requirements for holes and notches in joists?

Joists and rafters The maximum allowable diameter of holes is one-fifth of the joist or rafter depth or 32 mm, whichever is the lesser (see Figure 1). The maximum allowable depth of notches is one fifth of the joist or rafter depth or 32 mm, whichever is less.

Can you sister joists with screws?

If that’s the case you could consider that 2 or 3 screws may equal 1 nail or use construction adhesive in conjuction with the screws. … The only reason the sistered joists don’t rest on the plates should be that it was imposible to get the full length in the space.

How do I add extra support to floor joists?

The best way to strengthen floor joists from underneath is to make a supporting mid-span beam or wall beneath the wobbling joists. Using jack posts or 6×6 posts and 2×10 or 2×8 beams perpendicular to the joists will solve any wobble and ensure your joists never move again.

Can you partially sister a joist?

If space is limited and you need to fix a sagging or damaged joist, you can partially sister a joist, ensuring you get at least 3′ from the damaged area on either end.

Can I Sister rafters?

Sister refers to attaching an additional framing member alongside an existing member. With roofs, this is done to improve the load value of rafters when installing roof-mount air conditioning equipment or cutting openings for skylights. In some cases, you may sister rafters to repair a sagging roof.
