Methane concentrations between 5% and 17% in will support ignition and are considered highly flammable. At levels above 17%, the atmosphere is too rich for the methane to ignite. To compute the LEL of any gas in air, divide the unknown concentration by the LEL listed in the NFPA Handbook.
What is the allowable LEL percentage?
Atmospheres with a concentration of flammable vapors at or above 10 percent of the lower explosive limit (LEL) are considered hazardous when located in confined spaces. However, atmospheres with flammable vapors below 10 percent of the LEL are not necessarily safe. Such atmospheres are too lean to burn.
What percentage is lower explosive limit?
Control of the explosion hazard is usually achieved by sufficient natural or mechanical ventilation, to limit the concentration of flammable gases or vapors to a maximum level of 25% of their lower explosive or flammable limit.
At what percent is natural gas explosive?
Natural gas has a flammability range of approximately 5 to 15 percent. That means that any mixture containing less than 5 percent or greater than 15 percent natural gas to air would not support combustion.What are the lower and higher explosive levels of natural gas?

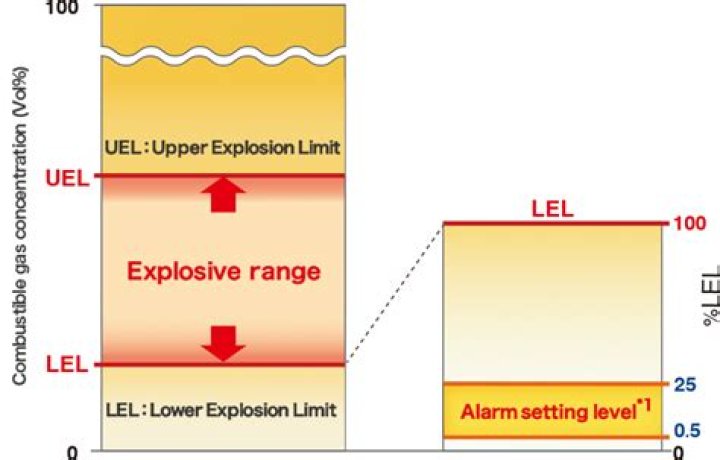

The minimum concentration of a particular gas necessary to support its combustion in air is defined as the Lower Explosive Limit (LEL). Below this level, the mixture is too “lean” to burn. The maximum concentration of a gas or vapour that will cause an explosion is defined as the Upper Explosive Limit (UEL).
What's the difference between LEL and percent by volume?
The Percent by Volume means that in a total sample of any given gases equivalent to the 100%, while percentage of a Explosive/flammable gas within that total will mean a risk. … Meaning this that the %LEL is the total needed percentage out of a 100% of a flammable gas.
What is the explosive range of propane?
Fuel Gas”Lower Explosive or Flammable Limit” (LEL/LFL) (% by volume of air)”Upper Explosive or Flammable Limit” (UEL/UFL) (% by volume of air)Piperidine110Propane2.110.1Propanoic acid2.912.1Propene211.1
How do you calculate lower explosive limit?
To compute the LEL of any gas in air, divide the unknown concentration by the LEL listed in the NFPA Handbook. 100% LEL’s for 9 of Gasco’s more common gasses are shown in the table above. For example, if you take 2.5% Methane in air and divide it by 100% LEL of methane (5%), the result is 50% LEL.What is a safe LEL level UK?
For leak detection purposes (ie not process monitoring), the first alarm level should be set as low as practicable, preferably no higher than 10% of the lower explosion limit (LEL). The second alarm level should be no more than 25% LEL.
Which gas is most flammable?1) Chlorine Trifluoride is the most flammable gas Of all the dangerous chemical gases, chlorine trifluoride is known to be the most flammable.
Article first time published onAt what percent is methane explosive?
Methane concentrations between 5% and 17% in will support ignition and are considered highly flammable. At levels above 17%, the atmosphere is too rich for the methane to ignite.
At what concentration is co explosive?
CO is a colorless, odorless, tasteless and combustible gas with a lower explosive limit (LEL) of 12.5% or 125,000 parts per million (propane has an LEL of 2.2% or 22,000 ppm).
Which is more explosive natural gas or propane?
Propane causes a higher explosive risk when it is released Unlike natural gas, propane is heavier than air so when it is released it will sink to the ground. This creates a much more dangerous explosion risk.
How many ppm is 1 LEL natural gas?
So, 1.0% LEL hydrogen = 40,000 ppm X 0.01 = 400 ppm.
What is the difference between LEL and PPM?
LEL stands for the Lower Explosive Limit of a gas. It is the minimal concentration of the gas required for the gas to ignite. It is normally expressed as a percentage of the total air. PPM stands for parts per million.
What is the lower explosive limit of hydrogen in ppm?
However, the lower explosive limit for hydrogen in air is 41,000 ppm, and 10% of this concentration is 4,100 ppm.
At what levels does oxygen become enriched?
As a result, OSHA categorizes any oxygen level that is less than 19.5% as oxygen deficient and anything greater than 23.5% as oxygen-enriched air.
Who is responsible for WELs?
WELs are British occupational exposure limits, approved and enforced by the Health and Safety Executive. They are legally binding. You can find the full list in EH40/2005 Workplace exposure limits.
What gases does a 4 gas monitor detect?
What LELs does a 4 gas monitor read? Aside from 4 gas monitors assessing the presence of main gasses which include oxygen, carbon monoxide, hydrogen sulfide, they also detect lower explosive levels (LELs) of flammable, combustible gasses.
What gases does LEL measure?
GasLELUELEthylene Oxide3.6100Gasoline1.27.1Heptane1.16.7Hexane1.27.4
How explosive is gas?
Lower and upper explosive limits For example, for methane and gasoline vapor, this range is 5-15% and 1.4-7.6% gas to air, respectively. An explosion can only occur when fuel concentration is within these limits.
Is gasoline high explosive?
Most of the risk of handling gasoline has been “engineered away” for us, to decrease the chance of accidental exposure to flames or static electricity. That is a good thing, for the vapor from just one gallon of gasoline in a 250-gallon fuel talk has as much explosive energy as 83 sticks of dynamite.
What gas is not flammable?
Inert gases are non-combustible, non-flammable, and non-reactive to many materials. Examples include argon, helium, nitrogen, and neon.
What is difference between LEL and LFL?
The concentration of a hydrocarbon gas in air below which there is insufficient amount of hydrocarbon to support and propagate combustion. Sometimes referred to as lower explosive limit (LEL). See also Upper flammable limit.
Why is natural gas so explosive?
Natural gas is 90 percent methane. It has to interact with the air for it to be combustible. The gas is only flammable when the air is filled with between 5-percent to 15-percent natural gas. … “That’s why it’s not dangerous in the pipe because there’s no air mixture with it.
Does natural gas ignite easily?
Unfortunately, while natural gas is not particularly flammable, any spark can trigger a natural gas fire because the heat in a spark can be above the 1200 degrees Fahrenheit moment and once the gas ignited, the reaction is exothermic.
What gas is heavier than air?
Vapor Density Materials heavier than air (examples: propane, hydrogen sulfide, ethane, butane, chlorine, sulfur dioxide) have vapor densities greater than 1.0. All vapors and gases will mix with air, but the lighter materials will tend to rise and dissipate (unless confined).
What is lower explosive limit LEL of LPG?
A: The lower explosive limit (LEL) of a gas or a vapour, is the lowest concentration (in air) that is needed for the gas to ignite and explode. For example, propane can explode when it reaches 2.1 per cent of the air, by volume. At 2.1%v/v, propane has reached 100% of its lower explosive level.
Which gas has lowest LEL?
The following are the lower explosive limits (LEL) of selected gasesAcetone2.5% volHexaneAcetylene2.5% volHydrogenAmmonia15.0% volIsopropyl Alcohol (Isopropanol)Benzene1.2% volMethane
